BUW2-100-DSD-SU2-A
T-Reduzierung,Stahl verzinkt,L.R.,B4
T-Reduzierung,Stahl verzinkt,L.R.,B4
999.999,00 din.
999.999,00 din.
T-Reduzierung,Stahl verzinkt,L.R.
T-Reduzierung,Stahl verzinkt,L.R.
999.999,00 din.
999.999,00 din.

BUW2-100-DSD-SU2-A

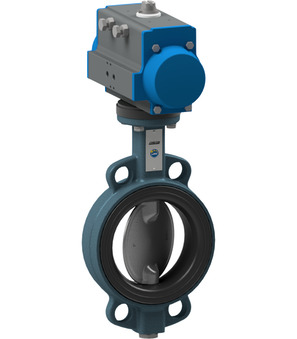

Butterfly valve with pneumatic actuator; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR DVGW-gas-approved; Nominal flange pressure PN10/16/ANSI150; Single acting actuator; Control pressure 4...8bar; Medium temperature -10...+60°C; Pressure range 0...6bar; DN 100mm; Length 52mm; Actuator PAS0853; ATEX zone 1 and 21

Intrastat No.: 84818085
Country of origin: Italy
Weight: 10.95 Kg
Short Itemnumber:BUW2100DSDSU2A
https://www.stasto.rs/web/image/product.template/133432/image_1920?unique=dd70e4f

butterfly valve with pneumatic actuator; wafer type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner NBR DVGW-gas-approved; nominal flange pressure PN10/16/ANSI150; single acting actuator; control pressure 4...8bar; medium temperature -10...+60°C; pressure range 0...6bar; DN 100mm; length 52mm; actuator PAS0853; ATEX zone 1 and 21

72.650,00 din. 72650.0 RSD 72.650,00 din.

cena na zahtev

  • Design

This combination does not exist.

Availability:
Contact Us
Design ATEX
BUW2-100-DSD-B-A x 1.0
BUW2-100-DSD-B-A
Butterfly valve with bare shaft; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR DVGW-gas-approved; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+60°C; Pressure range 0...6bar; DN 100mm; Length 52mm; ATEX zone 1 and 21
Add to Cart
Pneumatic actuator PAS0853
PAS0853 x 1.0
Pneumatic actuator PAS0853
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 4 bar 21,3Nm
