BUW2-100-DSE-S31

Name: BUW2-100-DSE-S31
Brand: STASTO
SKU: BUW2-100-DSE-S31
Price: 63215.0 RSD
Availability: InStock

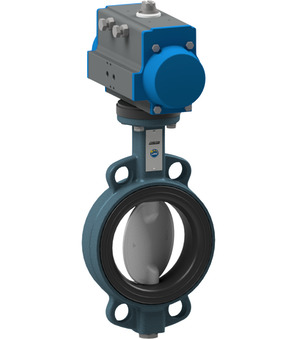

Butterfly valve with pneumatic actuator Series BUW2; Wafer type; Length According to EN558-1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+130°C; Water 0-6bar; DN 100mm; Length 52mm; Pressure range 0-6bar; Actuator PAS0755

Intrastat No.: 84818085
Country of origin: Italy
Weight: 9.54 Kg
Short Itemnumber: BUW2100DSES31

63.215,00 din. 63215.0 RSD 63.215,00 din.

This combination does not exist.

Availability:

Add to cart

No Specifications

Data sheets, Instructions, 3D-files and Certificates...

In your language

ZIP

CAD / 3D

CADSTEP_BUW2100DSES31.stp

Download

BUW2-100-DSE-B x 1.0

Butterfly valve with bare shaft BUW2-100-DSE-B

Butterfly valve with bare shaft Series BUW1-DSE-B, BUW2-DSE-B, BUW6-DSE-B, BUWC-DSE-B, BUWV-DSE-B, BUWZ-DSE-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 100mm; Length 52mm; Pressure range 0…10bar; Flange PN10/16/ANSI150

Add to Cart

PAS0755 x 1.0

Pneumatic actuator PAS0755

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 75mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 17,5Nm

Add to Cart

MFFALFUAL09733 x 1.0
