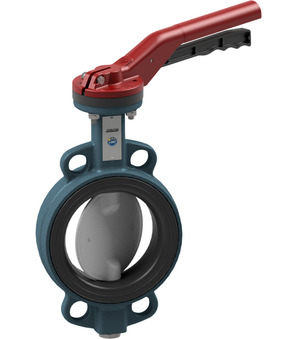

BUW2-200-DSV-L

BUW2-200-DSV-L

Butterfly valve with hand lever Series BUW2-DSV-L; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner FKM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10…+200°C; Pressure range 0...6bar; DN 200mm; Length 60mm

Intrastat No.: 84818085
Country of origin: Italy
Weight: 15.8 Kg
Short Itemnumber: BUW2200DSVL
https://www.stasto.rs/web/image/product.template/123533/image_1920?unique=41404fd

butterfly valve with hand lever series BUW2-DSV-L; wafer type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner FKM; nominal flange pressure PN10/16/ANSI150; medium temperature -10…+200°C; pressure range 0...6bar; DN 200mm; length 60mm

121.225,00 din. 121225.0 RSD 121.225,00 din.

cena na zahtev

excl. tax
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...6bar
Brand STASTO
Pressure range 0...6bar
Brand STASTO
BUW2-200-DSV-B x 1.0 Pcs
BUW2-200-DSV-B
Butterfly valve with bare shaft; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner FKM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+200°C; Pressure range 0...6bar; DN 200mm; Length 60mm
HLBU-200-A
HLBU-200-A x 1.0 Pcs
HLBU-200-A
Hand lever; Material Aluminum; Suitable for Series BUW6, BUW2, BUW4, BULG, BULC, BULA And BULY; DN 200mm
