BUW2-300-DPE-D31

Name: BUW2-300-DPE-D31
Brand: STASTO
SKU: BUW2-300-DPE-D31
Price: 138286.0 RSD
Availability: InStock

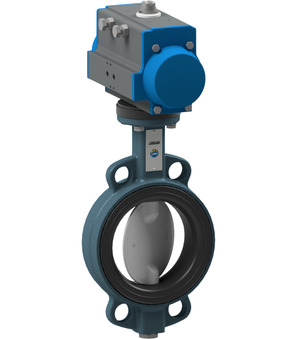

Butterfly valve with pneumatic actuator Series BUW2; Wafer type; Length According to EN558-1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc Zinc plated steel (DN50...100); Ductile iron EN-GJS-400-15 Zinc plated (>DN100); Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+130°C; Water 0-6bar; DN 300mm; Length 78mm; Pressure range 0-6bar; Actuator PAD115

Intrastat No.: 84818085
Country of origin: Italy
Weight: 41.39 Kg
Short Itemnumber: BUW2300DPED31

138.286,00 din. 138286.0 RSD 138.286,00 din.

excl. tax

This combination does not exist.

Availability:

See availability

Add to cart

Technical specifications

Pressure range	0-6bar

Specifications
Spare Parts

Pressure range

0-6bar

BUW2-300-DPE-B x 1.0 Pcs

Butterfly valve with bare shaft BUW2-300-DPE-B

Butterfly valve with bare shaft Series BUW6-DE-B, BUW1-DE-B, BUWC-DE-B, BUWZ-DE-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 300mm; Length 78mm; Disc GGG40 verzinkt; Pressure range 0…10bar; Nominal flange pressure PN10/16/ANSI150

PAD115 x 1.0 Pcs

Pneumatic actuator PAD115

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 115mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 249Nm

APKTGB0011 x 1.0 Pcs
