BUW4-065-SSTS-D22

Name: BUW4-065-SSTS-D22
Brand: STASTO
SKU: BUW4-065-SSTS-D22
Price: 999999.0 RSD
Availability: InStock

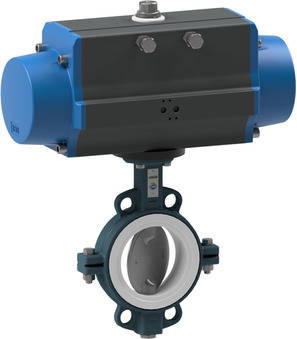

Butterfly valve with pneumatic actuator; Wafer type; Length According to EN558−1 R20; Body, Disc and shaft 1.4408; Liner PTFE/Silicone; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+190°C; Pressure range 0...10bar; DN 65mm; Length 46mm; Actuator PAD075

Intrastat No.: 84818085
Country of origin: Italy

Weight: 7.63 Kg
Short Itemnumber: BUW4065SSTSD22

butterfly valve with pneumatic actuator; wafer type; length according to EN558−1 R20; body, disc and shaft AISI 316; liner PTFE/silicone; nominal flange pressure PN10/16/ANSI150; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+190°C; pressure range 0...10bar; DN 65mm; length 46mm; actuator PAD075

999.999,00 din. 999999.0 RSD 999.999,00 din.

excl. tax

This combination does not exist.

Availability:

See availability

Add to cart

Technical specifications

Pressure range	0...10bar

Specifications
Spare Parts

Pressure range

0...10bar

BUW4-065-SSTS-B x 1.0 Pcs

BUW4-065-SSTS-B

Butterfly valve with bare shaft Series BUW4-SSTS-B; Wafer type; Length According to EN558−1 R20; Body; Disc And Shaft 1.4408; Liner PTFE/silicone; Nominal flange pressure PN10/16/ANSI150; Medium temperature -55...+200°C; Pressure range 0...10bar; DN 65mm; Length 46mm
