BUW4-150-DSE-D21

Name: BUW4-150-DSE-D21
Brand: STASTO
SKU: BUW4-150-DSE-D21
Price: 74401.0 RSD
Availability: InStock

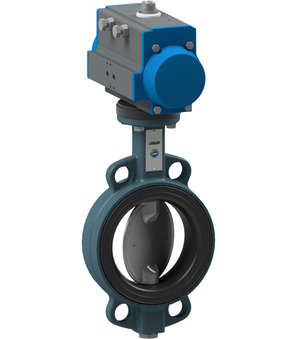

Butterfly valve with pneumatic actuator Series BUW4; Wafer type; Length According to EN558-1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+130°C; DN 150mm; Length 56mm; Pressure range 0-10bar; Medium Water; Antrieb PAD075

Intrastat No.: 84818085
Country of origin: Italy
Weight: 12.02 Kg
Short Itemnumber: BUW4150DSED21

Butterfly valve with pneumatic actuator Series BUW4; Wafer type; Length According to EN558-1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc AISI 316; Shaft AISI 430; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+130°C; DN 150mm; Length 56mm; Pressure range 0-10bar; Medium Water; Antrieb PAD075

74.401,00 din. 74401.0 RSD 74.401,00 din.

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

No Specifications

BUW2-150-DSE-B x 1.0

Butterfly valve with bare shaft BUW2-150-DSE-B

Butterfly valve with bare shaft Series BUW1-DSE-B, BUW2-DSE-B, BUW6-DSE-B, BUWC-DSE-B, BUWV-DSE-B, BUWZ-DSE-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 150mm; Length 56mm; Pressure range 0…10bar; Nominal flange pressure PN10/16/ANSI150

Add to Cart

PAD075 x 1.0

Pneumatic actuator PAD075

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 75mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 66Nm

Add to Cart

MFFALFUAL09733 x 1.0
