BUW4-200-DSTS-D23

Name: BUW4-200-DSTS-D23
Brand: STASTO
SKU: BUW4-200-DSTS-D23
Price: 321821.0 RSD
Availability: InStock

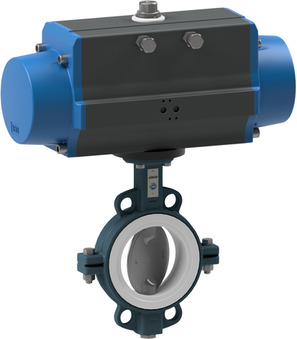

Butterfly valve with pneumatic actuator; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc And Shaft 1.4408; Liner PTFE/silicone; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+190°C; Pressure range 0...10bar; DN 200mm; Length 60mm; Actuator PAD140

Intrastat No.: 84818085
Country of origin: Italy
Weight: 32.14 Kg
Short Itemnumber: BUW4200DSTSD23

butterfly valve with pneumatic actuator; wafer type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc and shaft AISI 316; liner PTFE/silicone; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+190°C; pressure range 0...10bar; DN 200mm; length 60mm; actuator PAD140

321.821,00 din. 321821.0 RSD 321.821,00 din.

excl. tax

Brand
- STASTO

This combination does not exist.

Availability:

See availability

Add to cart

Technical specifications

Pressure range	0...10bar
Brand	STASTO

Specifications
Spare Parts

Pressure range	0...10bar
Brand	STASTO

BUW4-200-DSTS-B x 1.0 Pcs

BUW4-200-DSTS-B

Butterfly valve with bare shaft; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc And Shaft 1.4408; Liner PTFE/silicone; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+190°C; Pressure range 0...10bar; DN 200mm; Length 60mm

PAD140 x 1.0 Pcs

Pneumatic actuator PAD140

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 140mm; Flange ISO5211 F10/F12; Female square 27mm; Torque at 5,5bar 451Nm

APKTGB0050 x 1.0 Pcs
