BUW4-250-DSD-D22

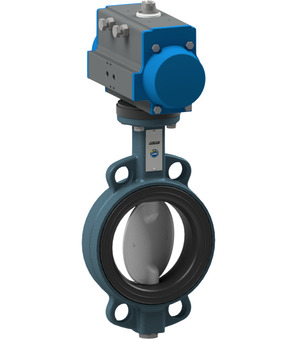

BUW4-250-DSD-D22

Butterfly valve with pneumatic actuator; Wafer type; DVGW-gas-approved; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+60°C; Pressure range 0...10bar; DN 250mm; Length 68mm; Actuator PAD140

Intrastat No.: 84818085
Country of origin: Italy Made in Europe
Weight: 38.9 Kg
Short Itemnumber: BUW4250DSDD22
https://www.stasto.rs/web/image/product.template/107425/image_1920?unique=88e0a19

butterfly valve with pneumatic actuator; wafer type; DVGW-gas-approved; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner NBR; nominal flange pressure PN10/16/ANSI150; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+60°C; pressure range 0...10bar; DN 250mm; length 68mm; actuator PAD140

217.974,00 din. 217974.0 RSD 217.974,00 din.

cena na zahtev

excl. tax

    This combination does not exist.

    Availability:
    See availability
    Contact Us

    Technical specifications

    Pressure range 0...10bar
    Documents
    Data sheets, drawings and CAD files
    Pressure range 0...10bar

    BUW4-250-DSD-D22

    Documents

    1 Documents 7 Languages

    Czech / Čeština
    ZIP

    Data Sheets

    1
    German / Deutsch
    ZIP

    Data Sheets

    1
    English
    ZIP

    Data Sheets

    1
    Hungarian / Magyar
    ZIP

    Data Sheets

    1
    Polish / Język polski
    ZIP

    Data Sheets

    1
    Slovenian / slovenščina
    ZIP

    Data Sheets

    1
    Serbian (Latin) / srpski
    ZIP

    Data Sheets

    1
    BUW4-250-DSD-B x 1.0 Pcs
    Butterfly valve with bare shaft BUW4-250-DSD-B
    Butterfly valve with bare shaft Series BUW6-DSD-B, BUW4-DSD-B; Wafer type; DVGW-gas-approved;Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+60°C; DN 250mm; Length 68mm; Pressure range 0...10bar
    Pneumatic actuator PAD140
    PAD140 x 1.0 Pcs
    Pneumatic actuator PAD140
    Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 140mm; Flange ISO5211 F10/F12; Female square 27mm; Torque at 5,5bar 451Nm
    APKTGB0052 x 1.0 Pcs
    APKTGB0052
    Mounting bracket For butterfly valve; DN250-300 - F10/F07-22/27mm
    Accessory Products
    EB0X01
    EB0X01
    Material of case
    Plastic
    Brand
    STASTO
    EB0X02
    EB0X02
    Material of case
    Plastic
    Brand
    STASTO
    EB0X04YA
    EB0X04YA
    Material of case
    Aluminum
    Brand
    STASTO
    EB0X04YA-ULCSA-01
    EB0X04YA-ULCSA-01
    Material of case
    Aluminum
    Brand
    STASTO
    EB0X05
    EB0X05
    Design
    ATEX
    Material of case
    Plastic
    Brand
    STASTO
    RI4610
    RI4610
    Diameter
    140 mm
    RI4624
    RI4624
    Diameter
    140 mm
    RI4652
    RI4652
    Diameter
    140 mm
