BUW4-250-DSD-S22-A

Name: BUW4-250-DSD-S22-A
Brand: STASTO
SKU: BUW4-250-DSD-S22-A
Price: 388490.0 RSD
Availability: InStock

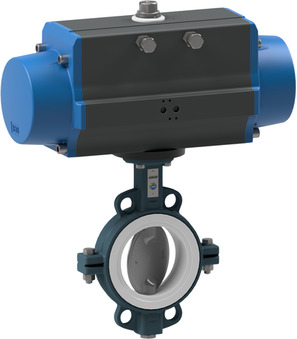

Butterfly valve with pneumatic actuator; Wafer type; DVGW-gas-approved; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+60°C; Pressure range 0...10bar; DN 250mm; Length 68mm; Actuator PAS2005; ATEX

Intrastat No.: 84818085
Country of origin: Italy
Weight: 79.88 Kg
Short Itemnumber: BUW4250DSDS22A

butterfly valve with pneumatic actuator; wafer type; DVGW-gas-approved; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner NBR; nominal flange pressure PN10/16/ANSI150; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+60°C; pressure range 0...10bar; DN 250mm; length 68mm; actuator PAS2005; ATEX
