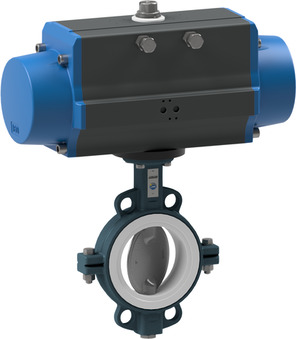

BUW4-400-DSD-S32-A
Butterfly valve with pneumatic actuator; Wafer type; DVGW-gas-approved; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+60°C; Pressure range 0...6bar; DN 400mm; Length 102mm; Actuator PAS2707; ATEX-design
Country of origin: Italy
Weight: 185.3 Kg
Short Itemnumber: BUW4400DSDS32A
butterfly valve with pneumatic actuator; wafer type; DVGW-gas-approved; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner NBR; nominal flange pressure PN10/16/ANSI150; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+60°C; pressure range 0...6bar; DN 400mm; length 102mm; actuator PAS2707; ATEX-design
| Design | ATEX |
