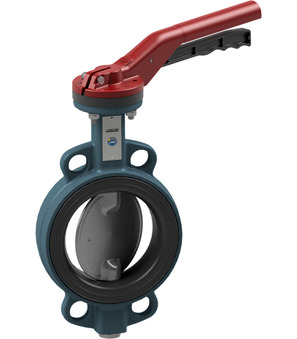

BUW6-050-DSE-X-A
Butterfly valve with hand lever Series BUW6-DSE-X; ATEX II 2 G/D Ex h X; Hand lever Stainless steel; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc AISI 316; Shaft AISI 430; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...16bar; DN 50mm; Length 43mm
Intrastat No.: 84818085
Country of origin: Italy
Weight: 4.6 Kg
Short Itemnumber: BUW6050DSEXA
Country of origin: Italy
Weight: 4.6 Kg
Short Itemnumber: BUW6050DSEXA
Butterfly valve with hand lever Series BUW6-DSE-X; ATEX II 2 G/D Ex h X; Hand lever Stainless steel; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc AISI 316; Shaft AISI 430; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...16bar; DN 50mm; Length 43mm
| dimension | |
|---|---|
| DN | 50 mm |
| Length | 43 mm |
| design | |
| Design | ATEX |
| pressure | |
| Pressure range | 0...16 bar |
No spare parts are available for this product.
