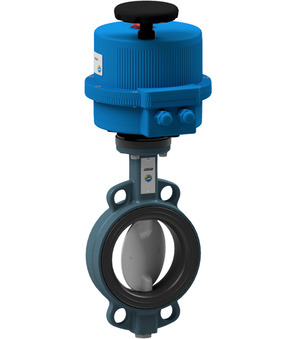

Butterfly valve with electrical actuator BUW6-050-DUE-0G2

Butterfly valve with electrical actuator BUW6-050-DUE-0G2

Butterfly valve with electrical actuator Series BUW6-DE-02; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 50mm; Length 43mm; Disc Stahl verzinkt; Operating time 9s; Voltage 100-240VAC

Intrastat No.: 84818085
Country of origin: Italy Made in Europe
Weight: 6.17 Kg
Short Itemnumber: BUW6050DUE0G2
https://www.stasto.rs/web/image/product.template/88219/image_1920?unique=fcc32fd

Butterfly valve with electrical actuator Series BUW6-DE-02; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 50mm; Length 43mm; Disc Stahl verzinkt; Operating time 9s; Voltage 100-240VAC

93.295,00 din. 93295.0 RSD 93.295,00 din.

cena na zahtev

excl. tax
  • DN
  • Length
  • Voltage
  • Disc
  • Actuator
  • Operating time
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...10bar
DN 50 mm
Length 43 mm
Disc Zinc plated steel
All specifications (7)
Documents
Data sheets, drawings and CAD files
Pressure range 0...10bar
DN 50 mm
Length 43 mm
Disc Zinc plated steel
Operating time 9 s
Voltage 100-240VAC
Brand STASTO

BUW6-050-DUE-0G2

Documents

3 Documents 7 Languages

Czech / Čeština
ZIP

Assembly and Operating Instructions

1

Declarations of Conformity

1

CAD / 3D

1
German / Deutsch
ZIP

Assembly and Operating Instructions

1

Declarations of Conformity

1

CAD / 3D

1
English
ZIP

Assembly and Operating Instructions

1

Declarations of Conformity

1

CAD / 3D

1
Hungarian / Magyar
ZIP

Assembly and Operating Instructions

1

Declarations of Conformity

1

CAD / 3D

1
Polish / Język polski
ZIP

Assembly and Operating Instructions

1

Declarations of Conformity

1

CAD / 3D

1
Slovenian / slovenščina
ZIP

Assembly and Operating Instructions

1

Declarations of Conformity

1

CAD / 3D

1
Serbian (Latin) / srpski
ZIP

Assembly and Operating Instructions

1

Declarations of Conformity

1

CAD / 3D

1
BUW6-050-DUE-B x 1.0 Pcs
Butterfly valve with bare shaft BUW6-050-DUE-B
Butterfly valve with bare shaft Series BUW6-DE-B, BUW1-DE-B, BUWC-DE-B, BUWZ-DE-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 50mm; Length 43mm; Disc Stahl verzinkt; Pressure range 0…16bar; Flange PN10/16/ANSI150
Electrical actuator VB060-H
VB060-H x 1.0 Pcs
Electrical actuator VB060-H
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 60Nm; Operating time 9s; Flange ISO5211 F05/F07-Stern 14 mm; Voltage 100-240VAC; Protection class IP67
MFFALFUAL09733 x 1.0 Pcs
MFFALFUAL09733
Adapter For butterfly valve DN40-DN150; F07/F07
