BUW6-065-DSV-S12-A

Name: BUW6-065-DSV-S12-A
Brand: STASTO
SKU: BUW6-065-DSV-S12-A
Price: 88642.0 RSD
Availability: InStock

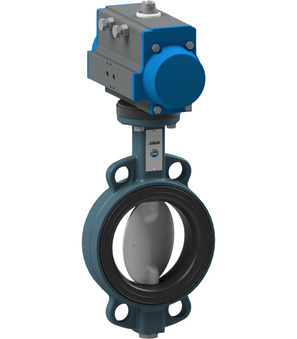

Butterfly valve with pneumatic actuator; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner FKM; Nominal flange pressure PN10/16/ANSI150; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+200°C; Pressure range 0...16bar; DN 65mm; Length 46mm; Actuator PAS1005; ATEX Ex II 2GD c TX

Intrastat No.: 84818085
Country of origin: Italy
Weight: 12.8 Kg
Short Itemnumber: BUW6065DSVS12A

butterfly valve with pneumatic actuator; wafer type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner FKM; nominal flange pressure PN10/16/ANSI150; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+200°C; pressure range 0...16bar; DN 65mm; length 46mm; actuator PAS1005; ATEX Ex II 2GD c TX

88.642,00 din. 88642.0 RSD 88.642,00 din.

Design
- ATEX

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

Design

ATEX

BUW6-065-DSV-B-A x 1.0

BUW6-065-DSV-B-A

Butterfly valve with bare shaft; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner FKM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+200°C; Pressure range 0...16bar; DN 65mm; Length 46mm; ATEX Ex II 2GD c TX

Add to Cart

PAS1005 x 1.0

Pneumatic actuator PAS1005

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 100mm; Flange ISO5211 F07/F10; Female square 17mm; Torque at 5,5bar 42,3Nm

Add to Cart

MFFALFUAL09733 x 1.0
