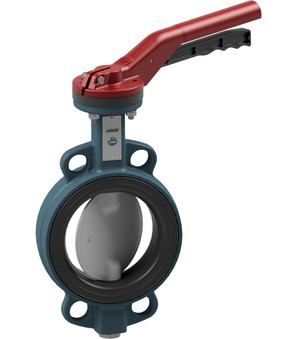

Butterfly valve with hand lever BUW6-080-DSV-L

Butterfly valve with hand lever BUW6-080-DSV-L

Butterfly valve with hand lever Series BUW6-DSV-L; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner FKM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+200°C; Pressure range 0...16bar; DN 80mm; Length 46mm

Intrastat No.: 84818085
Country of origin: Italy Made in Europe
Weight: 4.35 Kg
Short Itemnumber: BUW6080DSVL

Scope of delivery

butterfly valve with hand lever made of aluminum, 10 positions
https://www.stasto.rs/web/image/product.template/88832/image_1920?unique=406472e

Butterfly valve with hand lever Series BUW6-DSV-L; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner FKM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+200°C; Pressure range 0...16bar; DN 80mm; Length 46mm

40.820,00 din. 40820.0 RSD 40.820,00 din.

cena na zahtev

excl. tax
  • DN
  • Length

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...16bar
DN 80 mm
Length 46 mm
Documents
Data sheets, drawings and CAD files
Pressure range 0...16bar
DN 80 mm
Length 46 mm

BUW6-080-DSV-L

Documents

1 Documents

Language-independent
ZIP

CAD / 3D

1
BUW6-080-DSV-B x 1.0 Pcs
Butterfly valve with bare shaft BUW6-080-DSV-B
Butterfly valve with bare shaft Series BUW6-DSV-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner FKM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+200°C; Pressure range 0...16bar; DN 80mm; Length 46mm
HLBU-040100-A
HLBU-040100-A x 1.0 Pcs
HLBU-040100-A
Hand lever; Material Aluminum; Suitable for Series BUW6, BUW2, BUW4, BULG And BULC; DN 40;50;65;80;100mm
