BUW6-150-DPN-L-3C
C-WEE08ZL7/16UNF
C-WEE08ZL7/16UNF
999.999,00 din.
999.999,00 din.
C-GAI22ZLM26X1,5
C-GAI22ZLM26X1,5
999.999,00 din.
999.999,00 din.

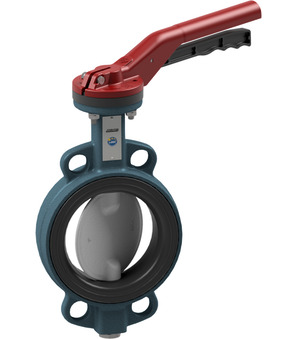

BUW6-150-DPN-L-3C

Butterfly valve with hand lever; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+100°C; Pressure range 0...16bar; DN 150mm; Length 56mm; Disc Zinc plated ductile iron EN-GJS-400-15; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness

Intrastat No.: 84818085
Country of origin: Italy
Weight: 9.75 Kg
Short Itemnumber:BUW6150DPNL3C
https://www.stasto.rs/web/image/product.template/156208/image_1920?unique=8e5ee40

butterfly valve with hand lever; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; shaft AISI 430; liner NBR; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+100°C; pressure range 0...16bar; DN 150mm; length 56mm; disc zinc plated ductile iron EN-GJS-400-15; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness

26.131,00 din. 26131.0 RSD 26.131,00 din.

cena na zahtev

    This combination does not exist.

    Availability:
    Contact Us
    No Specifications
    BUW6-150-DPN-B-3C x 1.0
    Butterfly valve with bare shaft BUW6-150-DPN-B-3C
    Butterfly valve with bare shaft Series BUW6-DN-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+100°C; Pressure range 0...16bar; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness; DN 150mm; Length 56mm; Disc GGG40 verzinkt
    Add to Cart
    HLBU-125150-A
    HLBU-125150-A x 1.0
    HLBU-125150-A
    Hand lever; Material Aluminum; Suitable for Series BUW6, BUW2, BUW4, BULG And BULC; DN 125;150mm
    Add to Cart
    ​
