BUW6-150-DSE-L-A

BUW6-150-DSE-L-A

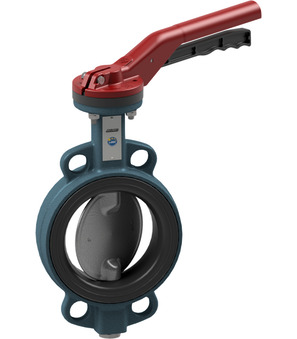

Butterfly valve with hand lever Series BUW6-DSE-L; ATEX II 2 G/D Ex h; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...16bar; DN 150mm; Length 56mm

Intrastat No.: 84818085
Country of origin: Italy Made in Europe
Weight: 8.75 Kg
Short Itemnumber: BUW6150DSELA
https://www.stasto.rs/web/image/product.template/176172/image_1920?unique=baeb489

butterfly valve with hand lever series BUW6-DSE-L; ATEX II 2 G/D Ex h; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+130°C; pressure range 0...16bar; DN 150mm; length 56mm

39.198,00 din. 39198.0 RSD 39.198,00 din.

cena na zahtev

excl. tax
  • DN
  • Length
  • Design
  • Pressure range
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...16 bar
DN 150 mm
Length 56 mm
Design ATEX
All specifications (5)
Pressure range 0...16 bar
DN 150 mm
Length 56 mm
Design ATEX
Brand STASTO
HLBU-125150-A
HLBU-125150-A x 1.0 Pcs
HLBU-125150-A
Hand lever; Material Aluminum; Suitable for Series BUW6, BUW2, BUW4, BULG And BULC; DN 125;150mm
BUW6-150-DSE-B x 1.0 Pcs
Butterfly valve with bare shaft BUW6-150-DSE-B
Butterfly valve with bare shaft Series BUW1-DSE-B, BUW2-DSE-B, BUW6-DSE-B, BUWC-DSE-B, BUWV-DSE-B, BUWZ-DSE-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 150mm; Length 56mm; Pressure range 0…16bar; Flange PN10/16/ANSI150
