BUW6-150-DSE-S22-A3C

Name: BUW6-150-DSE-S22-A3C
Brand: STASTO
SKU: BUW6-150-DSE-S22-A3C
Price: 216764.0 RSD
Availability: InStock

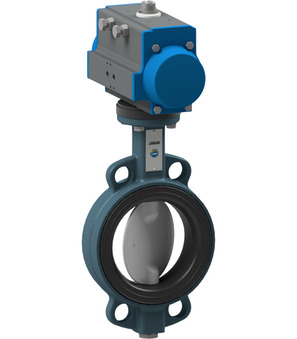

Butterfly valve with pneumatic actuator Series BUW6-DSE-S22-A3C; ATEX Ex II 2GD c TX; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 150mm; Length 56mm; Actuator PAS1605; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness

Intrastat No.: 84818085
Country of origin: Italy
Weight: 38.42 Kg
Short Itemnumber: BUW6150DSES22A3C

butterfly valve with pneumatic actuator series BUW6-DSE-S22-A3C; ATEX Ex II 2GD c TX; wafer type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; nominal flange pressure PN10/16/ANSI150; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+130°C; pressure range 0...10bar; DN 150mm; length 56mm; actuator PAS1605; incl. inspection certificate EN-10204-3.1; for material, pressure, function and tightness

216.764,00 din. 216764.0 RSD 216.764,00 din.

Design
- ATEX

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

Design

ATEX

BUW6-150-DSE-B-A3C x 1.0

Butterfly valve with bare shaft BUW6-150-DSE-B-A3C

Butterfly valve with bare shaft Series BUW6-DSE-B-A3C; ATEX Ex II 2 G/D Ex h; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 150mm; Length 56mm; Pressure range 0…16bar; Flange PN10/16/ANSI150; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness

Add to Cart

PAS1605 x 1.0

Pneumatic actuator PAS1605

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 160mm; Flange ISO5211 F10/F12; Female square 27mm; Torque at 5,5bar 202Nm

Add to Cart

APKTGB0051 x 1.0
