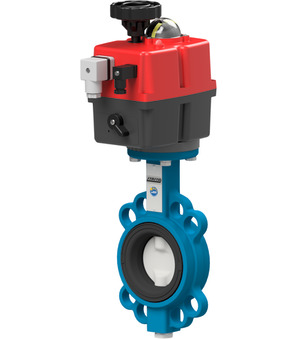

Butterfly valve with electrical actuator BUW6-200-DSE-01K1
Butterfly valve with electrical actuator Series BUW6-DSE-01; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...16bar; DN 200mm; Length 60mm; Operating time 58s; Voltage 24...240VAC / 24...135VDC
Intrastat No.: 84818085
Country of origin: Spain
Weight: 19.9 Kg
Short Itemnumber: BUW6200DSE01K1
Country of origin: Spain
Weight: 19.9 Kg
Short Itemnumber: BUW6200DSE01K1
butterfly valve with electrical actuator series BUW6-DSE-01; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+130°C; pressure range 0...16bar; DN 200mm; length 60mm; operating time 58s; voltage 24...240VAC / 24...135VDC
