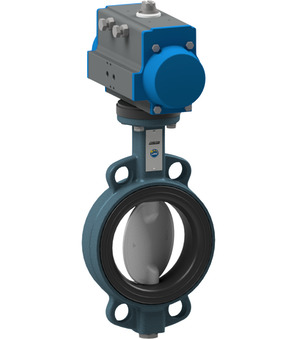

BUW6-200-DSE-SR2-A

Name: BUW6-200-DSE-SR2-A
Brand: STASTO
SKU: BUW6-200-DSE-SR2-A
Price: 356424.0 RSD
Availability: InStock

Butterfly valve with pneumatic actuator; ATEX II 2 G/D Ex h; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Single acting actuator; ATEX II 2G Ex h IIC T6 Gb / II 2D Ex h IIIC T85°C Db; Control pressure 4...8bar; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 200mm; Length 60mm; Actuator PAS2004; ATEX zone 1 and 21

Intrastat No.: 84818085
Country of origin: Italy
Weight: 71.9 Kg
Short Itemnumber: BUW6200DSESR2A

butterfly valve with pneumatic actuator; ATEX II 2 G/D Ex h; wafer type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; nominal flange pressure PN10/16/ANSI150; single acting actuator; ATEX II 2G Ex h IIC T6 Gb / II 2D Ex h IIIC T85°C Db; control pressure 4...8bar; medium temperature -10...+130°C; pressure range 0...10bar; DN 200mm; length 60mm; actuator PAS2004; ATEX zone 1 and 21

356.424,00 din. 356424.0 RSD 356.424,00 din.

Design
- ATEX

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

Design

ATEX

BUW6-200-DSE-B-A x 1.0

Butterfly valve with bare shaft BUW6-200-DSE-B-A

Butterfly valve with bare shaft Series BUW6-DE-B-A; ATEX II 2 G/D Ex h; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...16bar; DN 200mm; Length 60mm; Disc 1.4408

Add to Cart

PAS2004 x 1.0

Pneumatic actuator PAS2004

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 200mm; Flange ISO5211 F14; Female square 36mm; Torque at 5,5bar 338Nm

Add to Cart

APKT001000 x 1.0
