BUW6-200-DSN-D22-A

Name: BUW6-200-DSN-D22-A
Brand: STASTO
SKU: BUW6-200-DSN-D22-A
Price: 136594.0 RSD
Availability: InStock

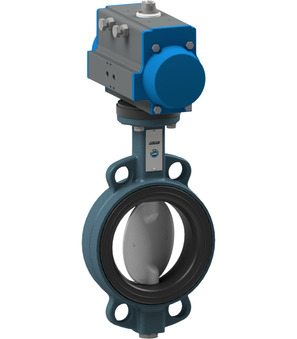

Butterfly valve with pneumatic actuator; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C; Pressure range 0...10bar; DN 200mm; Length 60mm; Actuator PAD125; ATEX Ex II 2GD c TX

Intrastat No.: 84818085
Country of origin: Italy
Weight: 25.38 Kg
Short Itemnumber: BUW6200DSND22A

butterfly valve with pneumatic actuator; wafer type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner NBR; nominal flange pressure PN10/16/ANSI150; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+100°C; pressure range 0...10bar; DN 200mm; length 60mm; actuator PAD125; ATEX Ex II 2GD c TX

136.594,00 din. 136594.0 RSD 136.594,00 din.

Design
- ATEX

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

Design

ATEX

BUW6-200-DSN-B-A x 1.0

BUW6-200-DSN-B-A

Butterfly valve with bare shaft Series BUW6-DSN-B-A; ATEX Ex II 2GD c TX; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Medium temperature -10...+100°C; DN 200mm; Length 60mm; Pressure range 0...16bar; Nominal flange pressure PN10/16/ANSI150

Add to Cart

PAD125 x 1.0

Pneumatic actuator PAD125

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 125mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 327Nm

Add to Cart

APKTGB0049 x 1.0
