BUW6-200-DSW-D22-A

Name: BUW6-200-DSW-D22-A
Brand: STASTO
SKU: BUW6-200-DSW-D22-A
Price: 153361.0 RSD
Availability: InStock

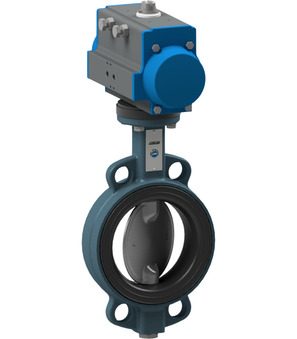

Butterfly valve with pneumatic actuator; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM-White; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 200mm; Length 60mm; Actuator PAD125; ATEX zone 1 and 21

Intrastat No.: 84818085
Country of origin: Italy
Weight: 25.38 Kg
Short Itemnumber: BUW6200DSWD22A

butterfly valve with pneumatic actuator; wafer type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM-white; nominal flange pressure PN10/16/ANSI150; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+130°C; pressure range 0...10bar; DN 200mm; length 60mm; actuator PAD125; ATEX zone 1 and 21
