BUW6-250-DPE-0T2

BUW6-250-DPE-0T2

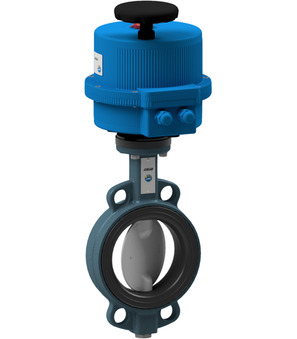

Butterfly valve with electrical actuator Series BUW6-DPE-02; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...6bar; DN 250mm; Length 68mm; Disc Zinc plated ductile iron EN-GJS-400-15; Operating time 50s; Voltage 100-240VAC

Intrastat No.: 84818085
Country of origin: Italy
Weight: 28.39 Kg
Short Itemnumber: BUW6250DPE0T2
https://www.stasto.rs/web/image/product.template/130685/image_1920?unique=24fee4a

butterfly valve with electrical actuator series BUW6-DPE-02; wafer type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; shaft AISI 430; liner EPDM; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+130°C; pressure range 0...6bar; DN 250mm; length 68mm; disc zinc plated ductile iron EN-GJS-400-15; operating time 50s; voltage 100-240VAC

176.932,00 din. 176932.0 RSD 176.932,00 din.

cena na zahtev

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    BUW6-250-DPE-B x 1.0
    Butterfly valve with bare shaft BUW6-250-DPE-B
    Butterfly valve with bare shaft Series BUW6-DE-B, BUW1-DE-B, BUWC-DE-B, BUWZ-DE-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 250mm; Length 68mm; Disc GGG40 verzinkt; Pressure range 0…16bar; Flange PN10/16/ANSI150
    Add to Cart
    Electrical actuator VB350-H
    VB350-H x 1.0
    Electrical actuator VB350-H
    Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 350Nm; Operating time 50s; Flange ISO5211 F07/F10-Stern 22 mm; Voltage 100-240VAC; Protection class IP67
