Butterfly valve with hand lever BUW6-250-DPN-L-A
Butterfly valve with hand lever BUW6-150-DPN-L-A
Butterfly valve with hand lever BUW6-150-DPN-L-A
999.999,00 din.
999.999,00 din.
Knife gate valve with handwheel A1V1H1-B-100-PIB
Knife gate valve with handwheel A1V1H1-B-100-PIB
999.999,00 din.
999.999,00 din.

Butterfly valve with hand lever BUW6-250-DPN-L-A

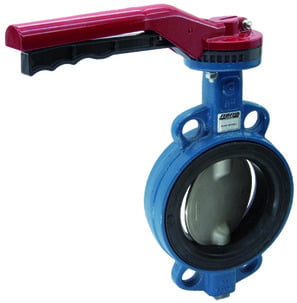

Butterfly valve with hand lever Series BUW6-DN-L-A; ATEX II 2 G/D Ex h X; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+100°C; Pressure range 0...16bar; DN 250mm; Length 68mm; Disc GGG40 verzinkt

Intrastat No.: 84818085
Country of origin: Italy
Weight: 22.71 Kg
Short Itemnumber:BUW6250DPNLA
https://www.stasto.rs/web/image/product.template/136366/image_1920?unique=89f044f

butterfly valve with hand lever series BUW6-DN-L-A; ATEX II 2 G/D Ex h X; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; shaft AISI 430; liner NBR; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+100°C; pressure range 0...16bar; DN 250mm; length 68mm; disc GGG40 verzinkt

999.999,00 din. 999999.0 RSD 999.999,00 din.

cena na zahtev

  • DN
  • Length
  • Design
  • Disc

This combination does not exist.

Availability:
Contact Us
dimension
DN 250 mm
Length 68 mm
design
Design ATEX
materials
Disc GGG40 Zinc plated
Butterfly valve with hand lever BUW6-250-DPN-L
BUW6-250-DPN-L x 1.0
Butterfly valve with hand lever BUW6-250-DPN-L
Butterfly valve with hand lever Series BUW6-DN-L; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+100°C; Pressure range 0...16bar; DN 250mm; Length 68mm; Disc GGG40 verzinkt
