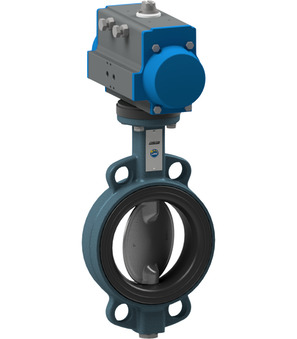

Butterfly valve with pneumatic actuator BUW6-250-DSE-D22

Butterfly valve with pneumatic actuator BUW6-250-DSE-D22

Butterfly valve with pneumatic actuator Series BUW6-DSE-D2; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 250mm; Length 68mm; Actuator PAD140

Absperrklappe mit Druckluftdrehantrieb Serie BUW6-DSE-D2
Absperrklappe mit Druckluftdrehantrieb Serie BUW6-DSE-D2
Absperrklappe mit Druckluftdrehantrieb Serie BUW6-DSE-D2
Intrastat No.: 84818085
Country of origin: Italy Made in Europe
Weight: 38.9 Kg
Short Itemnumber: BUW6250DSED22
https://www.stasto.rs/web/image/product.template/88445/image_1920?unique=06e4003

Butterfly valve with pneumatic actuator Series BUW6-DSE-D2; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 250mm; Length 68mm; Actuator PAD140

197.012,00 din. 197012.0 RSD 197.012,00 din.

cena na zahtev

excl. tax
  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • DN
  • Length
  • Function
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Pressure range
  • Contact material
  • Material of case
  • Coil
  • Actuator
  • Actuator 2
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...10 bar
DN 250 mm
Length 68 mm
Brand STASTO
Documents
Data sheets, drawings and CAD files
Pressure range 0...10 bar
DN 250 mm
Length 68 mm
Brand STASTO

BUW6-250-DSE-D22

Documents

3 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1

Assembly and Operating Instructions

1

Declarations of Conformity

1
Danish / Dansk
ZIP

Data Sheets

1
German / Deutsch
ZIP

Data Sheets

1

Assembly and Operating Instructions

1

Declarations of Conformity

1
Greek / Ελληνικά
ZIP

Data Sheets

1
English
ZIP

Data Sheets

1

Assembly and Operating Instructions

1

Declarations of Conformity

1
Spanish / Español
ZIP

Data Sheets

1
Finnish / Suomi
ZIP

Data Sheets

1
French / Français
ZIP

Data Sheets

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1
Hungarian / Magyar
ZIP

Data Sheets

1

Assembly and Operating Instructions

1

Declarations of Conformity

1
Italian / Italiano
ZIP

Data Sheets

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1
Dutch / Nederlands
ZIP

Data Sheets

1
Polish / Język polski
ZIP

Data Sheets

1

Assembly and Operating Instructions

1

Declarations of Conformity

1
Romanian / română
ZIP

Data Sheets

1
Slovenian / slovenščina
ZIP

Data Sheets

1

Assembly and Operating Instructions

1

Declarations of Conformity

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1

Assembly and Operating Instructions

1

Declarations of Conformity

1
Swedish / Svenska
ZIP

Data Sheets

1
BUW6-250-DSE-B x 1.0 Pcs
Butterfly valve with bare shaft BUW6-250-DSE-B
Butterfly valve with bare shaft Series BUW1-DSE-B, BUW2-DSE-B, BUW6-DSE-B, BUWC-DSE-B, BUWV-DSE-B, BUWZ-DSE-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 250mm; Length 68mm; Pressure range 0…16bar; Flange PN10/16/ANSI150
Pneumatic actuator PAD140
PAD140 x 1.0 Pcs
Pneumatic actuator PAD140
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 140mm; Flange ISO5211 F10/F12; Female square 27mm; Torque at 5,5bar 451Nm
APKTGB0052 x 1.0 Pcs
APKTGB0052
Mounting bracket For butterfly valve; DN250-300 - F10/F07-22/27mm
