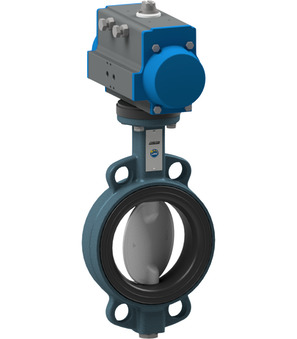

Butterfly valve with pneumatic actuator BUW6-250-DSP1-D22

Name: Butterfly valve with pneumatic actuator BUW6-250-DSP1-D22
Brand: STASTO
SKU: BUW6-250-DSP1-D22
Price: 255339.0 RSD
Availability: InStock

Butterfly valve with pneumatic actuator Series BUW6-DSP1-D2; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner Polyurethane; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+90°C; Pressure range 0...10bar; DN 250mm; Length 68mm; Actuator PAD140

Intrastat No.: 84818085
Country of origin: Italy

Weight: 38.9 Kg
Short Itemnumber: BUW6250DSP1D22

butterfly valve with pneumatic actuator series BUW6-DSP1-D2; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner polyurethane; nominal flange pressure PN10/16/ANSI150; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+90°C; pressure range 0...10bar; DN 250mm; length 68mm; actuator PAD140

255.339,00 din. 255339.0 RSD 255.339,00 din.

excl. tax

DN
- 250 mm
Length
- 68 mm
Actuator
- PAD140

This combination does not exist.

Availability:

See availability

Add to cart

Technical specifications

Pressure range	0...10bar
DN	250 mm
Length	68 mm

Specifications
Spare Parts

Pressure range	0...10bar
DN	250 mm
Length	68 mm

BUW6-250-DSP1-B x 1.0 Pcs

Butterfly valve with bare shaft BUW6-250-DSP1-B

Butterfly valve with bare shaft Series BUW6-DSP1-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner Polyurethane; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+90°C; Pressure range 0...16bar; DN 250mm; Length 68mm

PAD140 x 1.0 Pcs

Pneumatic actuator PAD140

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 140mm; Flange ISO5211 F10/F12; Female square 27mm; Torque at 5,5bar 451Nm

APKTGB0052 x 1.0 Pcs
