BUW6-300-CSN-L-3C
BUW6-300-CSN-L
BUW6-300-CSN-L
195.414,00 din.
195.414,00 din.
C-K12ZL
C-K12ZL
999.999,00 din.
999.999,00 din.

BUW6-300-CSN-L-3C

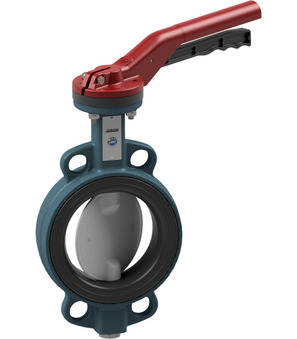

Butterfly valve with hand lever Series BUW6-CSN-L-3C; Wafer type; Length According to EN558−1 R20; Body Carbon steel A216-WCB Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+100°C; Pressure range 0...16bar; DN 300mm; Length 78mm; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness

Intrastat No.: 84818085
Country of origin: Italy
Weight: 32.71 Kg
Short Itemnumber:BUW6300CSNL3C
https://www.stasto.rs/web/image/product.template/154578/image_1920?unique=338cefc

butterfly valve with hand lever series BUW6-CSN-L-3C; wafer type; length according to EN558−1 R20; body carbon steel A216-WCB epoxy coated; disc AISI 316; shaft AISI 430; liner NBR; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+100°C; pressure range 0...16bar; DN 300mm; length 78mm; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness

195.414,00 din. 195414.0 RSD 195.414,00 din.

cena na zahtev

    This combination does not exist.

    Availability:
    Contact Us
    No Specifications
    BUW6-300-CSN-B-3C x 1.0
    Butterfly valve with bare shaft BUW6-300-CSN-B-3C
    Butterfly valve with bare shaft Series BUW6-CSN-B-3C; Wafer type; Length According to EN558−1R20; Body Carbon steel A216-WCB Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+100°C; Pressure range 0...16bar; DN 300mm; Length 78mm; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness
    Add to Cart
    HLBU-250300-A
    HLBU-250300-A x 1.0
    HLBU-250300-A
    Hand lever; Material Aluminum; Suitable for Series BUW6, BUW2, BUW4, BULG And BULC; DN 250;300mm
    Add to Cart
    ​
