BUW6-300-DSV-T22-A3C01

BUW6-300-DSV-T22-A3C01

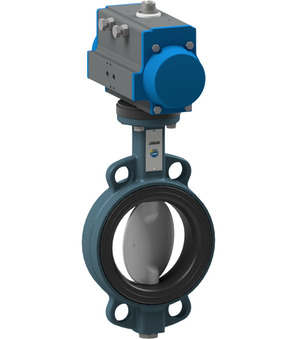

Butterfly valve with pneumatic actuator; Wafer type; ATEX - II 2GD Ex h X EPT 14; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner FKM; Nominal flange pressure PN10/16/ANSI150; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+200°C; Pressure range 0...10bar; DN 300mm; Length 78mm; Actuator PAS2305-B; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness; Oil and grease-free finish; Safety position NO

Intrastat No.: 84818085
Country of origin: Italy
Short Itemnumber: BUW6300DSVT22A3C01
https://www.stasto.rs/web/image/product.template/181530/image_1920?unique=f96ddcc

butterfly valve with pneumatic actuator; wafer type; ATEX - II 2GD Ex h X EPT 14; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner FKM; nominal flange pressure PN10/16/ANSI150; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+200°C; pressure range 0...10bar; DN 300mm; length 78mm; actuator PAS2305-B; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness; Oil and grease-free finish; safety position NO

999.999,00 din. 999999.0 RSD 999.999,00 din.

cena na zahtev

  • Design

This combination does not exist.

Availability:
Contact Us

Share

Design ATEX
BUW6-300-DSV-B-A3C01 x 1.0
Butterfly valve with bare shaft BUW6-300-DSV-B-A3C01
butterfly valve with bare shaft; wafer type; ATEX - II 2GD Ex h X EPT 14; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner FKM; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+200°C; pressure range 0...16bar; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness; DN 300mm; length 78mm; Oil and grease-free finish
Add to Cart
Pneumatic actuator PAS2305-B
PAS2305-B x 1.0
Pneumatic actuator PAS2305-B
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Pinion turned by 90°; Diameter 230mm; Flange ISO5211 F16; Female square 46mm; Torque at 5,5bar 661Nm
Add to Cart
APKTGB0014 x 1.0
APKTGB0014
Mounting bracket For butterfly valve; F10-Square 22; Actuator F16-Square 46
