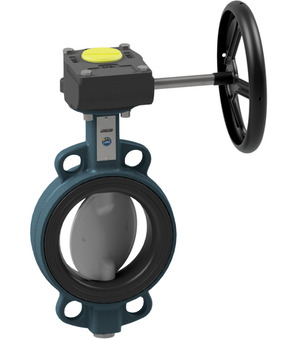

Butterfly valve with manual gear box BUW6-400-DPE-G

Butterfly valve with manual gear box BUW6-400-DPE-G

Butterfly valve with manual gear box Series BUW6-DPE-G; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc Ductile iron EN-GJS-400-15 Zinc plated; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...16bar; DN 400mm; Length 102mm

Intrastat No.: 84818085
Country of origin: Italy
Weight: 92.022 Kg
Short Itemnumber:BUW6400DPEG

Butterfly valve with manual gear box Series BUW6-DPE-G; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc Ductile iron EN-GJS-400-15 Zinc plated; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...16bar; DN 400mm; Length 102mm

239.242,00 din. 239242.0 RSD 239.242,00 din.

DN
- 400 mm
Length
- 102 mm
Pressure range
- 0...16 bar

This combination does not exist.

Availability:

Add to Cart

dimension
DN	400 mm
Length	102 mm
pressure
Pressure range	0...16 bar

Data sheets, Instructions, 3D-files and Certificates...

In your language

Assembly and Operating Instructions

2

Assembly instruction_Butterfly valve with manual gear box Series BUW6-DPE-G_EN.pdf

Data sheet_Butterfly valve with manual gear box Series BUW6-DPE-G_EN.pdf

Declarations of Conformity

1

Declaration of conformity_Butterfly valve with manual gear box Series BUW6-DPE-G_EN.pdf

CAD / 3D

1

CADSTEP_BUW6400DPEG.stp

Datové listy

1

Datový list_uzavírací klapka s ruční převodovkou série BUW6-DPE-G_CS.pdf

Montážní a provozní návody

1

Montážní předpis_uzavírací klapka s ruční převodovkou série BUW6-DPE-G_CS.pdf

Prohlášení o shodě

1

Prohlášení o shodě_uzavírací klapka s ruční převodovkou série BUW6-DPE-G_CS.pdf

Data Sheets

1

Datablad_Spjældventil med håndgear Serie BUW6-DPE-G_DA_DK.pdf

Datenblätter

1

Datenblatt_Absperrklappe mit Handgetriebe Serie BUW6-DPE-G_DE.pdf

Montage- und Betriebsanleitungen

1

Montageanleitung_Absperrklappe mit Handgetriebe Serie BUW6-DPE-G_DE.pdf

Konformitätserklärungen

1

Konformitätserklärung_Absperrklappe mit Handgetriebe Serie BUW6-DPE-G_DE.pdf

Data Sheets

1

Δελτίο δεδομένων_Βαλβίδα πεταλούδας απομόνωσης με χειροκίνητο μειωτήρα ταχυτήτων Σειρά BUW6-DPE-G_EL_GR.pdf

Assembly and Operating Instructions

1

Ficha técnica_Válvula de mariposa con reductor manual Serie BUW6-DPE-G_ES.pdf

Data Sheets

1

Tietolehti_Sulkuventtiili käsivaihteella Sarja BUW6-DPE-G_FI.pdf

Data Sheets

1

Fiche technique_Vanne papillon avec réducteur manuel Série BUW6-DPE-G_FR.pdf

Data Sheets

1

Podatkovni list_Zaporni leptir ventil s ručnim prijenosnikom Serija BUW6-DPE-G_HR.pdf

Adatlapok

1

Adatlap_pillangószelep kézi forgatókerékkel sorozat BUW6-DPE-G_HU.pdf

Szerelési és kezelési útmutatók

1

Üzembehelyezési útmutató_pillangószelep kézi forgatókerékkel sorozat BUW6-DPE-G_HU.pdf

Megfelelőségi nyilatkozatok

1

Megfelelőségi nyilatkozat_pillangószelep kézi forgatókerékkel sorozat BUW6-DPE-G_HU.pdf

Assembly and Operating Instructions

1

Scheda tecnica_Serranda di intercettazione con riduttore manuale Serie BUW6-DPE-G_IT.pdf

Data Sheets

1

Datablad_Avstengningsspjeldventil med håndgir Serie BUW6-DPE-G_NB_NO.pdf

Data Sheets

1

Datasheet_Vlinderklep met handbediening Serie BUW6-DPE-G_NL.pdf

Karty katalogowe

1

Arkusz danych_przepustnica z przekładnią Seria BUW6-DPE-G_PL.pdf

Instrukcje montażu i obsługi

1

Instrukcja montażu_przepustnica z przekładnią Seria BUW6-DPE-G_PL.pdf

Deklaracje zgodności

1

Deklaracja zgodności_przepustnica z przekładnią Seria BUW6-DPE-G_PL.pdf

Assembly and Operating Instructions

1

Fișă de date_Supapă fluture cu cutie de viteze manuală serie BUW6-DPE-G_RO.pdf

Podatkovni listi

1

Podatkovni list_Zaporna loputa z ročnim polžastim pogonom serija BUW6-DPE-G_SL.pdf

Navodila za montažo in uporabo

1

Navodila za montažo_Zaporna loputa z ročnim polžastim pogonom serija BUW6-DPE-G_SL.pdf

Izjave o skladnosti

1

Izjava o skladnosti_Zaporna loputa z ročnim polžastim pogonom serija BUW6-DPE-G_SL.pdf

Data Sheets

1

Tehnički list_leptir ventil sa ručnom menjačkom kutijom serije BUW6-DPE-G_SRLATIN.pdf

Assembly and Operating Instructions

1

Uputstvo za montažu_leptir ventil sa ručnom menjačkom kutijom serije BUW6-DPE-G_SRLATIN.pdf

Declarations of Conformity

1

Deklaracija o usklađenosti_leptir ventil sa ručnom menjačkom kutijom serije BUW6-DPE-G_SRLATIN.pdf

Data Sheets

1

Datablad_Spjällventil med handväxel Serie BUW6-DPE-G_SV.pdf

BUW6-400-DPE-B x 1.0

Butterfly valve with bare shaft BUW6-400-DPE-B

Butterfly valve with bare shaft Series BUW6-DE-B, BUW1-DE-B, BUWC-DE-B, BUWZ-DE-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 400mm; Length 102mm; Disc GGG40 verzinkt; Pressure range 0…16bar; Flange PN10/16/ANSI150

GB02-12/4012-01

GB02-12/4012-01 x 1.0

GB02-12/4012-01

Gear box; Body Cast iron; Protection class IP67; ATEX Area 1/21; Torque 2000Nm; Flange ISO5211 F12; Diameter/Key 40/12mm

Spring washer SWA004-M12-I

SWA004-M12-I x 4.0

Spring washer SWA004-M12-I

Spring washer Series SWA004-I; 1.4301; According to DIN127; Thread M12
