Butterfly valve with manual gear box BUW6-500-DPN-G

Price:

401.634,00 din.
Butterfly valve with manual gear box Series BUW6-DPN-G Store
  1. Products
  2. Armatures
  3. Valves, butterfly valves and gate valves - manually operated
  4. Other materiales - A04
  5. Butterfly valve with manual gear box Series BUW6-DPN-G
  6. BUW6-500-DPN-G

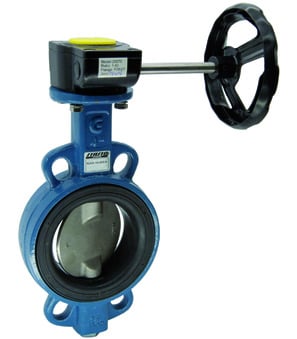

Butterfly valve with manual gear box BUW6-500-DPN-G
Butterfly valve with manual gear box BUW6-450-DPN-G
Butterfly valve with manual gear box BUW6-450-DPN-G
339.336,00 din.
339.336,00 din.
Butterfly valve with bare shaft BUW6-050-DUE-B
Butterfly valve with bare shaft BUW6-050-DUE-B
12.396,00 din.
12.396,00 din.

Butterfly valve with manual gear box BUW6-500-DPN-G

Butterfly valve with manual gear box Series BUW6-DPN-G; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc Ductile iron EN-GJS-400-15 Zinc plated, Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+100°C; Pressure range 0...16bar; DN 500mm; Length 127mm

Intrastat No.: 84818085
Country of origin: Italy
Weight: 154.72 Kg
Short Itemnumber:BUW6500DPNG
https://www.stasto.rs/web/image/product.template/133717/image_1920?unique=3f5cc91

butterfly valve with manual gear box series BUW6-DPN-G; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc ductile iron EN-GJS-400-15 zinc plated, shaft AISI 430; liner NBR; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+100°C; pressure range 0...16bar; DN 500mm; length 127mm

401.634,00 din. 401634.0 RSD 401.634,00 din.

cena na zahtev

  • DN
  • Length

This combination does not exist.

Availability:
Contact Us
DN 500 mm
Length 127 mm

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Assembly and Operating Instructions
1
Data sheet_Butterfly valve with manual gear box Series BUW6-DPN-G_EN.pdf
Download

ZIP
Datové listy
1
Datový list_uzavírací klapka s ruční převodovkou série BUW6-DPN-G_CS.pdf
Download

ZIP
Datenblätter
1
Datenblatt_Absperrklappe mit Handgetriebe Serie BUW6-DPN-G_DE.pdf
Download

ZIP
Adatlapok
1
Adatlap_pillangószelep kézi forgatókerékkel sorozat BUW6-DPN-G_HU.pdf
Download

ZIP
Karty katalogowe
1
Arkusz danych_przepustnica z przekładnią Seria BUW6-DPN-G_PL.pdf
Download

ZIP
Podatkovni listi
1
Podatkovni list_Zaporna loputa z ročnim polžastim pogonom serija BUW6-DPN-G_SL.pdf
Download

ZIP
Data Sheets
1
Tehnički list_leptir ventil sa ručnom menjačkom kutijom serije BUW6-DPN-G_SRLATIN.pdf
Download
BUW6-500-DPN-B x 1.0
Butterfly valve with bare shaft BUW6-500-DPN-B
Butterfly valve with bare shaft Series BUW6-DN-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+100°C; Pressure range 0...16bar; DN 500mm; Length 127mm; Disc GGG40 verzinkt
Add to Cart
GB02-16/4512-01
GB02-16/4512-01 x 1.0
GB02-16/4512-01
Gear box; Body Cast iron; Protection class IP67; ATEX Area 1/21; Torque 2000Nm; Flange ISO5211 F16; Diameter/Key 45/12mm
Add to Cart
​
