Butterfly valve with hand lever BUW9-050-CSRS-L-A

Price:

77.162,00 din.
Butterfly valve with hand lever Series BUW9-CSRS-L-A Store
  1. Products
  2. Armatures
  3. Valves, butterfly valves and gate valves - manually operated
  4. Other materiales - A04
  5. Butterfly valve with hand lever Series BUW9-CSRS-L-A
  6. BUW9-050-CSRS-L-A

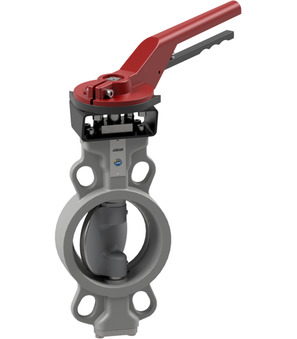

Butterfly valve with hand lever BUW9-050-CSRS-L-A
Butterfly valve with manual gear box BUL3A-500-CSRS-G-A
Butterfly valve with manual gear box BUL3A-500-CSRS-G-A
cena na zahtev
Butterfly valve with hand lever BUW9-065-CSRS-L-A
Butterfly valve with hand lever BUW9-065-CSRS-L-A
83.049,00 din.
83.049,00 din.

Butterfly valve with hand lever BUW9-050-CSRS-L-A

Butterfly valve with hand lever Series BUW9-CSRS-L-A; ATEX II 2 G/D Ex h X; Wafer type; Double eccentric; Length According to EN558−1R20; Body Steel Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat RTFE; Nominal flange pressure PN10/16/25/ANSI150; Medium temperature -10...+230°C; Pressure range 0...25bar; DN 50mm; Length 43mm

Intrastat No.: 84818085
Country of origin: Italy
Weight: 3.85 Kg
Short Itemnumber:BUW9050CSRSLA
https://www.stasto.rs/web/image/product.template/162827/image_1920?unique=3a7c714

butterfly valve with hand lever series BUW9-CSRS-L-A; ATEX II 2 G/D Ex h X; wafer type; double eccentric; length according to EN558−1R20; body steel epoxy coated; disc AISI 316; shaft AISI 630; seat RTFE; nominal flange pressure PN10/16/25/ANSI150; medium temperature -10...+230°C; pressure range 0...25bar; DN 50mm; length 43mm

77.162,00 din. 77162.0 RSD 77.162,00 din.

cena na zahtev

  • DN
  • Length
  • Design

This combination does not exist.

Availability:
Contact Us
dimension
DN 50 mm
Length 43 mm
design
Design ATEX
BUW9-050-CSRS-B-A x 1.0
Butterfly valve with bare shaft BUW9-050-CSRS-B-A
Butterfly valve with bare shaft Series BUW-CSR-B-A; ATEX II 2 G/D Ex h X; Wafer type; Double eccentric; Length According to EN558−1R20; Body Steel Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat RTFE; Medium temperature -10...+230°C; Pressure range 0...25bar; DN 50mm; Length 43mm; Nominal flange pressure PN10/16/25/ANSI150
Add to Cart
HLBU-040100-A
HLBU-040100-A x 1.0
HLBU-040100-A
Hand lever; Material Aluminum; Suitable for Series BUW6, BUW2, BUW4, BULG And BULC; DN 40;50;65;80;100mm
