Butterfly valve with pneumatic actuator BUW9-065-SSRS-S22

Price:

202.711,00 din.
Butterfly valve with pneumatic actuator Series BUW9-SSRS-S Store
  1. Products
  2. Armatures
  3. Valves, butterfly valves and gate valves - automatically operated
  4. Other materiales - A05
  5. Butterfly valve with pneumatic actuator Series BUW9-SSRS-S
  6. BUW9-065-SSRS-S22
Butterfly valve with pneumatic actuator BUW9-065-SSRS-S22
Butterfly valve with pneumatic actuator BUW9-050-SSRS-S42
Butterfly valve with pneumatic actuator BUW9-050-SSRS-S42
161.186,00 din.
161.186,00 din.
Butterfly valve with pneumatic actuator BUW9-065-SSRS-S42
Butterfly valve with pneumatic actuator BUW9-065-SSRS-S42
203.498,00 din.
203.498,00 din.

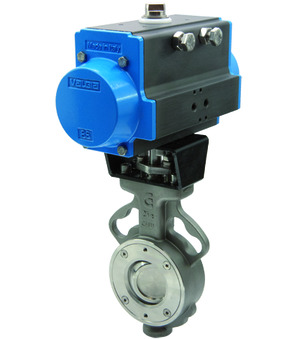

Butterfly valve with pneumatic actuator BUW9-065-SSRS-S22

Butterfly valve with pneumatic actuator Series BUW9-SSRS-S; Wafer type; Double eccentric; Length According to EN558−1R20; Body And Disc 1.4408, Shaft 1.4542; Seat RTFE; Medium temperature -10...+230°C; Single acting actuator; Control pressure 5,5...8bar; DN 65mm; Length 46mm; Pressure range 0…10bar; Nominal flange pressure PN10/16/25/ANSI150; Actuator PAS1155

Intrastat No.: 84818085
Country of origin: Italy
Weight: 26.53 Kg
Short Itemnumber:BUW9065SSRSS22
https://www.stasto.rs/web/image/product.template/138892/image_1920?unique=eba68ff

butterfly valve with pneumatic actuator series BUW9-SSRS-S; wafer type; double eccentric; length according to EN558−1R20; body and disc AISI 316, shaft AISI 630; seat RTFE; medium temperature -10...+230°C; single acting actuator; control pressure 5,5...8bar; DN 65mm; length 46mm; pressure range 0…10bar; nominal flange pressure PN10/16/25/ANSI150; actuator PAS1155

202.711,00 din. 202711.0 RSD 202.711,00 din.

cena na zahtev

  • DN
  • Length
  • Flange
  • Pressure range
  • Actuator

This combination does not exist.

Availability:
Contact Us
dimension
DN 65 mm
Length 46 mm
Flange PN10/16/25, ANSI150
pressure
Pressure range 0...10 bar
characteristics
Actuator PAS1155

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
CAD / 3D
1
CADSTEP_BUW9065SSRSS22.stp
Download
BUW9-065-SSRS-B x 1.0
Butterfly valve with bare shaft BUW9-065-SSRS-B
Butterfly valve with bare shaft Series BUW-SSRS-B; Wafer type; Double eccentric; Length According to EN558−1R20; Body, Disc 1.4408; Shaft 1.4542; Seat RTFE; Medium temperature -10...+230°C; Pressure range 0...25bar; DN 65mm; Length 46mm; Nominal flange pressure PN10/16/25/ANSI150
Add to Cart
Pneumatic actuator PAS1405
PAS1405 x 1.0
Pneumatic actuator PAS1405
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 140mm; Flange ISO5211 F10/F12; Female square 27mm; Torque at 5,5bar 114Nm
Add to Cart
APKTGB0051 x 1.0
APKTGB0051
Mounting bracket For butterfly valve; DN125...150-F07 -Square 14; Actuator F10-27
Add to Cart
