Butterfly valve with hand lever BUW9-125-SSRS-L

Price:

176.720,00 din.
Butterfly valve with hand lever Series BUW9-SSRS-L Store
  1. Products
  2. Armatures
  3. Valves, butterfly valves and gate valves - manually operated
  4. Other materiales - A04
  5. Butterfly valve with hand lever Series BUW9-SSRS-L
  6. BUW9-125-SSRS-L

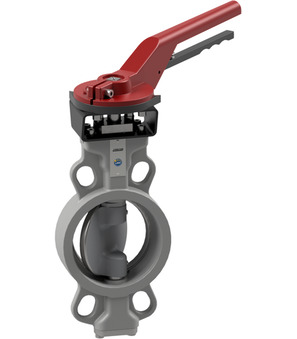

Butterfly valve with hand lever BUW9-125-SSRS-L
Butterfly valve with hand lever BUW9-100-SSRS-L
Butterfly valve with hand lever BUW9-100-SSRS-L
139.520,00 din.
139.520,00 din.
Butterfly valve with hand lever BUW9-150-SSRS-L
Butterfly valve with hand lever BUW9-150-SSRS-L
216.282,00 din.
216.282,00 din.

Butterfly valve with hand lever BUW9-125-SSRS-L

Butterfly valve with hand lever Series BUW9-SSRS-L; Wafer type; Double eccentric; Length According to EN558−1R20; Body And Disc 1.4408, Shaft 1.4542; Seat RTFE; Nominal flange pressure PN10/16/25/ANSI150; Medium temperature -10...+230°C; Pressure range 0...25bar; DN 125mm; Length 56mm

Intrastat No.: 84818085
Country of origin: Italy
Weight: 11.1 Kg
Short Itemnumber:BUW9125SSRSL
https://www.stasto.rs/web/image/product.template/163192/image_1920?unique=8a57484

butterfly valve with hand lever series BUW9-SSRS-L; wafer type; double eccentric; length according to EN558−1R20; body and disc AISI 316, shaft AISI 630; seat RTFE; nominal flange pressure PN10/16/25/ANSI150; medium temperature -10...+230°C; pressure range 0...25bar; DN 125mm; length 56mm

176.720,00 din. 176720.0 RSD 176.720,00 din.

cena na zahtev

  • DN
  • Length

This combination does not exist.

Availability:
Contact Us
DN 125 mm
Length 56 mm

Data sheets, Instructions, 3D-files and Certificates...

ZIP
Datové listy
1
Datový list_uzavírací klapka s ruční pákou série BUW9-SSRS-L_CS.pdf
Download

ZIP
Datenblätter
1
Datenblatt_Absperrklappe mit Handhebel Serie BUW9-SSRS-L_DE.pdf
Download

ZIP
Adatlapok
1
Adatlap_pillangószelep kézikarral sorozat BUW9-SSRS-L_HU.pdf
Download

ZIP
Karty katalogowe
1
Arkusz danych_przepustnica z dźwignią ręczną Seria BUW9-SSRS-L_PL.pdf
Download

ZIP
Podatkovni listi
1
Podatkovni list_Zaporna loputa z ročico serija BUW9-SSRS-L_SL.pdf
Download

ZIP
Data Sheets
1
Tehnički list_leptir ventil sa ručnom polugom serije BUW9-SSRS-L_SRLATIN.pdf
Download
No documents are available for this language. Please open "Other languages."
