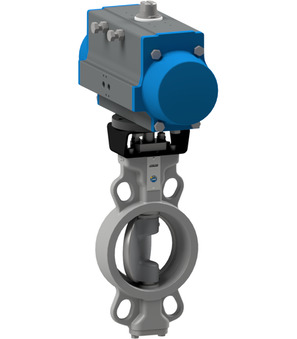

Butterfly valve with pneumatic actuator BUW9-150-CSIS-D22-01

Butterfly valve with pneumatic actuator BUW9-150-CSIS-D22-01

butterfly valve with pneumatic actuator series BUW-CSIS-D; wafer type; double eccentric; length according to EN558−1R20; housing steel epoxy coated; disc AISI 316; shaft AISI 630; seat Inconel 625; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+425°C; DN 150mm; length 56mm; pressure range 0…10bar; nominal flange pressure PN10/16/25/ANSI150; actuator PAD125-HB

Intrastat No.: 84818085
Country of origin: Italy Made in Europe
Weight: 25.23 Kg
Short Itemnumber: BUW9150CSISD2201
https://www.stasto.rs/web/image/product.template/175839/image_1920?unique=baeb489

butterfly valve with pneumatic actuator series BUW-CSIS-D; wafer type; double eccentric; length according to EN558−1R20; housing steel epoxy coated; disc AISI 316; shaft AISI 630; seat Inconel 625; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+425°C; DN 150mm; length 56mm; pressure range 0…10bar; nominal flange pressure PN10/16/25/ANSI150; actuator PAD125-HB

302.739,00 din. 302739.0 RSD 302.739,00 din.

cena na zahtev

excl. tax
  • Valve interface Namur
  • DN
  • Length
  • Flange
  • Connector size
  • Design
  • Voltage
  • Pressure range
  • Coil
  • Actuator
  • Actuator 2

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...10 bar
DN 150 mm
Length 56 mm
Flange PN10/16/25, ANSI150
Pressure range 0...10 bar
DN 150 mm
Length 56 mm
Flange PN10/16/25, ANSI150
BUW9-150-CSIS-B x 1.0 Pcs
Butterfly valve with bare shaft BUW9-150-CSIS-B
Butterfly valve with bare shaft Series BUW9-CSIQ-B; Wafer type; Double eccentric; Length According to EN558−1R20; Body Steel Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat Inconel 625; Medium temperature -10...+425°C; Pressure range 0...25bar; DN 150mm; Length 56mm; Nominal flange pressure PN10/16/25/ANSI150
Pneumatic actuator PAD125-HB
PAD125-HB x 1.0 Pcs
Pneumatic actuator PAD125-HB
Pneumatic actuator Series PAD; ATEX II 2 G/D c T6; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Seals FKM; Temperature range -20...+150°C; Pinion turned by 90°; Diameter 125mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 327Nm
APKTGB0049 x 1.0 Pcs
APKTGB0049
Mounting bracket; For damper; DN200; F10/F07-17-22
