BUW9-150-CSRS-S12

Name: BUW9-150-CSRS-S12
Brand: STASTO
SKU: BUW9-150-CSRS-S12
Price: 419122.0 RSD
Availability: InStock

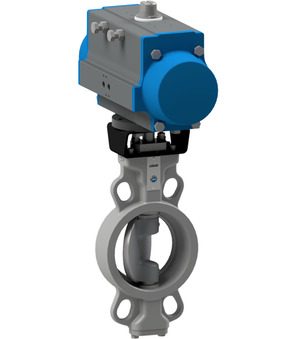

Butterfly valve with pneumatic actuator; Wafer type; Length According to EN558−1 R20; Body Steel; Disc 1.4408; Shaft 1.4542; Seat RTFE; Nominal flange pressure PN10/16/25/ANSI150; Medium temperature -10...+230°C; Pressure range 0...25bar; ATEX II 2G/D c TX; DN 150mm; Length 56mm; Single acting actuator PAS1805; Control pressure 5,5...8bar; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness; Certificate TR CU; With valve pass And Verify Safety; Notch impact test

Intrastat No.: 84818085
Country of origin: Italy
Weight: 54.77 Kg
Short Itemnumber: BUW9150CSRSS12

butterfly valve with pneumatic actuator; wafer type; length according to EN558−1 R20; body steel; disc AISI 316; shaft AISI 630; seat RTFE; nominal flange pressure PN10/16/25/ANSI150; medium temperature -10...+230°C; pressure range 0...25bar; ATEX II 2G/D c TX; DN 150mm; length 56mm; single acting actuator PAS1805; control pressure 5,5...8bar; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness; certificate TR CU; with valve pass and Verify safety; notch impact test

419.122,00 din. 419122.0 RSD 419.122,00 din.

Design
- ATEX

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

Design

ATEX

BUW9-150-CSRS-B x 1.0

Butterfly valve with bare shaft BUW9-150-CSRS-B

Butterfly valve with bare shaft Series BUW-CSRS-B; Wafer type; Double eccentric; Length According to EN558−1R20; Body Steel Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat RTFE; Medium temperature -10...+230°C; Pressure range 0...25bar; DN 150mm; Length 56mm; Nominal flange pressure PN10/16/25/ANSI150

Add to Cart

PAS1805 x 1.0

Pneumatic actuator PAS1805

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 180mm; Flange ISO5211 F10/F14; Female square 36mm; Torque at 5,5bar 262Nm

Add to Cart

APKTGB0078 x 1.0
