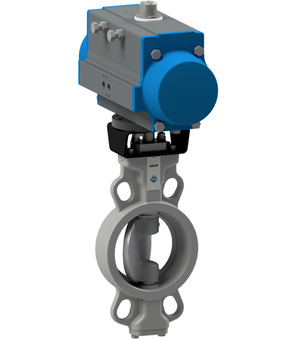

Butterfly valve with pneumatic actuator BUW9-200-CSIQ-D42

Butterfly valve with pneumatic actuator BUW9-200-CSIQ-D42

Butterfly valve with pneumatic actuator Series BUW9-CSIS-D4; Wafer type; Double eccentric; Length According to EN558−1R20; Body Steel Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat Inconel 625; Nominal flange pressure PN10/16/25/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+425°C; Pressure range 0...25bar; DN 200mm; Length 61mm; Actuator PAD200-H

Absperrklappe mit Druckluftdrehantrieb Serie BUW9-CSIS-D4
Absperrklappe mit Druckluftdrehantrieb Serie BUW9-CSIS-D4
Intrastat No.: 84818085
Country of origin: Italy Made in Europe
Weight: 64.0 Kg
Short Itemnumber: BUW9200CSIQD42
https://www.stasto.rs/web/image/product.template/150416/image_1920?unique=3b396ba

butterfly valve with pneumatic actuator series BUW9-CSIS-D4; wafer type; double eccentric; length according to EN558−1R20; body steel epoxy coated; disc AISI 316; shaft AISI 630; seat Inconel 625; nominal flange pressure PN10/16/25/ANSI150; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+425°C; pressure range 0...25bar; DN 200mm; length 61mm; actuator PAD200-H

506.026,00 din. 506026.0 RSD 506.026,00 din.

cena na zahtev

excl. tax
  • Valve interface Namur
  • DN
  • Length
  • Connector size
  • Design
  • Voltage
  • Pressure range
  • Coil
  • Actuator
  • Actuator 2
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...25 bar
DN 200 mm
Length 61 mm
Brand STASTO
Documents
Data sheets, drawings and CAD files
Pressure range 0...25 bar
DN 200 mm
Length 61 mm
Brand STASTO

BUW9-200-CSIQ-D42

Documents

2 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1

CAD / 3D

1
Danish / Dansk
ZIP

Data Sheets

1

CAD / 3D

1
German / Deutsch
ZIP

Data Sheets

1

CAD / 3D

1
Greek / Ελληνικά
ZIP

Data Sheets

1

CAD / 3D

1
English
ZIP

Data Sheets

1

CAD / 3D

1
Spanish / Español
ZIP

Data Sheets

1

CAD / 3D

1
Finnish / Suomi
ZIP

Data Sheets

1

CAD / 3D

1
French / Français
ZIP

Data Sheets

1

CAD / 3D

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1

CAD / 3D

1
Hungarian / Magyar
ZIP

Data Sheets

1

CAD / 3D

1
Italian / Italiano
ZIP

Data Sheets

1

CAD / 3D

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1

CAD / 3D

1
Dutch / Nederlands
ZIP

Data Sheets

1

CAD / 3D

1
Polish / Język polski
ZIP

Data Sheets

1

CAD / 3D

1
Romanian / română
ZIP

Data Sheets

1

CAD / 3D

1
Slovenian / slovenščina
ZIP

Data Sheets

1

CAD / 3D

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1

CAD / 3D

1
Swedish / Svenska
ZIP

Data Sheets

1

CAD / 3D

1
BUW9-200-CSIQ-B x 1.0 Pcs
Butterfly valve with bare shaft BUW9-200-CSIQ-B
Butterfly valve with bare shaft Series BUW9-CSIQ-B; Wafer type; Double eccentric; Length According to EN558−1R20; Body Carbon steel A216-WCB Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat Inconel 625; Medium temperature -10...+425°C; Pressure range 0...25bar; DN 200mm; Length 61mm; Nominal flange pressure PN10/16/25/ANSI150
Pneumatic actuator PAD200-H
PAD200-H x 1.0 Pcs
Pneumatic actuator PAD200-H
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Seals FKM; Temperature range -20...+150°C; Diameter 200mm; Flange ISO5211 F14; Female square 36mm; Torque at 5,5bar 1170Nm
APKTGB0142 x 1.0 Pcs
APKTGB0142
Mounting bracket For butterfly valve; DN200-F10-Square 22; Actuator F14-36
