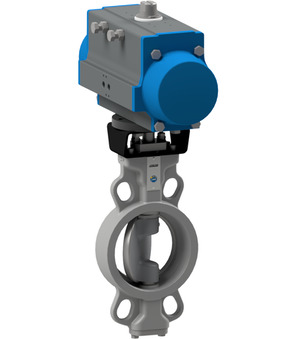

Butterfly valve with pneumatic actuator BUW9-200-CSRQ-D41

Price:

390.981,00 din.
Butterfly valve with pneumatic actuator Series BUW9-CSRS-D Store
  1. Products
  2. Armatures
  3. Valves, butterfly valves and gate valves - automatically operated
  4. Other materiales - A05
  5. Butterfly valve with pneumatic actuator Series BUW9-CSRS-D
  6. BUW9-200-CSRQ-D41
Butterfly valve with pneumatic actuator BUW9-200-CSRQ-D41
Butterfly valve with pneumatic actuator BUW9-125-CSRS-D41
Butterfly valve with pneumatic actuator BUW9-125-CSRS-D41
219.408,00 din.
219.408,00 din.
Butterfly valve with electrical actuator BUW9-065-SSRS-0H2
Butterfly valve with electrical actuator BUW9-065-SSRS-0H2
160.916,00 din.
160.916,00 din.

Butterfly valve with pneumatic actuator BUW9-200-CSRQ-D41

Butterfly valve with pneumatic actuator Series BUW9-CSRS-D; Wafer type; Double eccentric; Length According to EN558−1R20; Body Steel Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat RTFE; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+230°C; DN 200mm; Length 61mm; Pressure range 0...25bar; Nominal flange pressure PN10/16/25/ANSI150; Actuator PAD160

Intrastat No.: 84818085
Country of origin: Italy
Weight: 43.89 Kg
Short Itemnumber:BUW9200CSRQD41
https://www.stasto.rs/web/image/product.template/150404/image_1920?unique=fb66cb8

butterfly valve with pneumatic actuator series BUW9-CSRS-D; wafer type; double eccentric; length according to EN558−1R20; body steel epoxy coated; disc AISI 316; shaft AISI 630; seat RTFE; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+230°C; DN 200mm; length 61mm; pressure range 0...25bar; nominal flange pressure PN10/16/25/ANSI150; actuator PAD160

390.981,00 din. 390981.0 RSD 390.981,00 din.

cena na zahtev

  • DN
  • Length
  • Flange
  • Pressure range
  • Actuator

This combination does not exist.

Availability:
Contact Us
dimension
DN 200 mm
Length 61 mm
Flange PN10/16/25, ANSI150
pressure
Pressure range 0...25 bar
characteristics
Actuator PAD160
BUW9-200-CSRQ-B x 1.0
Butterfly valve with bare shaft BUW9-200-CSRQ-B
Butterfly valve with bare shaft Series BUW-CSRS-B; Wafer type; Double eccentric; Length According to EN558−1R20; Body Carbon steel A216-WCB Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat RTFE; Medium temperature -10...+230°C; Pressure range 0...25bar; DN 200mm; Length 61mm; Nominal flange pressure PN10/16/25/ANSI150
Add to Cart
Pneumatic actuator PAD160
PAD160 x 1.0
Pneumatic actuator PAD160
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 160mm; Flange ISO5211 F10/F12; Female square 27mm; Torque at 5,5bar 630Nm
Add to Cart
APKTGB0099 x 1.0
APKTGB0099
Mounting bracket For butterfly valve; DN200-F10-Square 22; Actuator F10-27
Add to Cart
