BUW9-200-SSIQ-G-A3C

BUW9-200-SSIQ-G-A3C

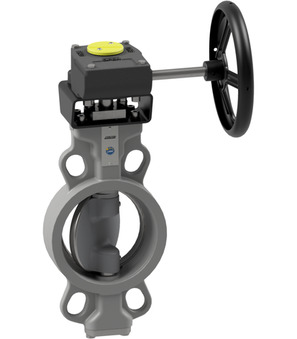

Butterfly valve with manual gear box; Wafer type; ATEX Ex II 2GD c TX; Length According to EN558−1R20; Body, Disc 1.4408; Shaft 1.4542; Seat Inconel 625; Medium temperature -10...+425°C; Pressure range 0...25bar; DN 200mm; Length 61mm; Flange PN10/16/25/ANSI150; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness

Intrastat No.: 84818085
Country of origin: Italy
Weight: 30.52 Kg
Short Itemnumber: BUW9200SSIQGA3C
https://www.stasto.rs/web/image/product.template/158356/image_1920?unique=24fee4a

butterfly valve with manual gear box; wafer type; ATEX Ex II 2GD c TX; length according to EN558−1R20; body, disc AISI 316; shaft AISI 630; seat Inconel 625; medium temperature -10...+425°C; pressure range 0...25bar; DN 200mm; length 61mm; flange PN10/16/25/ANSI150; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness

339.892,00 din. 339892.0 RSD 339.892,00 din.

cena na zahtev

  • Design

This combination does not exist.

Availability:
Contact Us

Share

Design ATEX
BUW9-200-SSIQ-B-A3C x 1.0
BUW9-200-SSIQ-B-A3C
Butterfly valve with bare shaft; ATEX Ex II 2GD c TX; Wafer type; Length According to EN558−1R20; Body And Disc 1.4408, Shaft 1.4542; Seat Inconel 625; Medium temperature -10...+425°C; Pressure range 0...25bar; DN 200mm; Length 61mm; Nominal flange pressure PN10/16/26/ANSI150; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness
Add to Cart
GB02-10/22-02
GB02-10/22-02 x 1.0
GB02-10/22-02
Gear box; Body Cast iron; Protection class IP67; ATEX Area 1/21; Torque 1000Nm; Flange ISO5211 F10; Female square 22mm
