Butterfly valve with manual gear box Series BUW-CSR-G-A Store

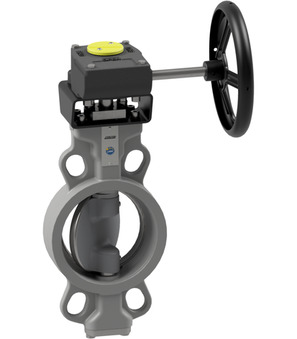

Butterfly valve with manual gear box BUW9-350-CSRS-G-A

Butterfly valve with manual gear box Series BUW-CSR-G-A; ATEX II 2 G/D Ex h X; Wafer type; Double eccentric; Length According to EN558−1R20; Body Steel Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat RTFE; Medium temperature -10...+230°C; Pressure range 0...25bar; DN 350mm; Length 92mm; Nominal flange pressure PN10/16/25/ANSI150

Intrastat No.: 84818085
Country of origin: Italy
Weight: 105.044 Kg
Short Itemnumber:BUW9350CSRSGA

butterfly valve with manual gear box series BUW-CSR-G-A; ATEX II 2 G/D Ex h X; wafer type; double eccentric; length according to EN558−1R20; body steel epoxy coated; disc AISI 316; shaft AISI 630; seat RTFE; medium temperature -10...+230°C; pressure range 0...25bar; DN 350mm; length 92mm; nominal flange pressure PN10/16/25/ANSI150

952.267,00 din. 952267.0 RSD 952.267,00 din.

DN
- 350 mm
Length
- 92 mm
Flange
- PN10/16/25, ANSI150
Design
- ATEX

This combination does not exist.

Availability:

Add to Cart

Specifications
Spare Parts

dimension
DN	350 mm
Length	92 mm
Flange	PN10/16/25, ANSI150
design
Design	ATEX

BUW9-350-CSRS-B-A x 1.0

Butterfly valve with bare shaft BUW9-350-CSRS-B-A

Butterfly valve with bare shaft Series BUW-CSR-B-A; ATEX II 2 G/D Ex h X; Wafer type; Double eccentric; Length According to EN558−1R20; Body Steel Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat RTFE; Medium temperature -10...+230°C; Pressure range 0...25bar; DN 350mm; Length 92mm; Nominal flange pressure PN10/16/25/ANSI150
