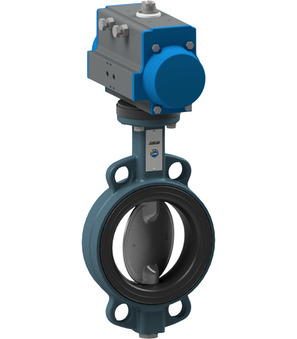

Butterfly valve with pneumatic actuator; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc AISI 316; Shaft AISI 430; Liner FKM; Nominal flange pressure PN25; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+200°C; Pressure range 0...25bar; DN 80mm; Length 46mm; Actuator PAD085
Intrastat No.: 84818085
Country of origin: Italy
Weight: 8.05 Kg
Short Itemnumber: BUWV080DSVD42
Country of origin: Italy
Weight: 8.05 Kg
Short Itemnumber: BUWV080DSVD42
Butterfly valve with pneumatic actuator; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc AISI 316; Shaft AISI 430; Liner FKM; Nominal flange pressure PN25; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+200°C; Pressure range 0...25bar; DN 80mm; Length 46mm; Actuator PAD085
Technical specifications
| Pressure range | 0...10 bar |
|---|---|
| DN | 80 mm |
| Length | 46 mm |
| Brand | STASTO |
| Pressure range | 0...10 bar |
| DN | 80 mm |
| Length | 46 mm |
| Brand | STASTO |
No spare parts are available for this product.
