Butterfly valve with hand lever Series BUWV-DSE-L Store

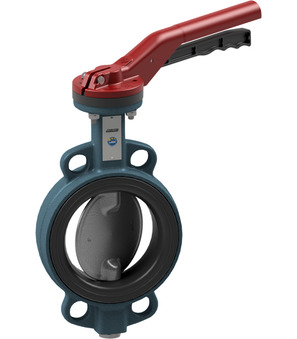

Butterfly valve with hand lever BUWV-100-DSE-L

Name: Butterfly valve with hand lever BUWV-100-DSE-L
Brand: STASTO
SKU: BUWV-100-DSE-L
Price: 47905.0 RSD
Availability: InStock

Butterfly valve with hand lever Series BUWV-DSE-L; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN25; Medium temperature -10...+130°C; Pressure range 0…25bar; DN 100mm; Length 52mm

Intrastat No.: 84818085
Country of origin: Italy
Weight: 6.35 Kg
Short Itemnumber: BUWV100DSEL

butterfly valve with hand lever series BUWV-DSE-L; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; nominal flange pressure PN25; medium temperature -10...+130°C; pressure range 0…25bar; DN 100mm; length 52mm
