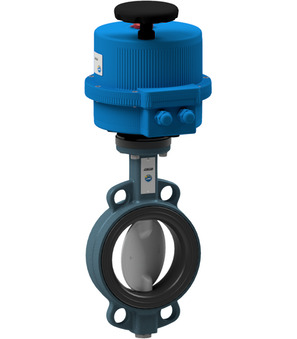

BUW8-150-CSE-0K2

BUW8-150-CSE-0K2

Butterfly valve with electrical actuator; Wafer type; Length According to EN558−1 R20; Body Carbon steel A216-WCB Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN16/25/ANSI150; Medium temperature -10...+130°C; Pressure range 0...25bar; DN 150mm; Length 56mm; Operating time 27s; Voltage 24VAC/DC

Intrastat No.: 84818085
Country of origin: Italy
Weight: 13.98 Kg
Short Itemnumber: BUWV150CSE0K2
https://www.stasto.rs/web/image/product.template/151015/image_1920?unique=f96ddcc

butterfly valve with electrical actuator; wafer type; length according to EN558−1 R20; body carbon steel A216-WCB epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; nominal flange pressure PN16/25/ANSI150; medium temperature -10...+130°C; pressure range 0...25bar; DN 150mm; length 56mm; operating time 27s; voltage 24VAC/DC

999.999,00 din. 999999.0 RSD 999.999,00 din.

cena na zahtev

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    BUWV-150-CSE-B x 1.0
    BUWV-150-CSE-B
    Butterfly valve with bare shaft; Wafer type; Length According to EN558−1 R20; Body Carbon steel A216-WCB Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN16/25/ANSI150; Medium temperature -10...+130°C; Pressure range 0...25bar; DN 150mm; Length 56mm
    Add to Cart
    Electrical actuator VB190-L
    VB190-L x 1.0
    Electrical actuator VB190-L
    Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 190Nm; Operating time 27s; Flange ISO5211 F07/F10-Stern 17 mm; Voltage 24VAC/DC; Protection class IP67
