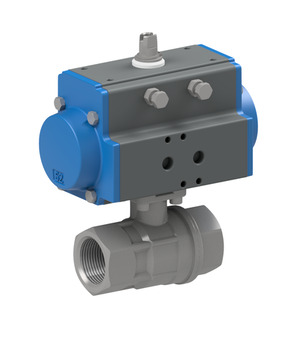

Ball valve with pneumatic actuator Series BAB1

Ball valves - pneumatically operated

Ball valve with pneumatic actuator Series BAB1

Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C

Data sheets, CAD files and further documents are available with the respective variant.

58Articles
Store guide
Other series

All prices exclude tax.

Grundversion

AvailabilityPriceQuantity
BAB1-004-SSTV-D0 RP 1/2" 15 mm 67 mm 0...40 bar 28.600,00 din.
BAB1-004-SSTV-D0B RP 1/2" 15 mm 67 mm 0...64 bar 35.050,00 din.
BAB1-005-SSTV-D0 RP 3/4" 20 mm 78 mm 0...40 bar 29.916,00 din.
BAB1-005-SSTV-D0B RP 3/4" 20 mm 78 mm 0...64 bar 36.366,00 din.
BAB1-006-SSTV-D0 RP 1" 25 mm 90 mm 0...40 bar 32.818,00 din.
BAB1-006-SSTV-D0B RP 1" 25 mm 90 mm 0...64 bar 39.268,00 din.
BAB1-007-SSTV-D0 RP 1 1/4" 32 mm 100 mm 0...40 bar 38.728,00 din.
BAB1-007-SSTV-D0B RP 1 1/4" 32 mm 100 mm 0...64 bar 45.179,00 din.
BAB1-008-SSTV-D0 RP 1 1/2" 40 mm 112 mm 0...40 bar 49.538,00 din.
BAB1-009-SSTV-D0 RP 2" 50 mm 135 mm 0...40 bar 61.253,00 din.

Varianten

AvailabilityPriceQuantity
BAB1-004-SSTV-D0B-EB0X01
Specifications
Pressure range
0...64 bar
Switch type
Crouzet 831613
Contact material
Silver-nickel
Material of case
Plastic
- RP 1/2" 15 mm 67 mm 47.024,00 din.
BAB1-004-SSTV-D0B-ABS51-C001-22-C002-31-6
Specifications
Pressure range
0...64 bar
Design
Standard
230V/50-60Hz RP 1/2" 15 mm 67 mm 52.334,00 din.
BAB1-004-SSTV-D0B-ABS51-C001-22-C002-31-LV-1
Specifications
Pressure range
0...64 bar
Design
With integrated LED-yellow and VDR
230V/50-60Hz RP 1/2" 15 mm 67 mm 52.957,00 din.
BAB1-004-SSTV-D0B-ABS51-C001-22-C002-31-LVCV20-1
Specifications
Pressure range
0...64 bar
Design
With integrated LED-yellow, VDR and PVC-cable (2 m)
230V/50-60Hz RP 1/2" 15 mm 67 mm 54.026,00 din.
BAB1-004-SSTV-D0B-ABS51-C001-03-C002-31-6
Specifications
Pressure range
0...64 bar
Design
Standard
24VDC / 48V/50-60Hz RP 1/2" 15 mm 67 mm 52.334,00 din.
BAB1-004-SSTV-D0B-ABS51-C001-03-C002-31-LV-2
Specifications
Pressure range
0...64 bar
Design
With integrated LED-yellow and VDR
24VDC / 48V/50-60Hz RP 1/2" 15 mm 67 mm 52.969,00 din.
BAB1-004-SSTV-D0B-ABS51-C001-03-C002-31-LVCV20-2
Specifications
Pressure range
0...64 bar
Design
With integrated LED-yellow, VDR and PVC-cable (2 m)
24VDC / 48V/50-60Hz RP 1/2" 15 mm 67 mm 53.897,00 din.
BAB1-005-SSTV-D0B-ABS51-C001-22-C002-31-6
Specifications
Pressure range
0...64 bar
Design
Standard
230V/50-60Hz RP 3/4" 20 mm 78 mm 53.650,00 din.
BAB1-005-SSTV-D0B-ABS51-C001-22-C002-31-LV-1
Specifications
Pressure range
0...64 bar
Design
With integrated LED-yellow and VDR
230V/50-60Hz RP 3/4" 20 mm 78 mm 54.273,00 din.
BAB1-005-SSTV-D0B-ABS51-C001-22-C002-31-LVCV20-1
Specifications
Pressure range
0...64 bar
Design
With integrated LED-yellow, VDR and PVC-cable (2 m)
230V/50-60Hz RP 3/4" 20 mm 78 mm 55.342,00 din.
BAB1-005-SSTV-D0B-ABS51-C001-03-C002-31-6
Specifications
Pressure range
0...64 bar
Design
Standard
24VDC / 48V/50-60Hz RP 3/4" 20 mm 78 mm 53.650,00 din.
BAB1-005-SSTV-D0B-ABS51-C001-03-C002-31-LV-2
Specifications
Pressure range
0...64 bar
Design
With integrated LED-yellow and VDR
24VDC / 48V/50-60Hz RP 3/4" 20 mm 78 mm 54.285,00 din.
BAB1-005-SSTV-D0B-ABS51-C001-03-C002-31-LVCV20-2
Specifications
Pressure range
0...64 bar
Design
With integrated LED-yellow, VDR and PVC-cable (2 m)
24VDC / 48V/50-60Hz RP 3/4" 20 mm 78 mm 55.213,00 din.
BAB1-006-SSTV-D0B-EB0X01
Specifications
Pressure range
0...64 bar
Switch type
Crouzet 831613
Contact material
Silver-nickel
Material of case
Plastic
- RP 1" 25 mm 90 mm 51.242,00 din.
BAB1-006-SSTV-D0B-ABS51-C001-22-C002-31-6
Specifications
Pressure range
0...64 bar
Design
Standard
230V/50-60Hz RP 1" 25 mm 90 mm 56.553,00 din.
BAB1-006-SSTV-D0B-ABS51-C001-22-C002-31-LV-1
Specifications
Pressure range
0...64 bar
Design
With integrated LED-yellow and VDR
230V/50-60Hz RP 1" 25 mm 90 mm 57.176,00 din.
BAB1-006-SSTV-D0B-ABS51-C001-22-C002-31-LVCV20-1
Specifications
Pressure range
0...64 bar
Design
With integrated LED-yellow, VDR and PVC-cable (2 m)
230V/50-60Hz RP 1" 25 mm 90 mm 58.245,00 din.
BAB1-006-SSTV-D0B-ABS52-C001-04-C002-31-6-EB0X01
Specifications
Pressure range
0...64 bar
Design
Standard
Switch type
Crouzet 831613
Contact material
Silver-nickel
Material of case
Plastic
12VDC / 24V/50-60Hz RP 1" 25 mm 90 mm 72.968,00 din.
BAB1-006-SSTV-D0B-ABS51-C001-03-C002-31-6
Specifications
Pressure range
0...64 bar
Design
Standard
24VDC / 48V/50-60Hz RP 1" 25 mm 90 mm 56.553,00 din.
BAB1-006-SSTV-D0B-ABS51-C001-03-C002-31-6-EB0X01
Specifications
Pressure range
0...64 bar
Design
Standard
Switch type
Crouzet 831613
Contact material
Silver-nickel
Material of case
Plastic
24VDC / 48V/50-60Hz RP 1" 25 mm 90 mm 68.526,00 din.
BAB1-006-SSTV-D0B-ABS51-C001-03-C002-31-LV-2
Specifications
Pressure range
0...64 bar
Design
With integrated LED-yellow and VDR
24VDC / 48V/50-60Hz RP 1" 25 mm 90 mm 57.187,00 din.
BAB1-006-SSTV-D0B-ABS51-C001-03-C002-31-LV-2-EB0X01
Specifications
Pressure range
0...64 bar
Design
With integrated LED-yellow and VDR
Switch type
Crouzet 831613
Contact material
Silver-nickel
Material of case
Plastic
24VDC / 48V/50-60Hz RP 1" 25 mm 90 mm 69.160,00 din.
BAB1-006-SSTV-D0B-ABS51-C001-03-C002-31-LVCV20-2
Specifications
Pressure range
0...64 bar
Design
With integrated LED-yellow, VDR and PVC-cable (2 m)
24VDC / 48V/50-60Hz RP 1" 25 mm 90 mm 58.116,00 din.
BAB1-007-SSTV-D0B-ABS51-C001-22-C002-31-6
Specifications
Pressure range
0...64 bar
Design
Standard
230V/50-60Hz RP 1 1/4" 32 mm 100 mm 62.463,00 din.
BAB1-007-SSTV-D0B-ABS51-C001-22-C002-31-LV-1
Specifications
Pressure range
0...64 bar
Design
With integrated LED-yellow and VDR
230V/50-60Hz RP 1 1/4" 32 mm 100 mm 63.086,00 din.
BAB1-007-SSTV-D0B-ABS51-C001-22-C002-31-LVCV20-1
Specifications
Pressure range
0...64 bar
Design
With integrated LED-yellow, VDR and PVC-cable (2 m)
230V/50-60Hz RP 1 1/4" 32 mm 100 mm 64.155,00 din.
BAB1-007-SSTV-D0B-ABS51-C001-03-C002-31-6
Specifications
Pressure range
0...64 bar
Design
Standard
24VDC / 48V/50-60Hz RP 1 1/4" 32 mm 100 mm 62.463,00 din.
BAB1-007-SSTV-D0B-ABS51-C001-03-C002-31-LV-2
Specifications
Pressure range
0...64 bar
Design
With integrated LED-yellow and VDR
24VDC / 48V/50-60Hz RP 1 1/4" 32 mm 100 mm 63.098,00 din.
BAB1-007-SSTV-D0B-ABS51-C001-03-C002-31-LVCV20-2
Specifications
Pressure range
0...64 bar
Design
With integrated LED-yellow, VDR and PVC-cable (2 m)
24VDC / 48V/50-60Hz RP 1 1/4" 32 mm 100 mm 64.026,00 din.
BAB1-008-SSTV-D0-EB0X01
Specifications
Pressure range
0...40 bar
Switch type
Crouzet 831613
Contact material
Silver-nickel
Material of case
Plastic
- RP 1 1/2" 40 mm 112 mm 61.511,00 din.
