Flange PN16; Body Cast iron EN-GJL-250; Ball 1.4301; Seals PTFE/NBR; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+120°C; Pressure range 0...16bar
Flanged ball valve with pneumatic actuator Series BA040-D -
Flange PN16; Body Cast iron EN-GJL-250; Ball 1.4301; Seals PTFE/NBR; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+120°C; Pressure range 0...16bar
Flanged ball valve with pneumatic actuator Series BA040-S -
Flange PN16; Body Steel; Ball 1.4301; Seals PTFE/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar
Flanged ball valve with pneumatic actuator Series BADA -
Flange PN16; Body Steel; Ball 1.4301; Seals PTFE/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar
Flanged ball valve with pneumatic actuator Series BADA -
Fire-safe; TA-Luft; Length According to EN558−1R27; Body Zinc plated steel; Ball 1.4301; Seals PTFE/Graphoil/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+160°CFlanged ball valve with pneumatic actuator Series BAEB, BAEA
-
Fire-safe; TA-Luft; Length According to EN558−1R27; Body Zinc plated steel; Ball 1.4301; Seals PTFE/Graphoil/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+160°C
Flanged ball valve with pneumatic actuator Series BAEB, BAEA -
3-way-type; Sealing on two sides; Pressure inlet just in front; Flange PN16; Body Steel; Ball 1.4301; Seals PTFE/FKM; Reduced bore; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+160°C; Pressure range 0...16barFlanged ball valve with pneumatic actuator Series BAMA, BAUA
-
3-way-type; Sealing on two sides; Pressure inlet just in front; Flange PN16; Body Steel; Ball 1.4301; Seals PTFE/FKM; Reduced bore; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+160°C; Pressure range 0...16barFlanged ball valve with pneumatic actuator Series BAMA, BAUA
-
Flange PN16; Body, Ball 1.4401; Seals PTFE/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar
Flanged ball valve with pneumatic actuator Series BADA -
Flange PN16; Body, Ball 1.4401; Seals PTFE/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar
Flanged ball valve with pneumatic actuator Series BADA -
Fire-safe; TA-Luft; Length According to EN558−1R27; Body, Ball 1.4408; Seals PTFE/Graphoil/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C
Flanged ball valve with pneumatic actuator Series BAEB, BAEA -
Fire-safe; TA-Luft; Length According to EN558−1R27; Body, Ball 1.4408; Seals PTFE/Graphoil/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C
Flanged ball valve with pneumatic actuator Series BAEB, BAEA -
3-way-type; Sealing on two sides; Pressure inlet just in front; Flange PN16; Body, Ball 1.4401; Seals PTFE/FKM; Reduced bore; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar
Flanged ball valve with pneumatic actuator Series BAMA, BAUA -
3-way-type; Sealing on two sides; Pressure inlet just in front; Flange PN16; Body, Ball 1.4401; Seals PTFE/FKM; Reduced bore; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar
Flanged ball valve with pneumatic actuator Series BAMA, BAUA -
3-way-type; Sealing on three ports; Body 1.4404 Polished; Ball 1.4404; Seals PTFE/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C
Flanged ball valve with pneumatic actuator Series BA055, BA056 -
3-way-type; Sealing on three ports; Body 1.4404 Polished; Ball 1.4404; Seals PTFE/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C
Flanged ball valve with pneumatic actuator Series BA055, BA056
Flanged ball valves - pneumatically operated
| DN | Length | Pressure range | Voltage | Design | Connection | Flow rate at 6.3bar/Δp=1bar | Max. inlet pressure | Filter element | Suitable to series | Switch type | Contact material | Material of case | Function | Diameter Hose | Direction of flow control | Body | Screen | Voltage type | Description | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 150 mm | 232 mm | 0...16 bar | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | BADA-150-SSTV-S0 |
| DN | Length | Pressure range | Function | Voltage | Design | Switch type | Material of case | Contact material | Type |
|---|---|---|---|---|---|---|---|---|---|
| 150 mm | 232 mm | 0...16 bar | - | 24VDC / 48V/50-60Hz | Standard | - | - | - | BADA-150-SSTV-D0-ABS52-C001-03-C002-31-6 |
Flanged ball valve with pneumatic actuator Series BADA
Flange PN16; Body, Ball 1.4401; Seals PTFE/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar
| DN | Length | Pressure range | Voltage | Design | Connection | Flow rate at 6.3bar/Δp=1bar | Max. inlet pressure | Filter element | Suitable to series | Switch type | Contact material | Material of case | Function | Diameter Hose | Direction of flow control | Body | Screen | Voltage type | Description | Type | Sequence |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 150 mm | 232 mm | 0...16 bar | 230V/50-60Hz | Standard | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 3/2-way solenoid valve - NAMUR type (NM32W1S-PR) Actuator PAS052-270 | BADA-150-SSTV-S0-ABS53-C001-22-C002-31-6 | 25250102 |
| 150 mm | 232 mm | 0...16 bar | 230V/50-60Hz | With integrated LED-yellow and VDR | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 3/2-way solenoid valve - NAMUR type (NM32W1S-PR) Actuator PAS052-270 | BADA-150-SSTV-S0-ABS53-C001-22-C002-31-LV-1 | 25250103 |
| DN | Length | Pressure range | Function | Voltage | Design | Switch type | Material of case | Contact material | Type |
|---|---|---|---|---|---|---|---|---|---|
| 150 mm | 232 mm | 0...16 bar | - | 24VDC / 48V/50-60Hz | With integrated LED-yellow and VDR | - | - | - | BADA-150-SSTV-D0-ABS51-C001-03-C002-31-LV-2 |
| DN | Length | Pressure range | Voltage | Design | Connection | Flow rate at 6.3bar/Δp=1bar | Max. inlet pressure | Filter element | Suitable to series | Switch type | Contact material | Material of case | Function | Diameter Hose | Direction of flow control | Body | Screen | Voltage type | Description | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 150 mm | 232 mm | 0...16 bar | 230V/50-60Hz | With integrated LED-yellow, VDR and PVC-cable (2 m) | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 3/2-way solenoid valve - NAMUR type (NM32W1S-PR) Actuator PAS052-270 | BADA-150-SSTV-S0-ABS53-C001-22-C002-31-LVCV20-1 |
Flanged ball valve with pneumatic actuator Series BADA
Flange PN16; Body, Ball 1.4401; Seals PTFE/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar
| DN | Length | Pressure range | Function | Voltage | Design | Switch type | Material of case | Contact material | Type | Sequence |
|---|---|---|---|---|---|---|---|---|---|---|
| 150 mm | 232 mm | 0...16 bar | - | 24VDC / 48V/50-60Hz | With integrated LED-yellow, VDR and PVC-cable (2 m) | - | - | - | BADA-150-SSTV-D0-ABS51-C001-03-C002-31-LVCV20-2 | 25250104 |
| 150 mm | 232 mm | 0...16 bar | - | 24VDC / 48V/50-60Hz | Standard | Crouzet 831613 | Plastic | Silver-nickel | BADA-150-SSTV-D0-ABS52-C001-03-C002-31-6-EB0X01 | 25250105 |
Flanged ball valve with pneumatic actuator Series BADA
Flange PN16; Body, Ball 1.4401; Seals PTFE/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar
| DN | Length | Pressure range | Voltage | Design | Connection | Flow rate at 6.3bar/Δp=1bar | Max. inlet pressure | Filter element | Suitable to series | Switch type | Contact material | Material of case | Function | Diameter Hose | Direction of flow control | Body | Screen | Voltage type | Description | Type | Sequence |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 150 mm | 232 mm | 0...16 bar | 24VDC / 48V/50-60Hz | Standard | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 3/2-way solenoid valve - NAMUR type (NM32W1S-PR) Actuator PAS052-270 | BADA-150-SSTV-S0-ABS53-C001-03-C002-31-6 | 25250105 |
| 150 mm | 232 mm | 0...16 bar | 24VDC / 48V/50-60Hz | Standard | - | - | - | - | - | Crouzet 831613 | Silver-nickel | Plastic | - | - | - | - | - | - | - | BADA-150-SSTV-S0-ABS54-C001-03-C003-32-6-EB0X01 | 25250106 |
| 150 mm | 232 mm | 0...16 bar | 24VDC / 48V/50-60Hz | With integrated LED-yellow and VDR | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 3/2-way solenoid valve - NAMUR type (NM32W1S-PR) Actuator PAS052-270 | BADA-150-SSTV-S0-ABS53-C001-03-C002-31-LV-2 | 25250107 |
| 150 mm | 232 mm | 0...16 bar | 24VDC / 48V/50-60Hz | With integrated LED-yellow, VDR and PVC-cable (2 m) | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 3/2-way solenoid valve - NAMUR type (NM32W1S-PR) Actuator PAS052-270 | BADA-150-SSTV-S0-ABS53-C001-03-C002-31-LVCV20-2 | 25250108 |

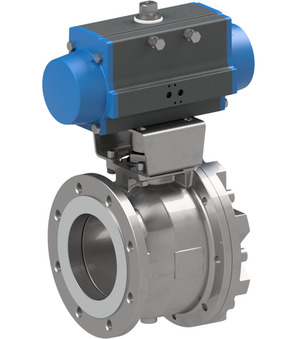

Flanged ball valve with pneumatic actuator Series BAEB, BAEA
Fire-safe; TA-Luft; Length According to EN558−1R27; Body, Ball 1.4408; Seals PTFE/Graphoil/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C
| DN | Length | Flange | Pressure range | Voltage | Design | Switch type | Function | Material of case | Contact material | Type | Sequence |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 15 mm | 115 mm | PN40 | 0...40 bar | - | - | - | - | - | - | BAEB-015-SSTV-D0 | 25260000 |
| 15 mm | 115 mm | PN40 | 0...40 bar | - | - | - | - | - | - | BAEB-015-SSTV-D0B | 25260003 |
| DN | Length | Flange | Pressure range | Voltage | Design | Switch type | Function | Material of case | Contact material | Type | Sequence |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 15 mm | 115 mm | PN40 | 0...40 bar | 24VDC / 48V/50-60Hz | Standard | Crouzet 831613 | - | Plastic | Silver-nickel | BAEB-015-SSTV-D0-ABS54-C001-03-C002-31-6-EB0X01 | 25260001 |
| 15 mm | 115 mm | PN40 | 0...40 bar | 230V/50-60Hz | Standard | - | - | - | - | BAEB-015-SSTV-D0B-ABS51-C001-22-C002-31-6 | 25260004 |
| 15 mm | 115 mm | PN40 | 0...40 bar | 230V/50-60Hz | With integrated LED-yellow and VDR | - | - | - | - | BAEB-015-SSTV-D0B-ABS51-C001-22-C002-31-LV-1 | 25260005 |
| 15 mm | 115 mm | PN40 | 0...40 bar | 230V/50-60Hz | With integrated LED-yellow, VDR and PVC-cable (2 m) | - | - | - | - | BAEB-015-SSTV-D0B-ABS51-C001-22-C002-31-LVCV20-1 | 25260006 |
| 15 mm | 115 mm | PN40 | 0...40 bar | 24VDC / 48V/50-60Hz | Standard | - | - | - | - | BAEB-015-SSTV-D0B-ABS51-C001-03-C002-31-6 | 25260007 |
| 15 mm | 115 mm | PN40 | 0...40 bar | 24VDC / 48V/50-60Hz | With integrated LED-yellow and VDR | - | - | - | - | BAEB-015-SSTV-D0B-ABS51-C001-03-C002-31-LV-2 | 25260008 |
