Ball valves - automatically operated

Category

Body, Ball Brass; Seals PTFE/FKM/EPDM; Control pressure 5,5...8bar; Medium temperature -20...+160°C; With mounted NAMUR solenoid valve

Ball valve with pneumatic actuator Series BAB1.BL.ABS

Female thread; Body Zinc plated steel; Ball Steel; Seals POM/NBR; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C

Ball valve with pneumatic actuator Series BAH1-UCPN-D0

Female thread; Body Zinc plated steel; Ball Steel; Seals POM/NBR; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C

Ball valve with pneumatic actuator Series BAH1-UCPN-S0

Male thread According to ISO 8434-1 (DIN 2353); Body Zinc plated steel; Ball Steel; Seals POM/NBR; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C

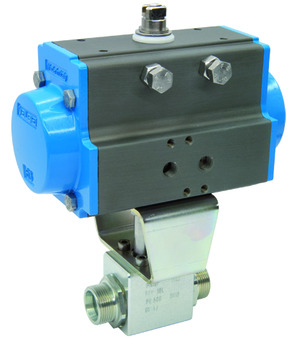

Ball valve with pneumatic actuator Series BAH7-D0

Male thread According to ISO 8434-1 (DIN 2353); Body Zinc plated steel; Ball Steel; Seals POM/NBR; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C

Ball valve with pneumatic actuator Series BAH7

Female thread; Body, Ball 1.4571; Seals PEEK/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C; For neutral gases

Ball valve with pneumatic actuator Series BAK1-D0

Female thread; Body, Ball 1.4571; Seals PEEK/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C; For hydraulic liquids

Ball valve with pneumatic actuator Series BAH1-SSKV-D0

Female thread; Body, Ball 1.4571; Seals PEEK/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C; For neutral gases

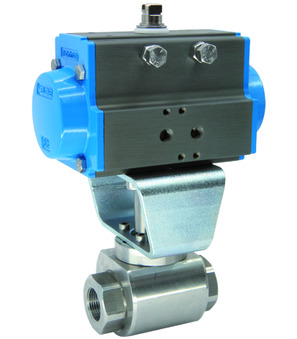

Ball valve with pneumatic actuator Series BAK1-S0

Female thread; Body, Ball 1.4571; Seals PEEK/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C; For hydraulic liquids

Ball valve with pneumatic actuator Series BAH1

Female thread 3-way-type; Sealing on two sides; Pressure inlet just in front; Body, Ball Steel; Seals POM/NBR; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C; Pressure range 0...350bar

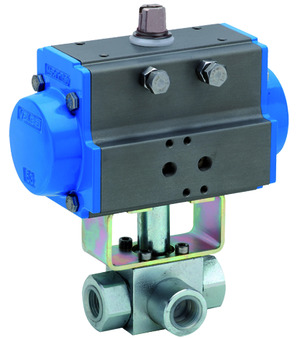

Ball valve with pneumatic actuator Series BAI1

Female thread 3-way-type; Sealing on two sides; Pressure inlet just in front; Body, Ball Steel; Seals POM/NBR; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C; Pressure range 0...350bar

Ball valve with pneumatic actuator Series BAI1

ATEX II 2 G/D; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Double acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C

Ball valve with pneumatic actuator Series BA081-D0-A

Flange PN40; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0…40bar

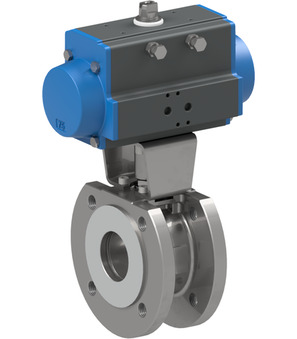

Flanged ball valve with pneumatic actuator Series BA052-D0

Flange PN40; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0…40bar

Flanged ball valve with pneumatic actuator Series BA052-S0

For steam; Flange PN16; Body Steel; Ball 1.4301; Seals PTFE-Graphite/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+198°C; Pressure range Steam 0...15bar

Flanged ball valve with pneumatic actuator Series BA079-S

For steam; Flange PN16; Body Steel; Ball 1.4301; Seals PTFE-Graphite/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+198°C; Pressure range Steam 0...15bar

Flanged ball valve with pneumatic actuator Series BA079-D

ATEX II 2 G/D; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FFKM; Single acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C

Ball valve with pneumatic actuator Series BA175-D

ATEX II 2 G/D; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FFKM; Double acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C

Ball valve with pneumatic actuator Series BA175-S

Fire-safe; TA-Luft; Length According to ANSI B16.10; Flange ANSI150; Full bore; Body 1.4408; Ball 1.4401; Seals PTFE/Graphoil/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...20bar

Flanged ball valve with pneumatic actuator Series BA178-D0

Fire-safe; TA-Luft; Length According to ANSI B16.10; Flange ANSI150; Full bore; Body 1.4408; Ball 1.4401; Seals PTFE/Graphoil/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...20bar

Flanged ball valve with pneumatic actuator Series BA178-S0

ATEX II 2 G/D; Fire-safe; TA-Luft; Length According to ANSI B16.10; Flange ANSI150; Full bore; Body 1.4408; Ball 1.4401; Seals PTFE/Graphoil/FKM; Double acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...20bar

Flanged ball valve with pneumatic actuator Series BA178-D0-A

ATEX II 2 G/D; Fire-safe; TA-Luft; Length According to ANSI B16.10; Flange ANSI150; Full bore; Body 1.4408; Ball 1.4401; Seals PTFE/Graphoil/FKM; Single acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...20bar

Flanged ball valve with pneumatic actuator Series BA178-S0-A

For steam; ATEX II 2 G/D; Full bore; Three-parts type; Female thread; Body Steel; Ball 1.4301; Seals PTFE-reinforced/FKM; Double acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -10...+198°C

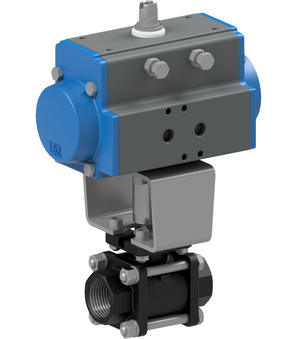

Ball valve with pneumatic actuator Series BA145-D0-A

ATEX II 2 G/D; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Single acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C

Ball valve with pneumatic actuator Series BA081-S0-A

ATEX II 2 G/D; Flange PN16; Body, Ball 1.4301; Seals PTFE; Double acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar; Also suitable for solvents

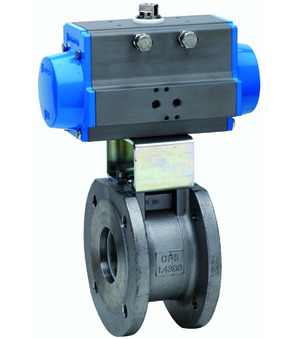

Flanged ball valve with pneumatic actuator Series BA160-D0-A

ATEX II 2 G/D; Flange PN16; Body, Ball 1.4301; Seals PTFE; Single acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar; Also suitable for solvents

Flanged ball valve with pneumatic actuator Series BA160-S0-A

Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Protection class IP68; ATEX II2GD ExdIIBT6Gb ExtbIIICT80°CDb

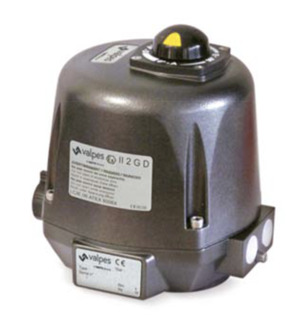

Electrical actuator Series VRX/VSX

Material Zinc plated steel

Mounting bridge

Material 1.4301

Mounting bridge

For steam; Female thread; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+198°C; Pressure range Steam 0...15bar

Ball valve with pneumatic actuator Series BA036-D0

For steam; Flange PN16; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+198°C; Pressure range Steam 0...15bar

Ball valve with pneumatic actuator Series BA050-D0

For steam; Flange PN16; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+198°C; Pressure range Steam 0...15bar

Ball valve with pneumatic actuator Series BA050-S0

Male thread According to DIN 8434-1 (DIN 2353); Body Zinc plated steel; Ball Steel; Seals PEEK/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+160°C

Ball valve with pneumatic actuator Series BA118-D0

With Heating jacket; Flange PN16; Body, Ball 1.4401; Seals PTFE/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar

Flanged ball valve with pneumatic actuator Series BA128-D

3-way-type; Sealing on two sides; Pressure inlet just in front; Reduced bore; Flange PN16; Body Steel; Ball 1.4301; Seals PTFE/FKM; Pressure range 0...16bar; Medium temperature -10...+160°C

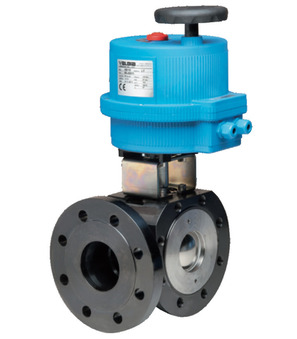

Ball valve with electrical actuator Series BA046, BA047-0

Flange PN40; Body Steel; Ball 1.4301; Seals PTFE-reinforced/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...40bar

Flanged ball valve with pneumatic actuator Series BA045-D

ATEX II 2 G/D; Fire-Safe/Antistatik According to ATEX/TA−Luft; Length According to EN558−1R27; Body 1.4408; Ball 1.4401; Seals PTFE/FKM; Double acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C

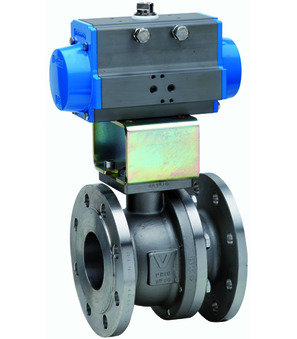

Flanged ball valve with pneumatic actuator Series BA132

Fire-Safe/Antistatik According to ATEX/TA−Luft; Length According to EN558−1R27; Body 1.4408; Ball 1.4401; Seals PTFE/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; ATEX

Flanged ball valve with pneumatic actuator Series BA132

Fire-Safe/Antistatik According to ATEX/TA−Luft; Length According to EN558−1R27; Body Zinc plated steel; Ball 1.4301; Seals fibre-glass-reinforced PTFE/FKM; Medium temperature -10...+160°C; Flange PN40

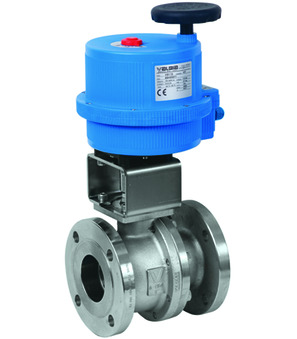

Flanged ball valve with electrical actuator Series BA115

Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature 0...+100°C; Incl. Positioner 4-20mA/0-10V

Ball valve with electrical actuator Series BA081

Female thread; Body Steel; Ball 1.4301; Seals PTFE/FKM; Medium temperature -10...+160°C; Incl. Positioner 4-20mA/0-10V

Ball valve with electrical actuator Series 8E004

Bare shaft; 3-way-type; Female thread; Full bore; Body 1.4404 Polished; Ball 1.4404; Seals MPTFE/FKM; Sealing on three ports; Medium temperature -20...+170°C

Ball valve made of stainless steel Series BA541, BA542

ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Seals FKM; Temperature range -20...+150°C

Pneumatic actuator Series PAD-H

Bare shaft; 3-way-type; Full bore; Body 1.4404 Polished; Ball 1.4404; Seals PTFE/FKM; Sealing on three ports; Medium temperature -20...+160°C

Flanged ball valve Series BA055, BA056

ATEX II 2 G/D T4; Bare shaft; 3-way-type; Female thread; Full bore; Body 1.4404 Polished; Ball 1.4404; Seals MPTFE/FKM; Sealing on three ports; Medium temperature -20...+170°C

Ball valve made of stainless steel Series BA541-B-A, BA542-A

ATEX II 2 G/D c T4; Bare shaft; 3-way-type; Female thread; Full bore; Body 1.4404 Polished; Ball 1.4404; Seals MPTFE/FKM; Sealing on three ports; Medium temperature -20...+60°C; Free of oil and grease for oxygen

Ball valve made of stainless steel Series BA541-A0, BA542-A0

ATEX II 2 G/D; Double acting; Rotation angle 180°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar

Pneumatic actuator Series PAD-180

Female thread; Body, Ball Steel; Seals POM/NBR; Medium temperature -20...+100°C

High pressure ball valve Series BA230-B

Flange; Body, Ball Steel; Seals POM/NBR; Medium temperature -20...+100°C

High pressure ball valve Series BA230-B

Male thread According to ISO 8434-1 (DIN 2353); Body, Ball Steel; Seals POM/NBR; Medium temperature -20...+100°C

High pressure ball valve Series BA230-L/S-B

Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C

Ball valve with pneumatic actuator Series BA069-D

ATEX II 2 G/D; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C

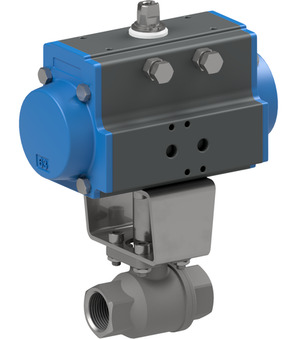

Ball valve with pneumatic actuator Series BA891-S0-A

Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C

Ball valve with pneumatic actuator Series BA069-S

ATEX II 2 G/D; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C

Ball valve with pneumatic actuator Series BA891-D0-A

Bare shaft; Female thread; Full bore; Body 1.4404 Polished; Ball 1.4404; Seals PTFE/EPDM-Special; Medium temperature -45...+150°C

Ball valve made of stainless steel Series BA125-B

Bare shaft; Body 1.4404 Polished; Ball 1.4404; Seals PTFE/EPDM-Special; Medium temperature -45...+150°C

Flanged ball valve Series BA545-B

Bare shaft; 3-way-type; Female thread; Full bore; Body 1.4404 Polished; Ball 1.4404; Seals MPTFE/EPDM-Special; Sealing on three ports; Medium temperature -45...+150°C

Ball valve made of stainless steel Series BA119, BA235

Bare shaft; 3-way-type; Full bore; Body 1.4404 Polished; Ball 1.4404; Seals PTFE/EPDM-Special; Sealing on three ports; Medium temperature -45...+150°C

Flanged ball valve Series BA549-B

Electrical actuator Series VB

Fire-Safe/Antistatik According to ATEX/TA−Luft; Length According to EN558−1R27; Body, Ball 1.4408; Seals PTFE/Graphoil/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C

Flanged ball valve with pneumatic actuator Series BA051-S0

ATEX II 2 G/D: Fire-Safe/Antistatik According to ATEX/TA−Luft; Length According to EN558−1R27; Body, Ball 1.4408; Seals fibre-glass-reinforced PTFE/FKM; Single acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C

Flanged ball valve with pneumatic actuator Series BA132

ATEX II 2 G/D; Bare shaft; Fire-safe/ATEX-Antistatic design; Full bore; Three-parts type; Butt weld ends; Body, Ball 1.4408; Seals PTFE-reinforced/Graphite/FKM; Silicone-free; Medium temperature -30...+180°C

Ball valve made of stainless steel Series BA133-B-A

;ATEX II 2 G/D; Butt weld ends; Fire-safe/ATEX-Antistatic design; Body, Ball 1.4408; Seals PTFE-reinforced/Graphite/FKM; Silicone-free; Single acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -30...+180°C

Ball valve with pneumatic actuator Series BA133-A

ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; NPT/UNC

Pneumatic actuator Series PAS-U

Electrical actuator Series VRX/VSX

;Protection class IP68; ATEX II 2 G/D ExdIIBT6Gb ExtbIIICT80°CDb; Incl. Accumulator for safety position NC; Length According to EN558−1R27; Body, Ball 1.4408; Seals PTFE/Graphoil/FKM; Medium temperature -20...+160°C

Flanged ball valve with electrical actuator Series BA051

Electrical actuator Series VRX/VSX

ATEX II 2 G/D; Flange PN16; Body Steel; Ball 1.4301; Seals PTFE/FKM; Single acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar

Flanged ball valve with pneumatic actuator Series BA043-S0

ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Seals FKM; Temperature range -20...+150°C

Pneumatic actuator Series PAS-H

ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Inverse direction of rotation

Pneumatic actuator Series PAS-A

ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Seals Silicone; Temperature range -40...+85°C

Pneumatic actuator Series PAS-L

ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; PTFE-coated; Pinion stainless steel AISI304

Pneumatic actuator Series PAS-PS

ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Completely made of stainless steel

Pneumatic actuator Series PAS-SS

ATEX II 2 G/D c T6; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Pinion stainless steel AISI304

Pneumatic actuator Series PAS-S

ATEX II 2 G/D; Single acting; Rotation angle 90° Adjustable; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar

Pneumatic actuator Series PAS-R

Female thread; Drilled for mounting an actuator; Body Zinc plated steel; Ball Steel; Seals POM/NBR; Medium temperature -20...+100°C;

High pressure ball valve Series BA233

Male thread according to DIN 2353; Drilled for mounting an actuator; Body Zinc plated steel; Ball Steel; Seals POM/NBR; Medium temperature -20...+100°C

High pressure ball valve Series BA233

Square adapter Series VK

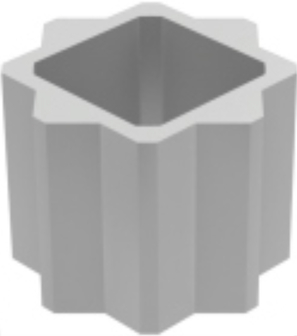

Reducing adapter Series STSQ

ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Seals Silicone; Temperature range -40...+85°C

Pneumatic actuator Series PAD-L

Suitable for Series PAD

Manual emergency override

For steam; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Single acting actuator; Control pressure 5,5...8bar; ; Medium temperature -20...+198°C; Pressure range Steam 0...15bar

Ball valve with pneumatic actuator Series BA091-S0

Butt weld ends; Body Steel; Ball 1.4301; Seals PTFE/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+160°C; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness

Ball valve with pneumatic actuator Series BA029

Metal; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Protection class IP68; Incl. Positioner 4-20mA/0-10V; inkl. Accumulator for safety position NC

Electrical actuator Series VB

Flange PN40; Body Steel; Ball 1.4301; PTFE-reinforced/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...40bar

Flanged ball valve with pneumatic actuator Series BA045-S

Pneumatically; 3/2-way; NC; Mechanically operated

Mounting bracket Suitable for Limit switch

ATEX II 2 G/D; Double acting; Rotation angle 180°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Seals FKM; Temperature range -20...+150°C; Pinion made of stainless steel 1.4305

Pneumatic actuator Series PAD-HS

ATEX II 2 G/D T4; 3-way-type; Sealing on three ports; Body 1.4404 Polished; Ball 1.4404; Seals MPTFE/FKM; Double acting actuator ATEX II 2 G/D c T6; Full bore; Control pressure 5,5...8bar; Medium temperature -20...+170°C

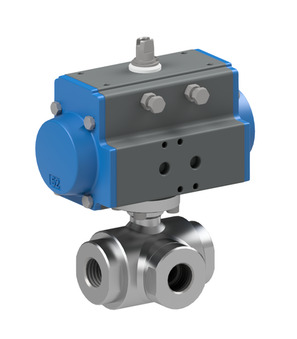

Ball valve with pneumatic actuator Series BA541-D0-A, BA542-D0-A

ATEX II 2 G/D c T4; 3-way-type; Sealing on three ports; Body 1.4404 Polished; Ball 1.4404; Seals MPTFE/FKM; Single acting actuator ATEX II 2 G/D c T6; Full bore; Control pressure 5,5...8bar; Medium temperature -20...+170°C

Ball valve with pneumatic actuator Series BA541-S0-A, BA542-S0-A

Butt weld ends; Body Steel; Ball 1.4301; Seals PTFE-reinforced/FKM; Double acting actuator, Oversized; Control pressure 5,5...8bar; Medium temperature -10...+198°C

Ball valve with pneumatic actuator Series BA078-D0B/D01

ATEX II 2 G/D; Butt weld ends; Body Steel; Ball 1.4301; Seals PTFE-reinforced/FKM; Double acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -10...+198°C

Ball valve with pneumatic actuator Series BA078-D0B/D01-A

Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Double acting actuator, Oversized; Control pressure 5,5...8bar; Medium temperature -20...+198°C

Ball valve with pneumatic actuator Series BA091-D0B/D01

ATEX II 2 G/D; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Double acting actuator ATEX II 2 G/D c T6, Oversized; Control pressure 5,5...8bar; Medium temperature -20...+198°C

Ball valve with pneumatic actuator Series BA091-D0B/D01-A

Female thread; Drilled for mounting an actuator; Body, Ball 1.4571/1.4404; Seals POM/NBR; For liquids; Medium temperature -30...+100°C

High pressure ball valve Series BA234-B

Male thread According to ISO 8434-1 (DIN 2353); Drilled for mounting an actuator; Body, Ball 1.4571/1.4404; Seals POM/NBR; For liquids; Medium temperature -30...+100°C

High pressure ball valve Series BA234-L/S-B

Male thread according to ISO 8434-1 (DIN 2353); Drilled for mounting an actuator; Body, Ball 1.4571/1.4404; Seals PEEK/FKM; Medium temperature -20...+200°; For liquids

High pressure ball valve Series BA243

Bare shaft; Full bore; Female thread; Seal PTFE/FKM/EPDM; Medium temperature -20...+160°C

Ball valve made of brass Series 2500

Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override

Electrical actuator Series J4C

ATEX II 2 G/D; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Double acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C

Ball valve with pneumatic actuator Series BA033-D0-A

ATEX II 2 G/D; Flange PN16, Full bore; Body, Ball 1.4401; Seals PTFE/FKM; Pressure range 0...16bar; Double acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C

Ball valve with pneumatic actuator Series BA137

ATEX II 2 G/D; Fire-safe; TA-Luft; Length According to EN558−1R27; Body Zinc plated steel; Ball 1.4301; Seals PTFE/Graphoil/FKM; Single acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -10...+160°C

Flanged ball valve with pneumatic actuator Series BA044-S0-A

Fire-safe; TA-Luft; Length According to EN558−1R27; Body Zinc plated steel; Ball 1.4301; Seals PTFE/Graphoil/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+160°C

Flanged ball valve with pneumatic actuator Series BA044-D0

Electrical actuator Series VB-UL

ATEX II 2 G/D T4; Bare shaft; 3-way-type; Full bore; Body 1.4404 Polished; Ball 1.4404; Seals PTFE/FKM; Sealing on three ports; Medium temperature -20...+160°C

Flanged ball valve Series BA055, BA056-ATEX

ATEX II 2 G/D T4; 3-way-type; Sealing on three ports; Body 1.4404 Polished; Ball 1.4404; Seals PTFE/FKM; Double acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C

Flanged ball valve with pneumatic actuator Series BA055-D-A, BA056-D-A

ATEX II 2 G/D; TA-Luft; Flange PN40; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Single acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0…40bar

Flanged ball valve with pneumatic actuator Series BA052-S0-A

Bare shaft; Full bore; Female thread; Seal PTFE/FKM/EPDM; Medium temperature -20...+160°C

Ball valve made of brass Series BA080-B

Bare shaft; Female thread; Full bore; Body 1.4404 Polished; Ball 1.4404; Seals MPTFE/PTFE/FKM; Medium temperature -20...+170°C

Ball valve made of stainless steel Series BA168-B

ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar

Pneumatic actuator Series PAS

ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Pinion turned by 90°

Pneumatic actuator Series PAS-B

Electrical actuator Series VB-AKKU-POS

ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Seals FKM; Temperature range -20...+150°C; Inverse direction of rotation

Pneumatic actuator Series PAD-HA

Metal; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. Positioner 4-20mA/0-10V; Incl. manual emergency override

Electrical actuator Series VB-M-R

Flange PN16; Body, Ball 1.4401; Seals PTFE/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness

Flanged ball valve with pneumatic actuator Series BA049-S0-3C

ATEX II 2 G/D; TA-Luft; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Single acting actuator ATEX II 2G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C

Ball valve with pneumatic actuator Series BA034-S0-A

ATEX II 2 G/D; TA-Luft; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Double acting actuator ATEX II 2G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C

Ball valve with pneumatic actuator Series BA034-D0-A

Electrical actuator Series VB-AKKU

Female thread; Drilled for mounting an actuator; Body Zinc plated steel; Ball Steel; Seals POM/EPDM; Medium temperature -20...+100°C

High pressure ball valve Series BA268-B

Female thread; Body Zinc plated steel; Ball Steel; Seals POM/EPDM-Perox; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+100°C; For liquids

Ball valve with pneumatic actuator Series BA268-S0

For steam; Three-parts type; Female thread; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Pressure range Steam 0...15bar; Medium temperature -20...+198°C

Ball valve with electrical actuator Series BA036

3-way-type; Sealing on three ports; Body, Ball 1.4401; Seals PTFE; Reduced bore; Medium temperature -20...+160°C

Ball valve with electrical actuator Series BA037, BA038

3-way-type; Sealing on three ports; Body, Ball 1.4401; Seals PTFE; Double acting actuator; Reduced bore; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...64bar

Ball valve with pneumatic actuator Series BA037, BA038-D0

3-way-type; Sealing on three ports; Body, Ball 1.4401; Seals PTFE; Single acting actuator; Reduced bore; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...64bar

Ball valve with pneumatic actuator Series BA037, BA038

Female thread; Drilled for mounting an actuator; Body Zinc plated steel; Ball Steel; Seals POM/NBR; Medium temperature -20...+100°C; Flange Bolt circle 36mm, Distance of the mounting holes 18x31,2mm

High pressure ball valve Series BA233

Male thread according to DIN 2353; Drilled for mounting an actuator; Body Zinc plated steel; Ball Steel; Seals POM/NBR; Medium temperature -20...+100°C; Flange Bolt circle 36mm, Distance of the mounting holes 18x31,2mm

High pressure ball valve Series BA233

; 1.4305

Bolt

; 1.4305

Bolt

ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Seals FKM; Temperature range -20...+150°C; Pinion turned by 90°

Pneumatic actuator Series PAD-HB

ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Seals FKM; Pinion turned by 90°

Pneumatic actuator Series PAD-B

ATEX II 2 G/D; Fire-safe; TA-Luft; Length According to EN558−1R101; Flange PN100, Full bore; Body steel A350-LF2, Ball 1.4301; Seals PTFE-metal reinforced/FKM/Graphite; Pressure range 0...100bar;Single acting actuator ATEX II 2G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C

Ball valve with pneumatic actuator Series BA179-S0-A

Length According to EN558−1R24; Flansch PN16; Body Cast iron EN-GJL-250; Ball 1.4301; Seals PTFE/NBR; Medium temperature -10...+120°C; Pressure range 0…16bar

Flanged ball valve with electrical actuator Series BA040

ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Incl. Technical valve passport RU According to TR CU 032/2013; Incl. TR CU 032/2013 (Incl. Strength calculation), TR CU 010/2011; Incl. EAC-Certificate

Pneumatic actuator Series PAS-3M

Metal; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Incl. Technical valve passport RU According to TR CU 032/2013; Incl. TR CU 032/2013 (Incl. Strength calculation), TR CU 010/2011; Incl. EAC-Certificate

Electrical actuator Series VB

ATEX II 2 G/D; Fire-safe; TA-Luft; Length According to EN558−1R1; Body, Ball 1.4408; Seals PTFE/Graphoil/FKM; Single acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C

Flanged ball valve with pneumatic actuator Series BA073-S0-A

For steam; Female thread; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Single acting actuator; Control pressure 5,5...8bar; Pressure range Steam 0...14bar; Medium temperature -20...+198°C

Ball valve with pneumatic actuator Series BA036-S0

Flange PN16; Body Steel; Ball 1.4301; Seals PTFE/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar

Flanged ball valve with pneumatic actuator Series BA043-D0

ATEX II 2 G/D; Bare shaft; Flange PN16; Full bore; Body Steel A352-LCB, Ball stainless steel 1.4301; Seals MPTFE/PTFE/FKM; Pressure range 0...16bar; Medium temperature -20...+180°C

Flanged ball valve Series BA353-B-A

ATEX II 2 G/D; Bare shaft; Flange PN16; Full bore; Body, Ball 1.4401; Seals MPTFE/PTFE/FKM; Pressure range 0...16bar; Medium temperature -20...+180°C

Flanged ball valve Series BA282-B-A

ATEX II 2 G/D; Flange PN16; Body, Ball 1.4401; Seals MPTFE/PTFE/FKM; Double acting actuator ATEX II 2G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+180°C; Pressure range 0...16bar

Flanged ball valve with pneumatic actuator Series BA282

ATEX II 2 G/D; Flange PN16; Body, Ball 1.4401; Seals MPTFE/PTFE/FKM; Single acting actuator ATEX II 2G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+180°C; Pressure range 0...16bar

Flanged ball valve with pneumatic actuator Series BA282

ATEX II 2 G/D; Flange PN16; Body Steel A352-LCB; Ball 1.4301; Seals MPTFE/PTFE/FKM; Double acting actuator ATEX II 2G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+180°C; Pressure range 0...16bar

Flanged ball valve with pneumatic actuator Series BA353

ATEX II 2 G/D; Flange PN16; Body Steel A352-LCB; Ball 1.4301; Seals MPTFE/PTFE/FKM; Single acting actuator ATEX II 2G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+180°C; Pressure range 0...16bar

Flanged ball valve with pneumatic actuator Series BA353

ATEX zone 0 and 20; Female thread; Body Zinc plated steel; Ball Steel; Seals POM/NBR; Double acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -10...+100°C

Ball valve with pneumatic actuator Series BAH1-A

ATEX zone 0 and 20; Bare shaft; Female thread; Body, Ball 1.4571; Seals PEEK/FKM; For liquids; Medium temperature -20...+100°C

High pressure ball valve Series BA066-B-A

ATEX zone 1 and 21; Female thread; Body, Ball 1.4571; Seals PEEK/FKM; Double acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -10...+100°C; For liquids

Ball valve with pneumatic actuator Series BA066-D0-A

Female thread; Body, Ball 1.4571; Seals PEEK/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C; For liquids

Ball valve with pneumatic actuator Series BA066-D0

1.4301; According to ISO4017

Hexagon head screw Series SW002-I

1.4301; According to DIN127

Spring washer Series SWA004-I

3-way-type; Sealing on two sides; Pressure inlet just in front; Female thread; Body, Ball Stainless steel 1.4571/1.4404; Seals POM/NBR; Medium temperature -30...+100°C; For liquids

High pressure ball valve Series BA696-B

Bare shaft; 3-way-type; Female thread; Full bore; Body 1.4404 Polished; Ball 1.4404; Seals PTFE-metal reinforced/FKM; Sealing on three ports; Medium temperature -20...+200°C

Ball valve made of stainless steel Series BA355, BA388

Bare shaft; 3-way-type; Sealing on three ports; Female thread; Body, Ball 1.4571; Seals PEEK/FKM-Low temperature; With erosion protection ring; Medium temperature -30...+200°C (151...+200°C Max. 95bar)

High pressure ball valve Series BA351-B

3-way-type; Sealing on three ports; Female thread; Body, Ball 1.4571; Seals PEEK/FKM-Low temperature; With erosion protection ring; Medium temperature -30...+200°C (151...+200°C Max. 95bar)

Ball valve with electrical actuator Series BA351

ATEX II 2 G/D; Flange PN16; Body, Ball 1.4401; Seals PTFE/FKM; Double acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar

Flanged ball valve with pneumatic actuator Series BA049-D0-A

Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C

Ball valve with pneumatic actuator Series BA033-D0

ATEX II 2 G/D; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Single acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C

Ball valve with pneumatic actuator Series BA033-S0-A

For steam; Flange PN40; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+187°C; Pressure range Steam 0...11bar

Ball valve with pneumatic actuator Series BA130

; Bare shaft; 3-way-type; Sealing on two sides; Pressure inlet just in front; Female thread; Body, Ball Stainless steel 1.4571; Seals POM/NBR; Medium temperature -30...+100°C; For liquids

High pressure ball valve Series BA696-B

ATEX II 2 G/D; Flange PN16; Body Steel; Ball 1.4301; Seals PTFE/FKM; Double acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar

Flanged ball valve with pneumatic actuator Series BA043-A

ATEX II 2 G/D; Female thread; Body Steel; Ball 1.4301; Seals PTFE/FKM; Double acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -10...+160°C

Ball valve with pneumatic actuator Series BA028-A

ATEX II 2 G/D; Female thread; Body Steel; Ball 1.4301; Seals PTFE/FKM; Single acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -10...+160°C

Ball valve with pneumatic actuator Series BA028-A

ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; PTFE coated

Pneumatic actuator Series PAD-P

Butt weld ends ISO 11850; Body, Ball 1.4401; Seals PTFE/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+170°C

Kugelhahn mit Druckluftdrehantrieb Serie BA446-S0AH

Ball valve with pneumatic actuator Series BA446-S0AH

Female thread; Body, Ball 1.4401; Seals PTFE/EPDM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C

Ball valve with pneumatic actuator Series BA440

Fire-safe; TA-Luft; Flange PN16; Body Steel; Ball 1.4301; Seals PTFE-Graphite/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar

Flanged ball valve with pneumatic actuator Series BA106-D0

Fire-safe; TA-Luft; Flange PN16; Body Steel; Ball 1.4301; Seals PTFE-Graphite/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar

Flanged ball valve with pneumatic actuator Series BA106-S0

ATEX II 2 G/D; Fire-safe; TA-Luft; Flange PN16; Body Steel; Ball 1.4301; Seals PTFE-Graphite/FKM; Double acting actuator ATEX II 2 G/D; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar

Flanged ball valve with pneumatic actuator Series BA106-S0-A

Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C

Ball valve with pneumatic actuator Series BA081-D0

Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C

Ball valve with pneumatic actuator Series BA081-S0

Electrical actuator Series VR/VS

Electrical actuator Series ER

Electrical actuator Series VR/VS

Female thread; Body, Ball Stainless steel AISI 316; Seals PTFE-Reinforced with carbographite/EPDM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -40...+160°C

Ball valve with pneumatic actuator Series BA364-D0

Female thread; Body, Ball Stainless steel AISI 316; Seals PTFE-Reinforced with carbographite/EPDM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -40...+160°C

Ball valve with pneumatic actuator Series BA364-S0

Metal; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Incl. Positioner 4...20mA/0...10V

Electrical actuator Series VB

Bare shaft; Full bore; Body 1.4404 Polished; Ball 1.4404; Seals MPTFE/FKM; Medium temperature -20...+170°C

Flanged ball valve Series BA272

Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Free of oil and grease for oxygen

Ball valve with pneumatic actuator Series BA033-D0-0

Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Free of oil and grease for oxygen

Ball valve with pneumatic actuator Series BA033-S0-0

For steam; ATEX II 2 G/D; Female thread; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Single acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Pressure range Steam 0...14bar; Medium temperature -20...+198°C

Ball valve with pneumatic actuator Series BA036-S0-A

ATEX II 2G/D; Flange PN16; Body, Ball 1.4401; Seals PTFE/FKM; Single acting actuator ATEX II 2G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar

Flanged ball valve with pneumatic actuator Series BA049-S0-A

Flange PN16; Body, Ball 1.4401; Seals PTFE/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar

Flanged ball valve with pneumatic actuator Series BA049-D0

ATEX II 2 G/D; Fire-safe; TA-Luft; Length According to EN558−1 R27; Body, Ball 1.4408; Seals TFM-MPTFE/PTFE/Graphoil; Stem sealing V-Pack; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -40...+180°C

Flanged ball valve with pneumatic actuator Series BA368-D0-A

ATEX II 2 G/D; Bare shaft; Flange PN16; Full bore; Body, Ball 1.4401; Seals TFM-MPTFE-Thickness Reduced/FFKM; Pressure range 0...16bar; Medium temperature -20...+180°C

Flanged ball valve Series BA496-B-A

Bare shaft; Full bore; Body 1.4404 Polished; Ball 1.4404; Seals MPTFE/EPDM; Medium temperature -20...+150°C

Flanged ball valve Series BA734

Other materiales - A03

Female thread; Double acting actuator; Body, Ball 1.4571/1.4404; Seals POM/NBR; For hydraulic liquids; Medium temperature -30...+100°C

High pressure ball valve Series BA234-D0

Male thread According to ISO 8434-1 (DIN 2353); Double acting actuator; Body, Ball 1.4571/1.4404; Seals POM/NBR; For hydraulic liquids; Medium temperature -30...+100°C

High pressure ball valve Series BA234-L/S-D0

Male thread According to ISO 8434-1 (DIN 2353); Single acting actuator; Body, Ball 1.4571/1.4404; Seals POM/NBR; For hydraulic liquids; Medium temperature -30...+100°C

High pressure ball valve Series BA234-L/S-S0

Female thread; Single acting actuator; Body, Ball 1.4571/1.4404; Seals POM/NBR; For hydraulic liquids; Medium temperature -30...+100°C

High pressure ball valve Series BA234-S0

Flange PN16; Body, Ball 1.4301; Seals PTFE/FKM; Medium temperature -20...+160°C

Flanschkugelhahn mit Elektroantrieb Serie BA048

Flanged ball valve with electrical actuator Series BA048

ATEX zone 1 and 21; Female thread; Body, Ball 1.4571; Seals PEEK/FKM; Single acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -10...+100°C; For liquids

Ball valve with pneumatic actuator Series BA066-S0-A

ATEX II 2 G/D; Bare shaft; Full bore; Three-parts type; Female thread; Body, Ball 1.4404; Seals PTFE/EPDM; Medium temperature -20...+150°C

Ball valve made of stainless steel Series BA486-B-A

ATEX II 2 G/D; Bare shaft; Full bore; Three-parts type; Female thread; Body, Ball 1.4404; Seals PTFE/EPDM; Medium temperature -20...+150°C; Free of oil and grease for hydrogen

Ball valve made of stainless steel Series BA486-B-AH

ATEX II 2 G/D; Bare shaft; Full bore; Three-parts type; Female thread; Body, Ball 1.4404; Seals PTFE/EPDM; Medium temperature -20...+150°C; Free of oil and grease for hydrogen; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness

Ball valve made of stainless steel Series BA486-B-AH3C

Design

Loading...
Voltage

Loading...
Pressure range

Loading...
DN

Loading...
Material of case

Loading...
Ball

Loading...
Flange

Loading...
Function

Loading...
Connection

Loading...
Female thread

Loading...
Male thread

Loading...
Diameter

Loading...
Butt weld ends

Loading...
Type

Loading...
Thread

Loading...
Tags
- Verpackungsmaterial/EPR-Recycling

Reset

Other materiales - A03

Ball valve with pneumatic actuator Series BAL1, BAT1

3-way-type; Sealing on three ports; Body, Ball Brass; Seals PTFE/FKM/EPDM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C

Kugelhahn mit Druckluftdrehantrieb Serie BAL1, BAT1

To Series: Ball valve with pneumatic actuator Series BAL1, BAT1

Varianten

Female thread	DN	Length	Ball	Pressure range	Voltage	Design	Switch type	Contact material	Material of case	Type	Sequence
RP 1/2"	15 mm	77 mm	T	0...30 bar	24VDC / 48V/50-60Hz	Standard	-	-	-	BAT1-004-BLTV-D0B-ABS51-C001-03-C002-31-6	24980043
RP 1/2"	15 mm	77 mm	L	0...30 bar	24VDC / 48V/50-60Hz	Standard	-	-	-	BAL1-004-BLTV-D0B-ABS51-C001-03-C002-31-6	24980053
RP 3/4"	20 mm	87 mm	L	0...30 bar	24VDC / 48V/50-60Hz	Standard	Crouzet 831613	Silver-nickel	Plastic	BAL1-005-BLTV-D0-ABS51-C001-03-C002-31-6-EB0X01	24980070

BAL1-007-BLTV-S0-ABS53-C001-03-C002-31-LV-2

BAL1-007-BLTV-S0
Ball valve with pneumatic actuator Series BAL1, BAT1; 3-way-type; Sealing on three ports; Body, Ball Brass; Seals PTFE/FKM/EPDM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 11/4"; Nominal diameter 32mm; Pressure range 0-10bar; Length 122,5mm; Actuator PAS0635; Ball L
ABS53
Mounted pilot valve Series ABS; NAMUR; Silencer; Standard coil C001; Connector size 22mm; 3/2-way-NAMUR-Solenoid valve (NM32W1S-PR); Actuator PAS052-270
C001-03
Coil Type C001; Connector size 22mm; Voltage 24VDC / 48V/50-60Hz
C002-31-LV-2
Connector; Connector size 22mm; With integrated LED-yellow and VDR; Voltage 24VAC/DC

To Series: Ball valve with pneumatic actuator Series BAL1, BAT1

Female thread	DN	Length	Ball	Pressure range	Voltage	Design	Type
RP 1 1/4"	32 mm	122,5 mm	L	0...10 bar	24VDC / 48V/50-60Hz	With integrated LED-yellow and VDR	BAL1-007-BLTV-S0-ABS53-C001-03-C002-31-LV-2

Ball valve with pneumatic actuator Series BAB1

Body, Ball Brass; Seals PTFE/FKM/EPDM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C

Kugelhahn mit Druckluftdrehantrieb Serie BAB1

To Series: Ball valve with pneumatic actuator Series BAB1

Varianten

Female thread	DN	Length	Pressure range	Voltage	Design	Switch type	Contact material	Material of case	Function	Diameter Hose	Connection	Direction of flow control	Body	Screen	Diameter	Male thread	Flow rate	Actuation	Flow rate at 6.3bar/Δp=1bar	Max. inlet pressure	Stroke	Piston rod thread	Push force at 6 bar	Seal	Type	Sequence
RP 3/4"	20 mm	76 mm	0...40 bar	-	-	-	-	-	-	6 mm	1/8"	From thread to hose (outgoing air)	Nickel plated brass	Edelstahl	-	-	-	-	-	-	-	-	-	-	BAB1-005-BLTV-S0-UFC05-C-18-06-SLS-M18-NS	25000027
RP 1"	25 mm	90 mm	0...40 bar	-	-	-	-	-	-	6 mm	1/8"	From thread to hose (outgoing air)	Nickel plated brass	Edelstahl	-	-	-	-	-	-	-	-	-	-	BAB1-006-BLTV-S0-UFC05-C-18-06-SLS-M18-NS	25000041
RP 1"	25 mm	90 mm	0...40 bar	24VDC / 48V/50-60Hz	Standard	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	BAB1-006-BLTV-S0-ABS53-C001-03-C002-31-6	25000047
RP 1"	25 mm	90 mm	0...40 bar	24VDC / 48V/50-60Hz	Standard	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	BAB1-006-BLTV-S0-ABS53-C001-03-C002-31-6-MS-2P-052100-IFM001	25000048
RP 1"	25 mm	90 mm	0...40 bar	24VDC / 48V/50-60Hz	Standard	IN5225	-	Plastic	NO PNP	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	BAB1-006-BLTV-S0-ABS53-C001-03-C002-31-6-EB0X92	25000049

Ball valve with pneumatic actuator Series BAC1

Female thread; Body Steel; Ball 1.4301; Seals PTFE/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+160°C

Kugelhahn mit Druckluftdrehantrieb Serie BAC1

To Series: Ball valve with pneumatic actuator Series BAC1

Varianten

Female thread	DN	Length	Pressure range	Voltage	Design	Switch type	Contact material	Material of case	Type	Sequence
RP 1"	25 mm	92 mm	0...40 bar	24VDC / 48V/50-60Hz	Standard	Crouzet 831613	Silver-nickel	Plastic	BAC1-006-CITV-D0-ABS51-C001-03-C002-31-6-EB0X01	25000051
RP 3"	80 mm	180 mm	0...16 bar	24VDC / 48V/50-60Hz	Standard	-	-	-	BAC1-011-CITV-D0-ABS52-C001-03-C002-31-6	25000099

Ball valve with pneumatic actuator Series BAB1

Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C

To Series: Ball valve with pneumatic actuator Series BAB1

Varianten

Female thread	DN	Length	Pressure range	Voltage	Design	Switch type	Contact material	Material of case	Type	Sequence
RP 1/2"	15 mm	67 mm	0...64 bar	-	-	Crouzet 831613	Silver-nickel	Plastic	BAB1-004-SSTV-D0B-EB0X01	25060003
RP 1"	25 mm	90 mm	0...64 bar	-	-	Crouzet 831613	Silver-nickel	Plastic	BAB1-006-SSTV-D0B-EB0X01	25060024
RP 1 1/2"	40 mm	112 mm	0...40 bar	-	-	Crouzet 831613	Silver-nickel	Plastic	BAB1-008-SSTV-D0-EB0X01	25060046
RP 2"	50 mm	135 mm	0...40 bar	-	-	Crouzet 831613	Silver-nickel	Plastic	BAB1-009-SSTV-D0-EB0X01	25060057

Ball valve with pneumatic actuator Series BAB1

Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C

To Series: Ball valve with pneumatic actuator Series BAB1

Varianten

Female thread	DN	Length	Pressure range	Switch type	Contact material	Material of case	Voltage	Design	Diameter Hose	Connection	Direction of flow control	Body	Screen	Type	Sequence
RP 1 1/4"	32 mm	100 mm	0...40 bar	Crouzet 831613	Silver-nickel	Plastic	-	-	-	-	-	-	-	BAB1-007-SSTV-S0-EB0X01	25070030
RP 1 1/2"	40 mm	112 mm	0...40 bar	-	-	-	-	-	6 mm	1/8"	From thread to hose (outgoing air)	Nickel plated brass	Edelstahl	BAB1-008-SSTV-S0-UFC05-C-18-06-SLS-M18-NS	25070033

Ball valve with pneumatic actuator Series BAC1

Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C

To Series: Ball valve with pneumatic actuator Series BAC1

Varianten

Female thread	DN	Length	Pressure range	Function	Switch type	Contact material	Material of case	Voltage	Design	Diameter	Connection	Type	Sequence
RP 1/4"	8 mm	57 mm	0...64 bar	-	-	-	-	24VDC / 48V/50-60Hz	-	8 mm	-		25100006
RP 1/2"	15 mm	65 mm	0...64 bar	-	Crouzet 831613	Silver-nickel	Plastic	-	-	-	-	BAC1-004-SSTV-D0B-EB0X01	25100032
RP 1/2"	15 mm	65 mm	0...64 bar	NO PNP	P&F NBN3-F25F-E8	-	Plastic	-	-	-	-	BAC1-004-SSTV-D0B-EB0X13	25100033

Guest

My Cart

My Wishlist

My Account

My Orders

Price List

Edit Profile

Manage Payment Methods

Change Password

Logout

Filters

My Cart

My Wishlist

Ball valves - automatically operated

Design

Voltage

Pressure range

DN

Material of case

Ball

Flange

Function

Connection

Female thread

Male thread

Diameter

Butt weld ends

Type

Thread

Tags

Other materiales - A03

Ball valve with pneumatic actuator Series BAL1, BAT1

BAL1-007-BLTV-S0-ABS53-C001-03-C002-31-LV-2

Ball valve with pneumatic actuator Series BAB1

Ball valve with pneumatic actuator Series BAC1

Ball valve with pneumatic actuator Series BAB1

Ball valve with pneumatic actuator Series BAB1

Ball valve with pneumatic actuator Series BAC1

Social media
