Check valves

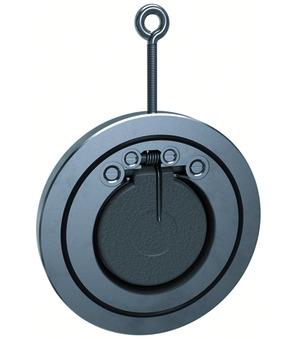

Swing check valve Series CM-6666
Wafer type; Reset by spring; Body, Disc 1.4401; Seal FKM; Medium temperature -50…+260°C
Data sheets, CAD files and further documents are available with the respective variant.
11Articles
Store guide
Other series
Axial type check valve Series 100000
Axial type check valve Series 100001
Strainer Series 110100
Axial type check valve Series 227
Axial type check valve Series 228
Axial type check valve Series 304,CH014-V
Strainer Series ST304
Axial type check valve Series VX23
Axial type check valve Series 316
Angle seat check valve Series 1072
Angle seat check valve Series CH117
Angle seat check valve Series 4000
Check valve Series CH009
Swing check valve Series CS-2466/CS-2424
Swing check valve Series CS-6666
Swing check valve Series CM-2466/CM-2424
Swing check valve Series CM-6666
All prices exclude tax.
Grundversion
| Availability | Price | Quantity | |||||
|---|---|---|---|---|---|---|---|
CM-6666V-32
Specifications
|
32 mm | 14 mm | PN10/16/25/40, ANSI300 | -20...+150 °C | 23.042,00 din. | ||
CM-6666V-40
Specifications
|
40 mm | 14 mm | PN10/16/25/40, ANSI300 | -20...+150 °C | 23.300,00 din. | ||
CM-6666V-50
Specifications
|
50 mm | 14 mm | PN10/16/25/40, ANSI300 | -20...+150 °C | 25.932,00 din. | ||
CM-6666V-65
Specifications
|
65 mm | 14 mm | PN10/16/25/40, ANSI300 | -20...+150 °C | 30.562,00 din. | ||
CM-6666V-80
Specifications
|
80 mm | 14 mm | PN10/16/25/40, ANSI300 | -20...+150 °C | 35.191,00 din. | ||
CM-6666V-100
Specifications
|
100 mm | 18 mm | PN10/16 | -20...+150 °C | 47.846,00 din. | ||
CM-6666V-125
Specifications
|
125 mm | 18 mm | PN10/16, ANSI150 | -20...+150 °C | 55.484,00 din. | ||
CM-6666V-150
Specifications
|
150 mm | 20 mm | PN10/16, ANSI150 | -20...+150 °C | 73.637,00 din. | ||
CM-6666V-200
Specifications
|
200 mm | 22 mm | PN10/16 | -20...+150 °C | 105.315,00 din. | ||
CM-6666V-250
Specifications
|
250 mm | 26 mm | PN10/16 | -20...+150 °C | 197.365,00 din. | ||
CM-6666V-300
Specifications
|
300 mm | 32 mm | PN10 | -20...+150 °C | 286.770,00 din. |
