Pressure regulator

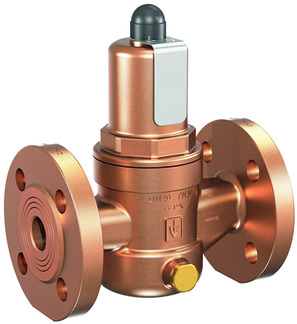

Flange pressure regulator Series PR04...5/15
Body Bronze; Flange PN16; Fine screen Stainless steel; Seals EPDM; Max. Inlet pressure 16bar; Operating pressure range 5...15bar; Medium temperature -20…+95°C
Scope of delivery
pressure regulator without manometer
Data sheets, CAD files and further documents are available with the respective variant.
6Articles
Store guide
Other series
Pressure regulator fixed set Series PR64
Pressure regulator Series PR01
Pressure regulator Series PR02/PR10
Pressure regulator Series PR03...0.5/2
Pressure regulator Series PR40
Pressure regulator Series PR03…5/15
Pressure regulator Series PR03-V
Flange pressure regulator Series PR04
Flange pressure regulator Series PR04...5/15
Flange pressure regulator Series PR21
Flange pressure regulator Series PR04-PN40
Pressure regulator Series PR08
Pressure regulator Series PR08...5/15
Pressure regulator Series PR09
Flange pressure regulator Series PR12
Flange pressure regulator Series PR12...5/15
Scope of delivery
pressure regulator without manometer
All prices exclude tax.
Grundversion
| Availability | Price | Quantity | ||||
|---|---|---|---|---|---|---|
| PR04-15-5/15 | 15 mm | 0,6 mm | MA001-50R-16-D | 84.706,00 din. | ||
| PR04-20-5/15 | 20 mm | 0,6 mm | MA001-50R-16-D | 98.970,00 din. | ||
| PR04-25-5/15 | 25 mm | 0,6 mm | MA001-50R-16-D | 107.842,00 din. | ||
| PR04-32-5/15 | 32 mm | 0,6 mm | MA001-63R-16-D | 122.776,00 din. | ||
| PR04-40-5/15 | 40 mm | 0,75 mm | MA001-63R-16-D | 138.732,00 din. | ||
| PR04-50-5/15 | 50 mm | 0,75 mm | MA001-63R-16-D | 187.788,00 din. |
