Ø 32...125mm; According to ISO 15552, VDMA; Double acting; Pressure range 0,5...10bar; Adjustable cushions; All seals FKM
Profile magnetic cylinder Series PC60-VV -
Cylinder slot cover Series NWT-PCC
-
gemäß ISO 15552, VDMA; doppeltwirkend; Druckbereich 0,5...10bar; einstellbare Endlagendämpfung
Profile magnetic cylinder Series NWT -
According to ISO 15552, VDMA; Double acting; Pressure range 0,5...10bar; Adjustable cushions; All seals FKM
Profile magnetic cylinder Series NWT-VV -
According to ISO 15552, VDMA; Double acting; Pressure range 0,5...10bar; Adjustable cushions; Special versions
Profile magnetic cylinder Series NWT-01 -
According to ISO 15552, VDMA; Double acting; Pressure range 0,5...10bar; Adjustable cushions
Tie-rod magnetic cylinder Series XJC -
According to ISO 15552, VDMA; Double acting; Pressure range 0,5...10bar; Adjustable cushions; Rod seal FKM
Profile magnetic cylinder Series NWT -
According to ISO 15552, VDMA; Double acting; Pressure range 0,5...10bar; Adjustable cushions; All seals FKM
Profile magnetic cylinder Series NWT -
According to ISO 15552, VDMA; Double acting; Pressure range 0,5...10bar; Adjustable cushions; Rod seal FKM; Material Piston-rod 1.4401
Profile magnetic cylinder Series NWT -
According to ISO 15552, VDMA; Single acting, Backside spring; Pressure range 0,5...10bar; Adjustable cushions
Profile magnetic cylinder Series NWT-SEP -
According to ISO 15552, VDMA; Single acting, Backside spring; Pressure range 0,5...10bar; Adjustable cushions
Profile magnetic cylinder Series PC60R -
According to ISO 15552, VDMA; Single acting; Pressure range 0,5...10bar; Adjustable cushions; Spring in front
Profile magnetic cylinder Series NWT-SEA -
According to ISO 15552, VDMA; Single acting; Pressure range 0,5...10bar; Adjustable cushions; Spring in front
Profile magnetic cylinder Series PC60F -
According to ISO 15552, VDMA; Double acting; Pressure range 0,5...10bar; Adjustable cushions; ATEX zone 2 and 22
Profile magnetic cylinder Series XNWT -
According to ISO 15552, VDMA; Double acting; Pressure range 0,5...10bar; Adjustable cushions; Through rod type
Profile magnetic cylinder Series NWT-P -
According to ISO 15552, VDMA; Double acting; Pressure range 0,5...10bar; Adjustable cushions; Through rod type
Profile magnetic cylinder Series PC60-P -
Multi-position rear; According to ISO 15552, VDMA; Double acting; Pressure range 0,5...10bar; Adjustable cushions
Profile magnetic cylinder Series NWT-CNP -
Multi-position rear; According to ISO 15552, VDMA; Double acting; Pressure range 0,5...10bar; Adjustable cushions
Profile magnetic cylinder Series PC60-R0 -
According to ISO 15552, VDMA; Double acting; Pressure range 0,5...10bar; Adjustable cushions; Through rod type; All seals FKM
Profile magnetic cylinder Series NWT-P-VV -
Multi-position; According to ISO 15552, VDMA; Double acting; Pressure range 0,5...10bar; Adjustable cushions
Profile magnetic cylinder Series NWT-BS -
For cylinder ISO 15552
Centre swivel bracket Series NWCIR -
For piston rod; For cylinder
Lock nut Series U -
Double acting; Pressure range 1...10bar; According to DIN/ISO 6432; Adjustable cushions
Mini magnetic cylinder Series ACM -
For piston rod; For cylinder
Lock nut Series U -
Other materiales - P01
-
For ISO cylinders; Slide bearing
Linear guide Series GLC -
Cylinder Series XJCRod seal FKM
-
Cylinder Series XJC/XPC
Seal kit NBR -
Cylinder Series DVM, ACMRod seal FKM
-
Cylinder Series ACMT, NWT
Rod seal PU -
Cylinder Series ACMT, NWTRod seal FKM
-
Cylinder Series HPSK
Seal kit NBR -
Double acting; Pressure range 0,5...10bar; Adjustable cushions
Profile magnetic cylinder with hollow piston-rod Series AW1 -
Dual-hollow piston rod Series AW5;; Double acting Pressure range 0,5...10bar; Adjustable cushionsProfile magnetic cylinder
-
For ISO cylinders; Slide bearingLinear guide Series GLH-BS
-
For ISO cylinders; Ball bearingLinear guide Series GLH-BB
-
Double acting; Pressure range 0,5...8bar; Adjustable cushions; With 2 gliding carriage
Rodless magnetic cylinder Series RLFG -
Double acting; Pressure range 1...10bar; According to DIN/ISO 6432; Cylinder end-caps made of acetalic polymer; Rest in stainless steel
Stainless steel mini magnetic cylinder Series DSA -
Double acting; Pressure range 1...10bar; According to DIN/ISO 6432; Completely made of stainless steel
Stainless steel mini magnetic cylinder Series DSM -
Double acting; Pressure range 1...10bar; Piston rod with female thread
Short-stroke cylinder Series SHD -
According to ISO 15552, VDMA; Double acting; Pressure range 0,5...10bar; Adjustable cushions; End And Cover Acetal polymer; Cylinder tube 1.4301
Tie-rod magnetic cylinder Series XJS -
According to ISO 15552, VDMA; Double acting; Pressure range 0,5...10bar; Adjustable cushions; Completely made of stainless steel 1.4301; Rod seal FKM; Rest PU
Tie-rod magnetic cylinder Series XJSS -
Double acting; Pressure Max. 10bar
Compact-section tube magnetic guide cylinder Series HNG -
Double acting; According to ISO standard; Pressure range 1...10bar; Piston rod with male threadCompact magnetic cylinder Series NSKI-M
-
Double acting; Pressure range 0,5...8bar; Adjustable cushions
Rodless magnetic cylinder With ball bearing guide Series RLFH -
Double acting; According to ISO standard; Pressure range 1...10bar; Non-rotating
Compact magnetic cylinder Series NSKI-F-AR -
Double acting; According to ISO standard; Pressure range 1...10bar; Piston rod with female threadCompact magnetic cylinder Series NSKI-F
-
Double acting; According to Unitop Standard; Pressure range 1...10bar; Through rod type; Piston rod with male threadCompact magnetic cylinder Series NSKU-M-P
-
Double acting; According to Unitop Standard; Pressure range 1...10bar; Through rod type; Piston rod with female threadCompact magnetic cylinder Series NSKU-F-P
-
Double acting; According to ISO standard; Pressure range 1...10bar; Through rod type; Piston rod with female thread
Compact magnetic cylinder Series NSKI-F-P -
Double acting; According to ISO standard; Pressure range 1...10bar; Through rod type; Piston rod with male thread
Compact magnetic cylinder Series NSKI-M-P -
Double acting; Pressure range 0,5...8bar; Adjustable cushions
Rodless magnetic cylinder Series PC23 -
Cylinder Series XJC/XPCSeal kit FKM
-
Double acting; Pressure range 1...10bar; Piston rod with female thread
Short-stroke cylinder Series PC09 -
Cylinder Series AW1Seal kit NBR
-
According to ISO 15552, VDMA; Double acting; Pressure range 0,5...10bar; Adjustable cushions; Rod seal FKM
Profile magnetic cylinder Series PC10-VS -
Double acting; According to Unitop Standard; Pressure range 1...10bar; Non-rotatingCompact magnetic cylinder Series NSKU-F-AR
-
According to ISO 15552, VDMA; Double acting; Pressure range 0,5...10bar; Adjustable cushions; Smooth running version
Profile magnetic cylinder Series PC10-SRC -
According to ISO 15552, VDMA; Double acting; Pressure range 0,5...10bar; Adjustable cushions; Through-rod
Tie-rod magnetic cylinder Series PC43-P -
Double acting; According to ISO standard; Pressure range 1...10bar; Piston rod with female threadCompact magnetic cylinder Series PC07
-
Cylinder Series SHDSeal kit NBR/PU
-
Suitable for Pneumatic cylinder Series SHD
Cylinder tube -
Suitable for Pneumatic cylinder Series NWT
Piston-rod -
Suitable for Pneumatic cylinder Series NWT
Cylinder tube -
Non-rotating; With 2 piston rods; Double acting; Pressure range 0,5...10bar
Mini magnetic cylinder Series AR2 -
Double acting; Pressure range 1...10bar; According to DIN/ISO 6432; Cylinder end-caps made of acetalic polymer; Rest in stainless steel
Stainless steel mini magnetic cylinder Series PC30 -
Straight reducing adapter Series SHNP
-
According to ISO 15552, VDMA; Double acting; Pressure range 0,5...10bar; Adjustable cushions; Completely made of stainless steel 1.4301; Rod seal FKM; Rest PU
Tie-rod magnetic cylinder Series PC31 -
Double acting; Pressure range 2...10bar; With piston rod brake Double acting; Brake connection 1/8"; Adjustable cushions
Profile magnetic cylinder Series RWD -
; Double acting; Pressure range 0,5...10bar; Adjustable cushions
Profile magnetic cylinder with hollow piston-rod Series PC18 -
Single acting; Spring in front; Pressure Max. 10bar; Piston rod with female threadShort-stroke cylinder Series PC09F
-
Double acting; Pressure range 2...8bar
Dual piston magnetic cylinder Series HPSK -
Single acting; Backside spring; According to Unitop Standard; Pressure range 1...10bar; Piston rod with female threadCompact magnetic cylinder Series NSKU-F-SEP
-
Single acting; Backside spring; According to Unitop Standard; Pressure range 1...10bar; Piston rod with male threadCompact magnetic cylinder Series NSKU-M-SEP
-
Cylinder Series NSK; Seal Polyurethane
Piston -
Double acting; Pressure range 1...10bar; According to DIN/ISO 6432; Through rod type
Mini magnetic cylinder Series DVM-P -
For cylinder
Floating joint Series SAF -
Pressure range 1...10bar; Adjustable cushions; Male pinion
Magnetic rotating cylinder Series CRW-00 -
Single acting; Pressure range 2...10barMini magnetic cylinder Series DRM-SEA
-
Single acting; Spring in front; According to ISO standard; Pressure range 1...10bar; Piston rod with female threadCompact magnetic cylinder Series NSKI-F-SEA
-
; Standard seals
Cylinder kit -
Single acting; According to Unitop Standard; Pressure range 1...10bar; Piston rod with male threadCompact magnetic cylinder Series NSKU-M-SEA
-
ATEX zone 2 and 22; According to ISO 15552, VDMA; Double acting; Pressure range 0,5...10bar; Adjustable cushionsProfile magnetic cylinder Series PC10-AX
-
Double acting; Pressure range 1...10bar; Pressure connection Rear side, Axial
Mini magnetic cylinder Series DRM -
Double acting; Pressure range 1...10bar; Piston rod with female thread
Short stroke magnetic cylinder Series PC34 -
Multi-position; Double acting; According to ISO standard; Pressure range 1...10bar; Piston rod with female thread
Compact magnetic cylinder Series NSKI-BS -
Double acting; According to Unitop Standard; Pressure range 1...10bar; Rod seal FKM; Piston rod with female threadCompact magnetic cylinder Series PC05-VS
-
Double acting; According to Unitop Standard; Pressure range 1...10bar; Piston rod with female thread; Through rod type
Compact magnetic cylinder Series PC05-P -
Suitable for Pneumatic cylinder Series XJC, PC11, PC43
Cylinder tube -
According to ISO 15552, VDMA; Double acting; Pressure range 0,5...10bar; Adjustable cushions; All seals FKM
Tie-rod magnetic cylinder Series PC43-VV -
According to ISO 15552, VDMA; Double acting; Pressure range 0,5...10bar; Adjustable cushions; Piston-rod Stainless steel AISI 304
Tie-rod magnetic cylinder Series PC43-SS -

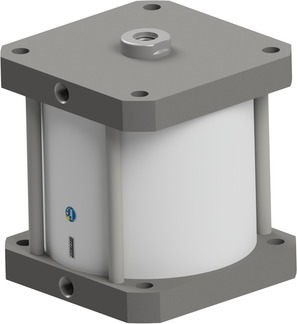

Double acting;; Pressure range 1...10bar; Piston rod with female thread
Short stroke magnetic cylinder Series SHDM -
According to ISO 15552, VDMA; Double acting; Pressure range 0,5...10bar; Adjustable cushions; Rod seal FKM
Tie-rod magnetic cylinder Series PC43-VS -
Double acting; Pressure range 1...10bar; According to DIN/ISO 6432Mini magnetic cylinder Series PC101
-
Single acting; Pressure range 2...10bar; According to DIN/ISO 6432Mini magnetic cylinder Series PC101F
-
Double acting; According to Unitop Standard; Pressure range 1...10bar; Piston rod with female threadCompact magnetic cylinder Series PC05
-
Double acting; According to ISO standard; Pressure range 1...10bar; Piston rod with female thread; All seals High temperature polyurethaneCompact magnetic cylinder Series NSKI-F-VV
-
Double acting; According to Unitop Standard; Pressure range 1...10bar; Piston rod with male thread; All seals High temperature polyurethaneCompact magnetic cylinder Series NSKU-M-VV
-
Double acting; According to Unitop Standard; Pressure range 1...10bar; Piston rod with female thread; All seals High temperature polyurethaneCompact magnetic cylinder Series NSKU-F-VV
-
For cylinder ISO 15552; Narrow design
Swivel bracket Series XANN -
Double acting; According to Unitop Standard; Pressure range 1...10bar; Non-rotating; All seals High temperature polyurethaneCompact magnetic cylinder Series NSKU-F-AR-VV
-
Multi-position front; According to ISO 15552, VDMA; Double acting; Pressure range 0,5...10bar; Adjustable cushions
Profile magnetic cylinder Series PC10-F0 -
Single acting; According to Unitop Standard; Pressure range 1...10bar; Piston rod with male thread; All seals High temperature polyurethaneCompact magnetic cylinder Series NSKU-M-SEA-VV
-
Single acting; According to Unitop Standard; Pressure range 1...10bar; Piston rod with female thread; All seals High temperature polyurethaneCompact magnetic cylinder Series NSKI-F-SEA-VV
-
Cylinder Series NSKSeal kit High temperature polyurethane
-
According to ISO 15552, VDMA; Double acting; Pressure range 0,5...10bar; Adjustable cushions; Low temperature design -30...+80°C
Profile magnetic cylinder Series PC10-LT -
Double acting; Pressure range Max. 10bar; Piston rod with female threadCompact magnetic cylinder Series PC102
-
Double acting; Pressure range 0,5...8bar; Adjustable cushions; Seals made of FKM; Screws Stainless steel
Rodless magnetic cylinder Series PC23-VX -
Multi-position rear; According to ISO 15552, VDMA; Double acting; Pressure range 0,5...10bar; Adjustable cushions
Profile magnetic cylinder Series PC10-R0 -
Double acting; According to Unitop Standard; Pressure range 1...10bar; Piston rod with male threadCompact magnetic cylinder Series PC06
-
Cylinder Series PC43-VVSeal kit FKM
-
Cylinder Series PC43-VSSeal kit PU/FKM
-
According to ISO 15552, VDMA; Double acting; Pressure range 0,5...10bar; Adjustable cushions
Profile magnetic cylinder Series PC50 -
According to ISO 15552, VDMA; Double acting; Pressure range 0,5...10bar; Adjustable cushions
Profile magnetic cylinder Series PC10 -
Cylinder Series PC43Rod seal FKM
-
Single acting; Spring in front; According to ISO standard; Pressure range 1...10bar; Piston rod with male threadCompact magnetic cylinder Series NSKI-M-SEA
-
Single acting; Backside spring; According to ISO standard; Pressure range 1...10bar; Piston rod with male threadCompact magnetic cylinder Series NSKI-M-SEP
-
Single acting; Backside spring; According to ISO standard; Pressure range 1...10bar; Piston rod with male threadCompact magnetic cylinder Series PC08R
-
ATEX II 2G EX h IIB T4 Gb -10...+80°C / II 2D EX h IIIC T130°C Db; Double acting; Pressure range 0,5...8bar; Adjustable cushions
Rodless magnetic cylinder Series PC23-A -
Double acting; Pressure range 1...10bar; Pressure connection Rear side, AxialMini magnetic cylinder Series PC03
-
Double acting; Pressure range 1...10bar; According to DIN/ISO 6432; Rod seal FKM
Mini magnetic cylinder Series DVM-VS -
Double acting; Pressure range 1...10bar; According to DIN/ISO 6432; Seals made of FKM
Mini magnetic cylinder Series DVM-VV -
Single acting; Pressure range 1...10bar; Piston rod with female threadShort-stroke cylinder Series SHS
-
Double acting; Pressure range 1...10bar; According to DIN/ISO 6432
Mini magnetic cylinder Series PC02 -
Double acting; Pressure range 1...10bar; according to& DIN/ISO 6432; Non-rotating
Mini magnetic cylinder Series PC52-AR -
Single acting; Pressure range 2...10bar; According to DIN/ISO 6432; Completely made of stainless steel
Stainless steel mini magnetic cylinder Series PC29F -
According to ISO 15552, VDMA; Double acting; Pressure range 0,5...10bar; Adjustable cushions; Piston-rod 1.4401
Profile magnetic cylinder Series PC10-SSE -
Double acting; Through rod type; Pressure range 1...10bar; Piston rod with female threadShort-stroke cylinder Series PC09-P
-
Double acting; Pressure range 1...10bar; According to DIN/ISO 6432; Completely made of stainless steel; All seals FKM
Stainless steel mini magnetic cylinder Series DSM-VV -
Double acting; Pressure range 1...10bar; According to DIN/ISO 6432; Completely made of stainless steel; All seals FKM
Stainless steel mini magnetic cylinder Series PC29-VV -
With 2 piston rods; Double acting; Pressure range 0,5...10bar; Adjustable cushions
Profile magnetic cylinder Non-rotating Series PC12 -
ATEX II 3 G/D c T5 T165°C -5< Ta <50°C; Single acting; Backside spring; According to Unitop Standard; Pressure range 1...10bar; Piston rod with female thread
Compact magnetic cylinder Series PC05R-AX -
Double acting; Pressure range 1...10bar; According to DIN/ISO 6432; Completely made of stainless steel
Stainless steel mini magnetic cylinder Series PC29 -
Double acting; Pressure range 1...10bar; Non-rotating
Short-stroke cylinder Series PC44 -
Single acting; Pressure range 2...10bar; According to DIN/ISO 6432; Rod seal PU
Mini magnetic cylinder Series PC02F -
Single acting; According to Unitop Standard; Pressure range 1...10bar; Non-rotatingCompact magnetic cylinder Series PC13F
-
Double acting; According to Unitop Standard; Pressure range 1...10bar; Non-rotatingCompact magnetic cylinder Series PC13
-
Double acting; According to ISO standard; Pressure range 1...10bar; Non-rotating
Compact magnetic cylinder Series PC58 -
Double acting; According to ISO standard; Pressure range 1...10bar; Piston rod with male threadCompact magnetic cylinder Series PC08
-
Double acting; According to ISO standard; Pressure range 1...10bar; Through rod type; Piston rod with female thread
Compact magnetic cylinder Series PC07-P -
Double acting; Pressure range 2...8bar
Dual piston magnetic cylinder Series PC16 -
Cylinder Series PC21Seal kit NBR
-
Double acting; Pressure range 1...10bar; According to DIN/ISO 6432; Adjustable cushions
Mini magnetic cylinder Series PC04 -
Double acting; Pressure Max. 10bar
Compact-section tube magnetic guide cylinder Series PC15 -
Double acting; According to ISO standard; Pressure range 1...10bar; Non-rotating; Piston rod with male thread
Compact magnetic cylinder Series NSKI-M-AR -
Single acting; Backside spring; According to ISO standard; Pressure range 1...10bar; Piston rod with female threadCompact magnetic cylinder Series NSKI-F-SEP
-
ATEX II 3 G/D c T5 T165°C -5< Ta <50°C; Double acting; According to Unitop Standard; Pressure range 1...10bar; Piston rod with female threadCompact magnetic cylinder Series PC05-AX
-
Double acting; Pressure range 1...10bar; According to DIN/ISO 6432; Adjustable cushions; Piston rod extensionMini magnetic cylinder Series PC04-E
-
ATEX zone 2 and 22; According to ISO 15552, VDMA; Double acting; Pressure range 0,5...10bar; Adjustable cushions
Profile magnetic cylinder Series PC10-E-AX -
According to ISO 15552, VDMA; Single acting; Pressure range 0,5...10bar; Adjustable cushions; Spring in front
Profile magnetic cylinder Series PC10F
Other materiales - P01
Mini magnetic cylinder Series ACM
Double acting; Pressure range 1...10bar; According to DIN/ISO 6432; Adjustable cushions
| Diameter | Connection | Stroke | Piston rod thread | Function | Push force at 6 bar | Type | Sequence |
|---|---|---|---|---|---|---|---|
| 16 mm | M5 | 10 mm | M6 | Double acting | 121 N | ACM16/10 | 50000 |
| 16 mm | M5 | 25 | M6 | Double acting | 121 N | ACM16/25 | 50002 |
| 20 mm | 1/8" | 10 mm | M8 | Double acting | 188 N | ACM20/10 | 50014 |
| 20 mm | 1/8" | 250 mm | M8 | Double acting | 188 N | ACM20/250 | 50027 |
| 25 mm | 1/8" | 25 | M10x1,25 | Double acting | 295 N | ACM25/25 | 50040 |
| 25 mm | 1/8" | 125 mm | M10x1,25 | Double acting | 295 N | ACM25/125 | 50048 |
| 25 mm | 1/8" | 150 mm | M10x1,25 | Double acting | 295 N | ACM25/150 | 50049 |
| 25 mm | 1/8" | 170 mm | M10x1,25 | Double acting | 295 N | ACM25/170 | 50051 |
| 25 mm | 1/8" | 500 mm | M10x1,25 | Double acting | 295 N | ACM25/500 | 50061 |
Centre swivel bracket Series NWCIR
For cylinder ISO 15552
| Diameter | Connection | Stroke | Push force at 6 bar | Max. load L | Function | Type |
|---|---|---|---|---|---|---|
| 25 mm | 1/8" | 3800 mm | 250 N | 300 N | Double acting | RLF25-3800-RLMI-25-RLP-25 |
Profile magnetic cylinder Series PC60-VV
Ø 32...125mm; According to ISO 15552, VDMA; Double acting; Pressure range 0,5...10bar; Adjustable cushions; All seals FKM
| Diameter | Connection | Stroke | Piston rod thread | Function | Push force at 6 bar | Seal | Design | Rod seal | Type | Sequence |
|---|---|---|---|---|---|---|---|---|---|---|
| 40 mm | 1/8" | 700 mm | M10x1,25 | Double acting | 754 N | FKM | - | - | PC60-40-700-VV | 940013 |
| 40 mm | 1/8" | 900 mm | M10x1,25 | Double acting | 754 N | FKM | - | - | PC60-40-900-VV | 940014 |
| 63 mm | 1/8" | 900 mm | M10x1,25 | Double acting | 3014 N | FKM | - | - | PC60-80-900-VV | 940019 |
