Straight connector Series PIM13

Elbow connector Series PIM17

T-connector Series PIM29

Plug adapter Series PIM65

Nickel plated brass; Pressure 80bar

Cross connector Series PIM20

Nickel plated brass; Pressure 80bar; With nozzle connection 10-24UNC

Straight connector Series PIM29-UNC

Nickel plated brass; Pressure 80bar; With nozzle connection 10-24UNC

Plug adapter Series PIM17-UNC

Nickel plated brass; Pressure 80bar; Thread 10-24UNC

Nozzle Series PIM12-1024UNC

FKM

ED-Sealring Series SE-A-ED

1.4408; PN10

Elbow adapter Male/female Series TH16C-S

1.4408; Conical thread; PN10

Hex nipple Series TH38C-S

Stainless steel 1.4408; Conical thread; Hexagon

Plug screw Series TH67C-S

Plastic; Connection Nickel plated brass; Cylindrical thread

Swivel male elbow Series PI16-360

Full bore; Three-parts type; Body, Ball 1.4401; Seals PTFE/FKM; Pipe connection Made of aluminum

Ball valve made of stainless steel Series BA507

Full bore; Seals PTFE; Pipe connection/Male thread

Ball valve made of brass Series BA503

Full bore; Seals PTFE; Pipe connection/Female thread

Ball valve made of brass Series BA504

Nickel plated brass; Pressure Max. 250bar

Straight male stud fitting Series PH12

Nickel plated brass; Pressure Max. 250bar

Male elbow Series PH16

Nickel plated brass; Pressure Max. 250bar

Male elbow Turnable Series PH16-360

Nickel plated brass; Conical thread; Pressure Max. 80bar

Male elbow Series PM16C

Nickel plated brass; Conical thread; Pressure Max. 80bar

Swivel male elbow Series PM16C-360

Nickel plated brass; Conical thread; Pressure Max. 80bar

Straight male stud fitting Series PM12C

Nickel plated brass; Pressure Max. 80bar

Straight connector Series PM13

Nickel plated brass; Cylindrical thread

Straight male stud fitting Series DI12

Viton; Suitable to Compressed air system SPEEDLINE

O-ring Series 0R-V-S01

Plastic/Nickel plated brass; Cylindrical thread; With 2 ball bearings

Swivel male elbow Series PI16-360-BB2

Stainless steel 1.4571; Without nut and die ring

Male elbow Series A-WE-R-K-71-X

Female thread; Stainless steel AISI 303; Seal FKM; Pressure -0,80...35bar; Temperature Max. 200°C

Male thread; Stainless steel AISI 303; Seal FKM; Pressure -0,80...35bar; Temperature Max. 200°C

Hose nozzle; Stainless steel AISI 303; Seal FKM; Pressure -0,80...35bar; Temperature Max. 200°C

Hose nozzle; Stainless steel AISI 303; Seal FKM; Pressure -0,80...35bar; Temperature Max. 200°C

b>Coupling plug Shut-off DN 7,2

Female thread; Stainless steel AISI 303; Seal FKM; Pressure -0,80...35bar; Temperature Max. 200°C

Coupling plug Shut-off DN 7,2

Male thread; Stainless steel AISI 303; Seal FKM; Pressure -0,80...35bar; Temperature Max. 200°C

Coupling plug Shut-off DN 7,2

Brass; Cylindrical thread; Flat sealing

Detachable hex nipple Female/male Series TH59

Stainless steel 1.4408; Pressure 20bar

T-adapter Female Series TH29

Zinc plated steel; Without nuts and die rings

Adjustable T-fitting Series C-ET

Zinc plated steel; Without nuts and die rings

X-fitting Series C-K

;Cylindrical thread

Pipe hex nipple Series TH38-L

;Conical thread

Pipe hex nipple Series TH38C-L

Brass; Cylindrical thread

Extension Series TH12

Material Polyethylene/Aluminum; Temperature range -40...80°C

Multilayer pipe Series DKB

Material PA6

Swivel nut With Locking ring Series SPEEDLINE

6-fold; Material PBT;

Multiple distributor Series PI90C

3-fold; Material PBT

Multiple distributor Series PI95C

Brass

Female to female reducer coupling Series TH13

PA66; Cylindrical thread

Male stud branch tee swivel Series PI21-360

Malleable cast iron zinc plated; Conical thread

Female to male reducer adapter Series TH60C-M

1.4404; Cylindrical thread

Female to male reducer adapter Series TH59

For multilayer pipe

Bending spring Outside Series 0BS

For multilayer pipe

Bending spring Inside Series IBS

Female thread; Aluminum; Seal NBR; Pressure Max. 16Bar; Temperature Max. 68°C; According to A 59326 (Previous MIL - C 27487)

Male thread; Aluminum; Seal NBR; Pressure Max. 16Bar; Temperature Max. 68°C; According to A 59326 (Previous MIL - C 27487)

Female to male reducer adapter Series TH60C-S

1.4408; Conical thread

Male thread; Zinc plated steel; Seal NBR; Pressure -0,87...35bar; Temperature Max. 100°C

Female thread; Zinc plated steel; Seal NBR; Pressure -0,87...35bar; Temperature Max. 100°C

Hose nozzle; Zinc plated steel; Seal NBR; Pressure -0,87...35bar; Temperature Max. 100°C

Elbow adapter 45° Male/female Series TH85C

1.4408; Conical thread

Hex nipple Series TH38C

Stainless steel 1.4408; Conical thread

Brass chemical nickel plated According to NSF51; FKM FDA-Conform

Push-in fittings FDA-Conform

Brass chemical nickel plated According to NSF51; FKM FDA-Conform

Y-connector Series PI23

Stainless steel 1.4401; Cylindrical thread

Female to male reducer adapter Series TH60

Stainless steel

Reinforce bushing Series DI56

Cylindrical thread; Body; Locking ring And Nut PFA

Straight male stud fitting Series CF12

Malleable cast iron zinc plated; Conical thread

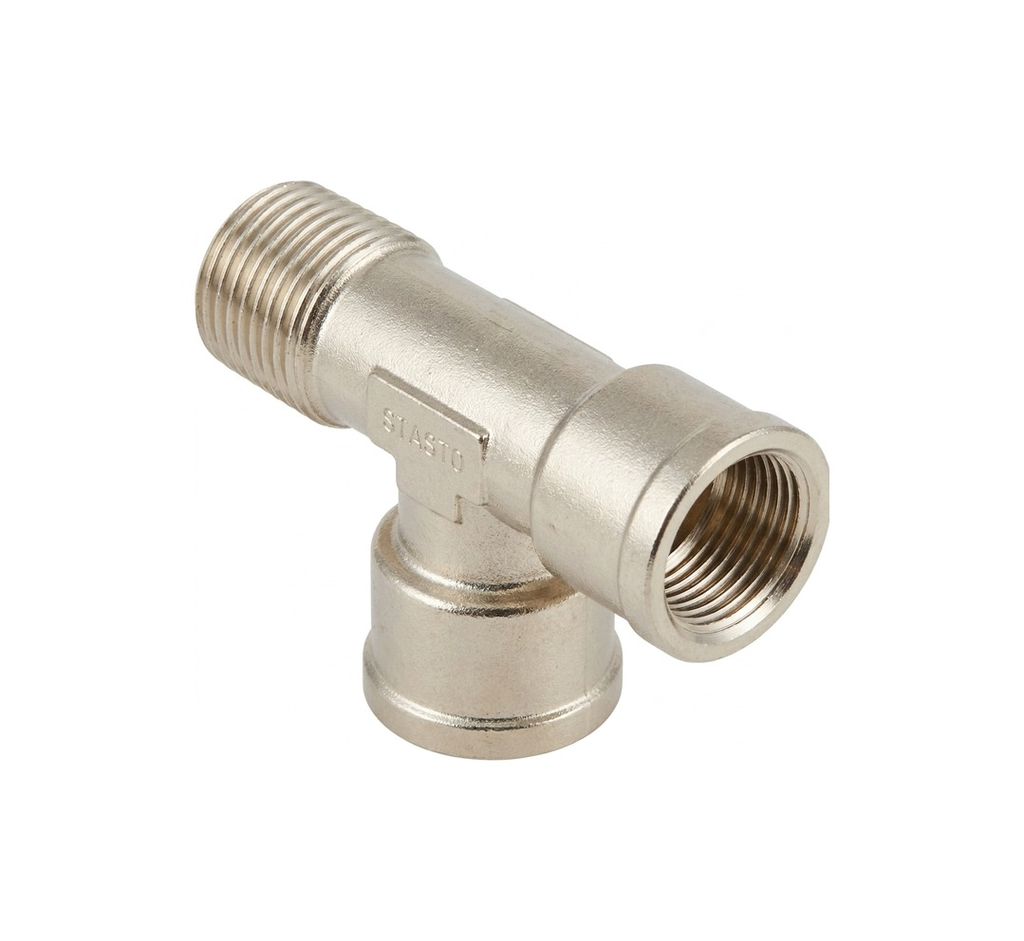

T-adapter Female/female/male Series TH24C

T-adapter Female Series TH29

Malleable cast iron zinc plated

T-adapter Female Series TH29

Female to female reducer coupling Series TH13

Female to female coupling Series TH13

Malleable cast iron zinc plated; Conical thread

Female to male reducer adapter Series TH59C

Plastic

Bulkhead fitting Series PI27

Cylindrical thread; Material PVDF

Male elbow Series CF16

Aluminum

Connection tube Series SPEEDLINE

PVDF

T-connector Series CF29

PVDF

Straight connector Series CF13

1.4408; Conical thread

T-adapter Female/female/male Series TH24C

Male/female; Malleable cast iron zinc plated; Conical thread

Elbow adapter 45°

Malleable cast iron zinc plated; Conical thread

Plug screw Series TH67C-M

Malleable cast iron zinc plated; Conical thread;

Malleable cast iron zinc plated; Conical thread

Hex nipple Series TH38C

Stainless steel AISI 316; Conical thread

Male hose nozzle Series HN38C

Stainless steel 1.4408; Conical thread; Metal sealing

Stainless steel 1.4408; Conical thread; Flat sealing

Stainless steel 1.4404; Conical thread; Flat sealing

Stainless steel 1.4404; Conical thread; O-ring NBR

Stainless steel 1.4408; Pressure 20bar

Elbow adapter Female Series TH17

PVDF

Straight female fitting Series CF13

Compatible with ATLAS COPCO QIC15; Male thread; Nickel plated brass/Zinc plated steel; Seal NBR; Pressure -0,87...35bar; Temperature -20...100°C

Coupling DN 10

Compatible with ATLAS COPCO QIC15; Hose nozzle; Nickel plated brass/Zinc plated steel; Seal NBR; Pressure -0,87...35bar; Temperature -20...100°C

Coupling DN 10

Compatible with ATLAS COPCO QIC15; Male thread; Steel nickel plated; Pressure -0,87...35bar; Temperature -20...100°C

Coupling plug DN 10

Compatible with ATLAS COPCO QIC15; Hose nozzle; Steel nickel plated; Pressure -0,87...35bar; Temperature -20...100°C

Coupling plug DN 10

Compatible with ATLAS COPCO QIC15; Female thread; Steel nickel plated; Pressure -0,87...35bar; Temperature -20...100°C

Coupling plug DN 10

Compatible with ATLAS COPCO QIC10; Male thread; Nickel plated brass/Zinc plated steel; Seal NBR; Pressure -0,87...35bar; Temperature -20...100°C

Compatible with ATLAS COPCO QIC10; Male thread; Zinc plated steel; Pressure -0,87...35bar; Temperature -20...100°C

Compatible with ATLAS COPCO QIC10; Hose nozzle; Nickel plated brass/Zinc plated steel; Seal NBR; Pressure -0,87...35bar; Temperature -20...100°C

Compatible with ATLAS COPCO QIC10; Hose nozzle; Zinc plated steel; Pressure -0,87...35bar; Temperature -20...100°C

Compatible with ATLAS COPCO QIC10; Female thread; Zinc plated steel; Pressure -0,87...35bar; Temperature -20...100°C

Non-interchangeable; Female thread; Brass; Seal NBR; Pressure -0,87...35bar; Temperature Max. 100°C

Zinc plated steel-NBR

Sealring Series USIT

Coupling DN 7,8 Series C0C78-F-B

Non-interchangeable; Male thread; Brass; Seal NBR; Pressure -0,87...35bar; Temperature Max. 100°C

Coupling DN 7,8 Series C0C78-M-B

Non-interchangeable; Female thread; Brass; Seal NBR; Pressure -0,87...35bar

Coupling plug DN 7,8

Non-interchangeable; Male thread; Brass; Seal NBR; Pressure -0,87...35bar

Coupling plug DN 7,8

Brass; For clamp collar DIN EN 14 423

Female hose nozzle Series DI

Malleable cast iron zinc plated; Claw distance 42mm; Seal NBR; Operating pressure Max. 10bar; Temperature -40...+95°C

Malleable cast iron zinc plated; Claw distance 42mm; Seal NBR; Operating pressure Max. 10bar; Temperature -40...+95°C

Malleable cast iron zinc plated; Claw distance 42mm; Seal NBR; Operating pressure Max. 10bar; Temperature -40...+95°C

1.4401; Claw distance 42mm; Seal FKM; Operating pressure Max. 16bar; Temperature -30...+200°C; With protection cap

Rubber-Compensator Series DIRDIL

Flanged type PN16; Material Zinc plated steel; Temperature range -20...+90°C; Operating pressure -20...+50°C: 16bar; Multiplier for operating pressure 70°C = 0,8 / 90°C = 0,67

Stainless steel 1.4404; Conical thread; Metal sealing

Banjo bolt, double-type Series TH52

Stainless steel 1.4571

Stainless steel 1.4571

Banjo Series SC35

Stainless steel 1.4408

Female to female reducer coupling Series TH13

Stainless steel 1.4571

Swivel nut Series SC33

Stainless steel AISI 316Ti; Conical thread

Detachable hex nipple Series TH38C

Malleable cast iron Zinc plated; Conical thread

Reduction hex nipple Series TH38C

Nylon-PA66 ; Conical thread

Swivel male elbow 45° Series PI85C-360

Zinc plated steel; Without nut and die ring

Male elbow Series WE-R-K-X

Non-interchangeable; Male thread; Brass; Seal NBR; Pressure -0,87...35bar; Temperature -20...100°C

Coupling plug DN 5

Non-interchangeable; Female thread; Brass; Seal NBR; Pressure -0,87...35bar; Temperature -20...100°C

Coupling plug DN 5

Non-interchangeable; Female thread; Brass; Seal NBR; Pressure -0,87...35bar; Temperature -20...100°C

Coupling DN 5

Coated; Operating pressure at -30…+80°C 16bar; Colour Green; Straight tubes

Aluminum pipe Series SPEEDLINE

Male thread; Brass; Seal FKM; Pressure -0,87...35bar

Coupling plug, Coupling multiple system

Pressure 0…15bar; Temperature -20...70°C; Free passage; Hose connection Push-in fittings

Pressure 0…15bar; Temperature -20...70°C; Free passage; Hose connection Push-in fittings

Coupling, Coupling multiple system

POM

Plug adapter Series PI89-D

1.4408; Cylindrical thread

Detachable hex nipple Female/female Series TH13

1.4408; Cylindrical thread

Detachable hex nipple Female/male Series TH59-S-Z

Stainless steel AISI 316; Cylindrical thread; Flat sealing

Detachable hex nipple Female/female Series TH13

Nickel plated brass; Cylindrical thread

Male hose nozzle Series HN38

Zinc plated steel; Thread NPT

Hex nipple Series 3002

For compressed air brakes; Brass

Straight connector Series PIB13

For compressed air brakes; Brass; Cylindrical thread

Straight male stud fitting Series PIB12

For compressed air brakes; Brass; Cylindrical thread

Adjustable male elbow Series PIB16-G

For compressed air brakes; Brass; Cylindrical thread

Adjustable male stud branch tee Series PIB21-G

For compressed air brakes; Brass

Elbow connector Series PIB17

For compressed air brakes; Brass

T-connector Series PIB17

Elbow adapter Female Series TH17-M

For compressed air brakes; Brass; Cylindrical thread

Adjustable male stud branch tee Series PIB24-G

Nickel plated brass; Pressure Max. 80bar

Elbow connector Series PM17

Male thread; Brass; Pressure -0,87…35bar; Temperature Max. -20…100°C

Coupling plug DN 19

Nylon-PA66 ; Cylindrical thread

Swivel male elbow 45° Series PI85-360

Nickel plated brass; Cylindrical thread

L-swivel union Series SC14-N-0

Nickel plated brass; Pressure Max. 80bar

T-connector Series PM29

4-fold; Material PBT;

Multiple distributor Series PI79C

Material Aluminum; Operating pressure at -30…+80°C 16bar

Reducing T-connector Series SPEEDLINE

Brass

Y-adapter Female Series TH23-B

PBT

Straight connector Series PI13-D

1.4408; Flat sealing; Conical thread

Detachable elbow Female/male Series TH16-S-F

Stainless steel 1.4571

T-Reduction Series A-TR-71

Zinc plated steel; BSPT Thread

Straight male stud fitting Series C-GE-R-K

PTFE

Sealring Series SE

Nickel plated brass; Cylindrical thread

Swivel male elbow 45° Series PI85-360

Brass; Cylindrical thread

Elbow adapter 45° Male/female Series TH85-B

Brass; Cylindrical thread

L-swivel union Series DI14-B

Polypropylen; Cylindrical thread

Elbow adapter Female/male Series TH16-E

Zinc plated steel; Without nut and die ring

Bulkhead union elbow Series C-WSV-X

POM

T-connector Series HN26

Brass; Conical thread; Hexagon socket

Plug screw Series TH64C-B

1.4404; Conical thread

Weld-on adapter Series TH74C-Z-L

PBT

Elbow connector Series PI17-D

Brass

Elbow adapter Female thread Series TH17-B

Nickel plated brass; Conical thread

Male elbow hose nozzle Series HN61C

Plastic

Reducing T-connector Series PI29-D

Stainless steel 1.4408; Cylindrical thread; Flat sealing; Seal PTFE

Detachable hex nipple Female/male Series TH59

Stainless steel AISI 316Ti; Conical thread

Hex nipple Series TH38C-W

According to DIN 8537/20 033; Steel / Malleable cast iron zinc plated; O-ring NBR; Swivel nut; Hose nozzle

Complete fitting Series HN58

Brass; Conical thread

Reduction hex nipple Series TH38C-B

Brass

T-connector Series HN26

Cylindrical thread; Thread extended on one side

Pipe hex nipple Series TH38-L

Cylindrical thread; Internal polygon

Pipe hex nipple Series TH38-LP

Hose nozzle; Aluminum; Seal NBR; Pressure Max. 16Bar; Temperature Max. 68°C; According to A 59326 (Previous MIL - C 27487)

Male thread; Aluminum; Seal NBR; Pressure Max. 16Bar; Temperature Max. 68°C; According to A 59326 (Previous MIL - C 27487)

Hose nozzle; Aluminum; Seal NBR; Pressure Max. 16Bar; Temperature Max. 68°C; According to A 59326 (Previous MIL - C 27487)

Male thread; Zinc plated steel; Pressure -0,87...35bar; Temperature Max. 100°C

Coupling plug DN 7,2

Male thread; Zinc plated steel; Pressure -0,87...16bar; Temperature -20...100°C

Coupling plug DN 7,8(7,2)

PP; Conical thread

Male elbow Series SC16C

Polypropylen

Straight female fitting Series CF13

PFA

Straight female fitting Series CF13

Material Steel; Conical thread

Weld-on adapter Series TH74C-U-L

Non-interchangeable; Male thread; Brass; Seal NBR; Pressure -0,87...35bar; Temperature Max. 100°C

Non-interchangeable; Male thread; Brass; Seal NBR; Pressure -0,87...35bar

Coupling plug DN 7,8

Stainless steel AISI 316; Conical thread; Flat sealing PTFE

Detachable hex nipple Series TH38C-S-F

Malleable cast iron zinc plated; Conical thread

Elbow adapter Male thread/Female thread Series TH16C-M

Brass; Flat sealing

Female hose nozzle With Swivel nut Series HN82

POM

Swivel union X Series PI20-360

Cylindrical thread; Body, Locking ring And Nut PFA

Male elbow Series CF16

Malleable cast iron zinc plated; Claw distance 42mm; Seal NBR; Operating pressure Max. 10bar; Temperature -40...+95°C; Safety version

Claw coupling According to DIN 3238 Series C042-SS

PVDF; Cylindrical thread

Straight male stud fitting Series CF12

Material Polypropylen

Female elbow Series CF17

PVDF

Elbow connector Series CF17

According to DIN EN 14420-7 Form FF; Male thread; Stainless steel AISI 316; Pressure Max. 16Bar; Temperature -40…+95°C

Male thread; Nickel plated brass/Steel nickel plated; Seal NBR; Pressure -0,87...35bar; Temperature Max. 100°C

Coupling For shut-off coupling plug DN 10

Male thread; Steel nickel plated; Pressure -0,87...35bar; Temperature Max. 100°C

Coupling plug Shut-off DN 10

According to DIN EN 14420-7 Form AF; Female thread; Stainless steel AISI 316; Thread seal PTFE; Pressure Max. 16Bar; Temperature -40…+95°C

According to DIN EN 14420-7 Form DC; End cap; Stainless steel AISI 316; Seal NBR; Pressure Max. 16Bar; Temperature -40…95°C

According to DIN EN 14420-7 Form DF; Female thread; Stainless steel AISI 316; Seal NBR; Thread seal PTFE; Pressure Max. 16Bar; Temperature -40…+95°C

According to DIN EN 14420-7 Form BF; Male thread; Stainless steel AISI 316; Seal NBR; Pressure Max. 16Bar; Temperature -40…+95°C

According to MIL-C-27487; Hose nozzle; Stainless steel AISI 316; Seal NBR; Pressure Max. 16Bar; Temperature -46…+95°C

According to MIL - C 27487; Hose nozzle; Stainless steel AISI 316; Seal NBR; Pressure Max. 16Bar; Temperature -46…+95°C

ISO 6150 C-10; Safety coupling; Female thread; 360° Turnable; Anodized aluminum/Nickel plated brass; Seal NBR; Pressure 0...12bar; Temperature -20…80°C

ISO 6150 C-10; Safety coupling; Male thread; 360° Turnable; Anodized aluminum/Nickel plated brass; Seal NBR; Pressure 0...12bar; Temperature -20…80°C

ISO 6150 C-10; Male thread; Zinc plated steel; Pressure 0...12bar; Temperature -20…80°C

Coupling plug DN 5,5

ISO 6150 B-12; Safety coupling; Male thread; 360° Turnable; Anodized aluminum/Nickel plated brass; Seal NBR; Pressure 0...16bar; Temperature -20…80°C

ISO 6150 B-12; Safety coupling; Female thread; 360° Turnable; Anodized aluminum/Nickel plated brass; Seal NBR; Pressure 0...16bar; Temperature -20…80°C

ISO 6150 B-12; Male thread; Zinc plated steel; Pressure 0...16bar; Temperature -20…80°C

Coupling plug DN 5,5

ISO 6150 C-14; Male thread; Zinc plated steel; Pressure 0...10bar; Temperature -20…80°C

ISO 6150 C-14; Hose nozzle; Zinc plated steel; Pressure 0...10bar; Temperature -20…80°C

POM; Cylindrical thread

Male elbow Series PI16-O

Compatible with ATLAS COPCO QIC10; Female thread; Nickel plated brass/Zinc plated steel; Seal NBR; Pressure -0,87...35bar; Temperature -20...100°C

Stainless steel 1.4571; Pressure 16bar

Female to female coupling Series TH13

ISO 6150 B-15; Safety coupling; Male thread; 360° Turnable; Anodized aluminum/Nickel plated brass; Seal NBR; Pressure 0...12bar; Temperature -20…80°C
