Swing check valve CM-2466E-100

Price:

22.560,00 din.
Swing check valve Series CM-2466/CM-2424 Store
  1. Products
  2. Armatures
  3. Pressure regulators, safety valves and accessories
  4. Other materiales - A07
  5. Swing check valve Series CM-2466/CM-2424
  6. CM-2466E-100
Swing check valve CM-2466E-100
Swing check valve CM-2466T-100
Swing check valve CM-2466T-100
27.096,00 din.
27.096,00 din.
Swing check valve CM-2466V-125
Swing check valve CM-2466V-125
25.239,00 din.
25.239,00 din.

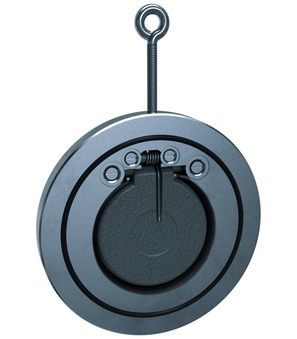

Swing check valve CM-2466E-100

Swing check valve Series CM-2466/CM-2424; Wafer type; Reset by spring; Body Zinc plated steel; DN 100mm; Length 18mm; Nominal flange pressure PN10/16; Seal EPDM; Medium temperature -10…130°C; Flap material 1.4401

Intrastat No.: 84813091
Country of origin: Italy
Weight: 2.4 Kg
Short Itemnumber:CM2466E100
https://www.stasto.rs/web/image/product.template/80052/image_1920?unique=c891e91

Swing check valve Series CM-2466/CM-2424; Wafer type; Reset by spring; Body Zinc plated steel; DN 100mm; Length 18mm; Nominal flange pressure PN10/16; Seal EPDM; Medium temperature -10…130°C; Flap material 1.4401

22.560,00 din. 22560.0 RSD 22.560,00 din.

cena na zahtev

  • DN
  • Length
  • Flange
  • Seal
  • Seal
  • Flap material
  • Medium temperature

This combination does not exist.

Availability:
Contact Us
dimension
DN 100 mm
Length 18 mm
Flange PN10/16
materials
Seal EPDM, EPDM
Flap material 1.4401
characteristics
Medium temperature -10...+130 °C
No spare parts are available for this product.
