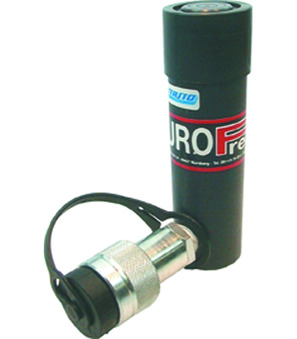

Cylinder Single acting CMI-10N200

Cylinder Single acting CMI-10N200

Cylinder Single acting Series CMI; With spring return; Industrial type; Operating pressure Max. 700bar; For any mounting position; Threaded cylinder tube, Mounting holes at the bottom; Connection 3/8" NPT Female thread; Cylinder from CMI-50N100 on will be supplied with handle; Push force 111kN; Stroke 200mm; Oil capacity 318ccm; Tube thread M60x1,5; Base thread M8

Zylinder einfachwirkend Serie CMI
Intrastat No.: 84139100
Country of origin: Italy
Weight: 5.02 Kg
Short Itemnumber: CMI10N200

Scope of delivery

cylinder, high-pressure female coupling, dust protection
https://www.stasto.rs/web/image/product.template/21402/image_1920?unique=294f461

Cylinder Single acting Series CMI; With spring return; Industrial type; Operating pressure Max. 700bar; For any mounting position; Threaded cylinder tube, Mounting holes at the bottom; Connection 3/8" NPT Female thread; Cylinder from CMI-50N100 on will be supplied with handle; Push force 111kN; Stroke 200mm; Oil capacity 318ccm; Tube thread M60x1,5; Base thread M8

999.999,00 din. 999999.0 RSD 999.999,00 din.

cena na zahtev

  • Stroke
  • Tube thread
  • Base thread
  • Push force
  • Oil capacity

This combination does not exist.

Availability:
Contact Us

Share

dimension
Stroke 200 mm
Tube thread M60x1,5
Base thread M8
pressure
Push force 111 kN
characteristics
Oil capacity 318 ccm

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
1
Data sheet_Cylinder Single acting Series CMI_EN.pdf
Download
No spare parts are available for this product.
